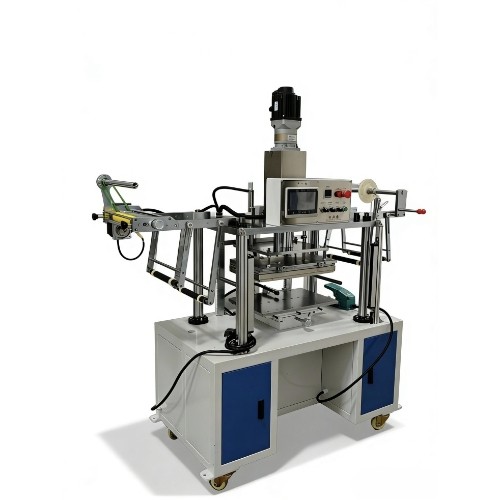

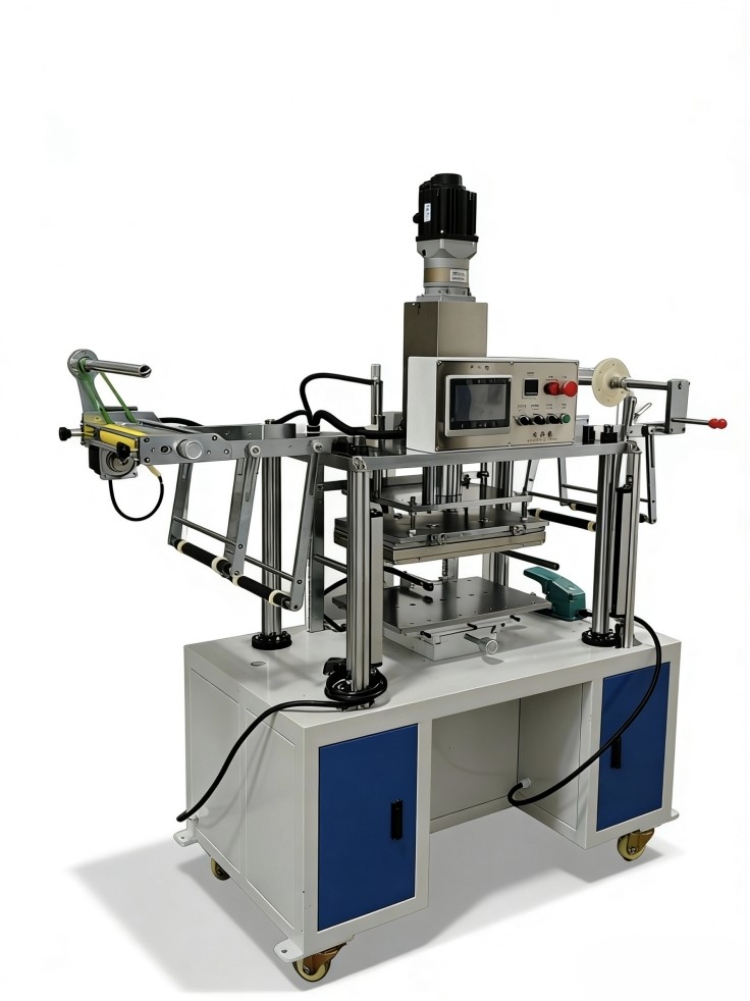

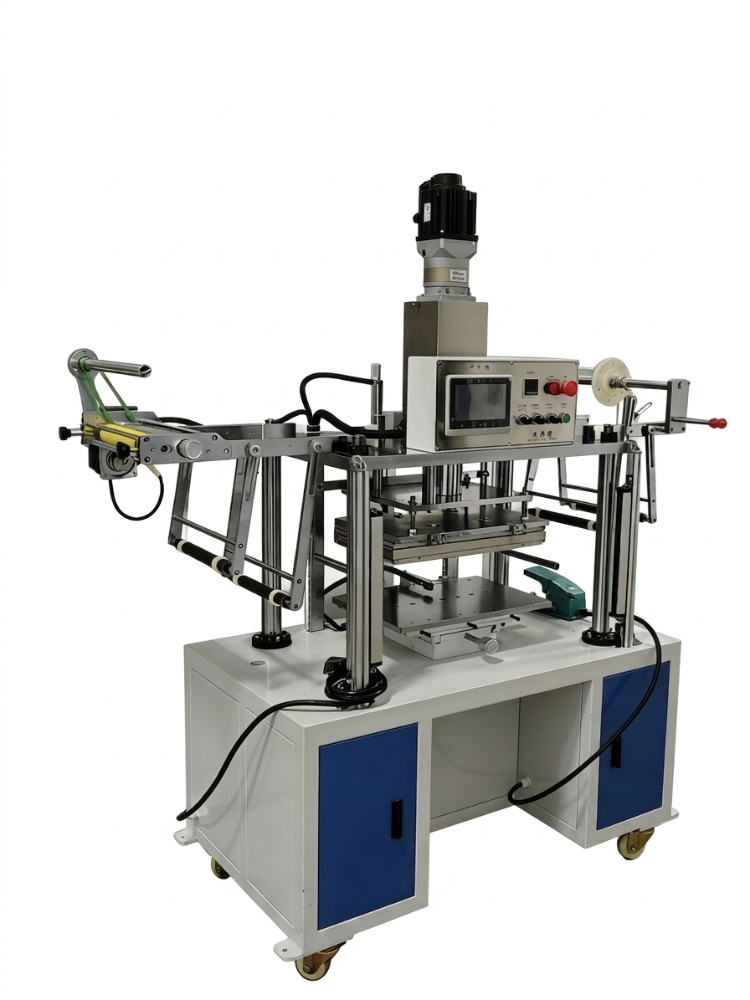

Servo Four-Column Hot Stamping Machine

Model Number: EASY-1T
Product price: US$:negotiated
Category: Heat Transfer Machine
Views: 9

Product Description：Suitable for products requiring high-pressure and large-area hot stamping.

PRODUCT DETAIL

Product name:Servo Four-Column Hot Stamping Machine

Model Number: EASY-1T

Specification:
1. Machine Name: Servo Four-Column Hot Stamping Machine
2. Model: EASY-1T
3. Max. Printing Area: 300*200mm
4. Max. Processing: 100mm
5. Control System: PLC + HMI; 1300W servo motor + planetary reducer + precision ball screw to provide stamping pressure.
6. Special Features: Equipped with hot stamping foil perforation monitoring function
7. Typical Applications: Suitable for products requiring high-pressure and large-area hot stamping.
8. Power Supply/Total: 380V / 50Hz / 3000W
9. Air Pressure: /

10. Dimensions/Weight: L 1.4 × W 1.0 × H 2.0m / 500kg
