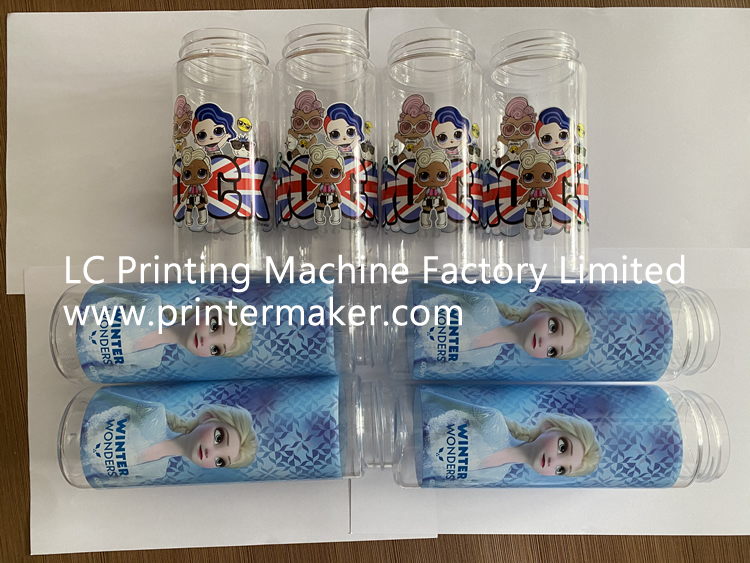

  • Product Description:automatic heat transfer machine on PET bottles, Plastic bottles automatic Heat Transfer machines, Sports bottles automatic heat transfer machines, promotional bottles automatic heat transfer machines,
  • PRODUCT DETAIL
  • Video
  • Packing Photo

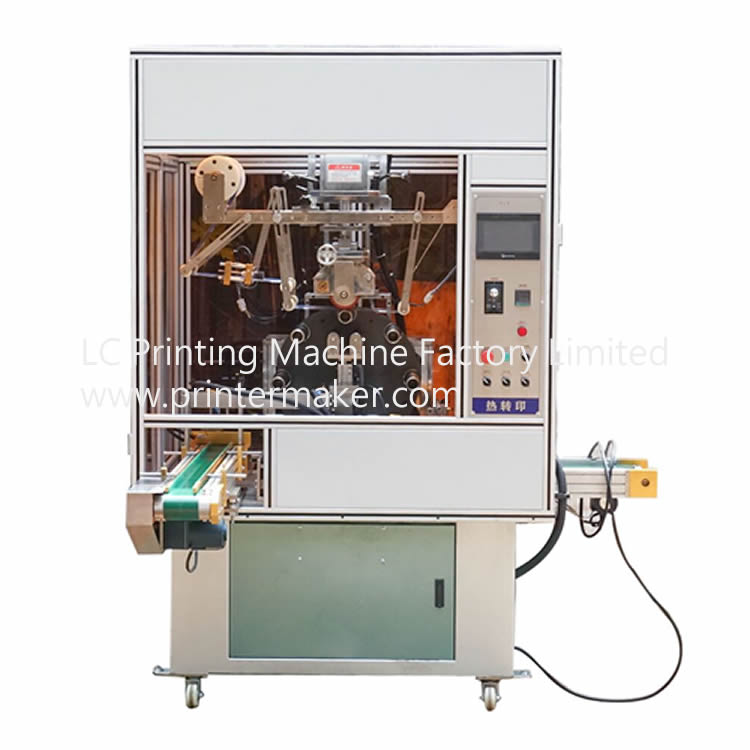

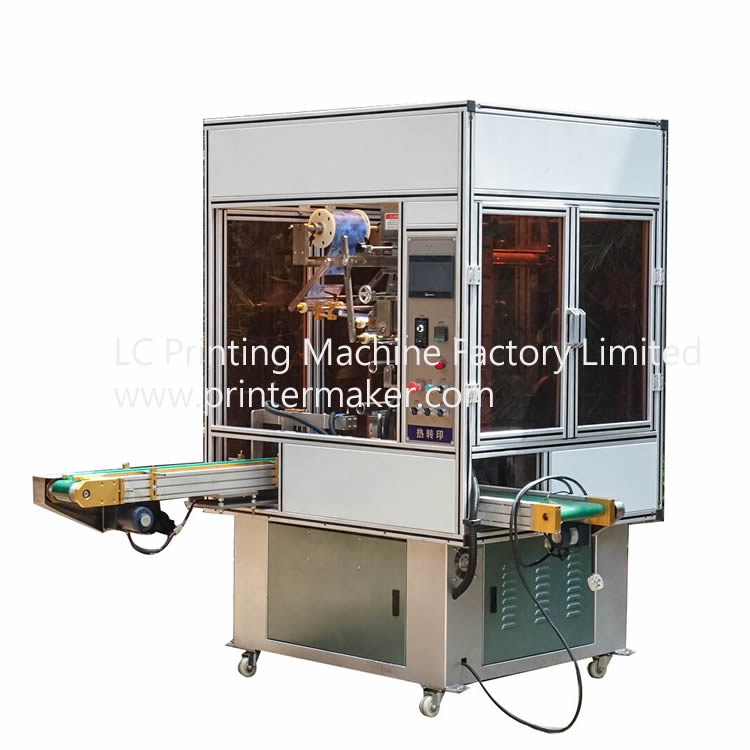

Product name:Automatic Heat Transfer Machine on Plastic PET Bottles

Model Number: AHT-250

Machine Parameters:
1:Maximum stamping diameter: Ф 20 mm-120 mm
2:Maximum printing length: 20 MM-240 mm
3: Stroke of stamping head: 80mm (adjustable 50mm)
4: Hot stamping temperature: room temperature 0 ℃ ~ 300 ℃
5: Maximum workpiece diameter: 80mm
6: Maximum stamping speed: 15-20 pieces / min
7: Rated voltage: 220v60 / 50Hz
8: Hot stamping pressure range: 250-350kg
9: Overall power: 4000W
10: Heating power: 2000W
11: Gas pressure: 5-7bar
12: Machine size: 1800 * 1400 * 2100mm
13: Machine weight: 1200kg
Machine Features:
(1) Computer control, simple human-machine interface operation
(2) Hot stamping pressure, temperature, speed adjustable
(3) Built-in self counting and automatic positioning
(4) Automatic foil feeding, receiving and adjustable, no foil intermittent stop
(5) Adjustable height and wide range of stamping head

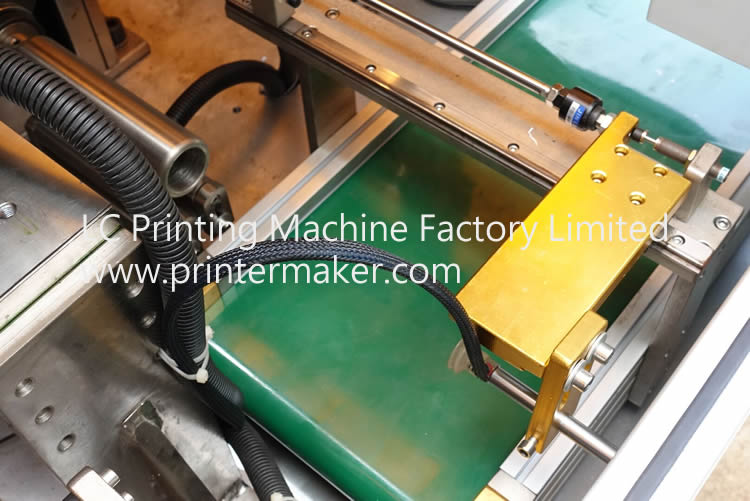

(6) Feeding with conveyor belt and automatic output of products
Brand of equipment accessories
Machine Configeration:
Serial No. accessory name brand origin
1. Bearing continent
2. Temperature control table 3A joint venture
3. Magnetic powder tension, Lichang continent
4. Main motor Chengji continent
5. PLC delta Taiwan
6. Frequency converter Eureka
7. Switch button Schneider France
8. Photoelectric switch Yangming Taiwan
9. Film release motor, rubber wheel motor, precision grinding mainland
10. Lifting cylinder 3 and Korea
11. Solenoid valve Jingong Taiwan
12 man machine alpha Shenzhen
13. The joint venture of switching power supply

14. Film closing stepping motor Sanyo joint venture
