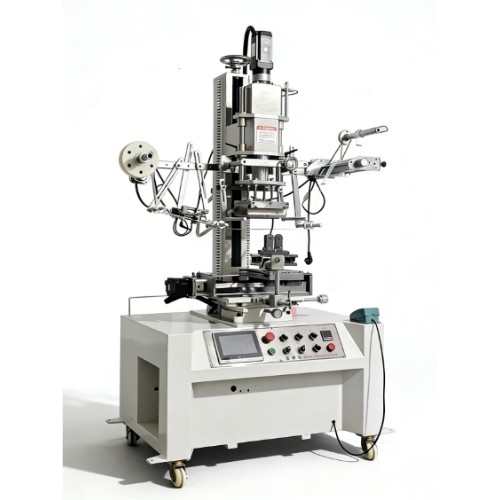

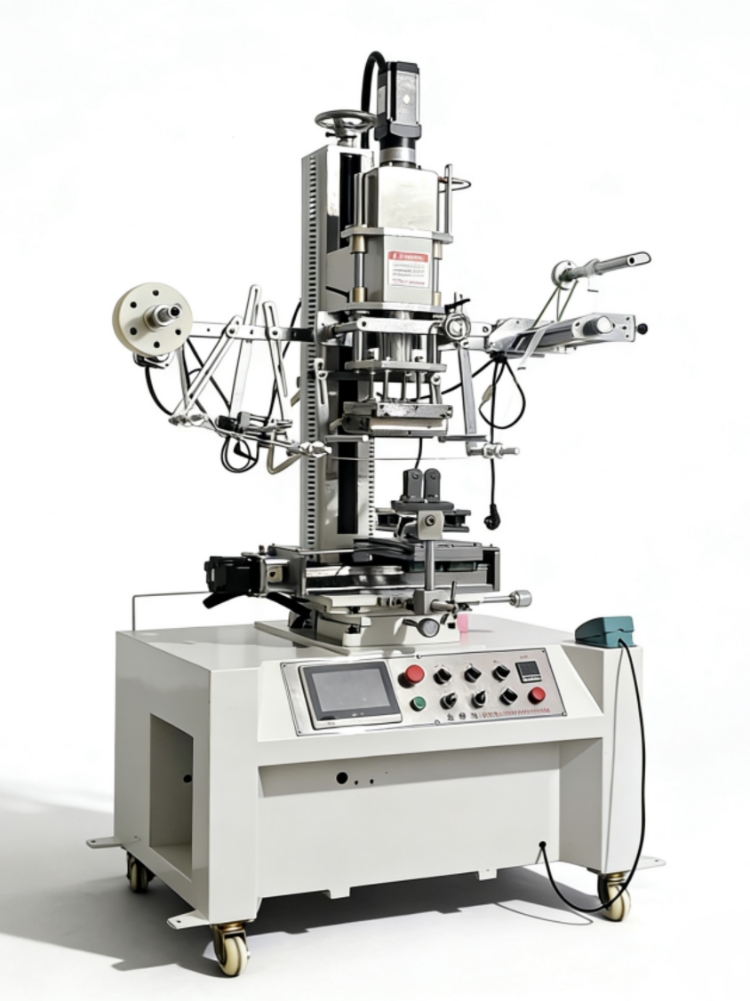

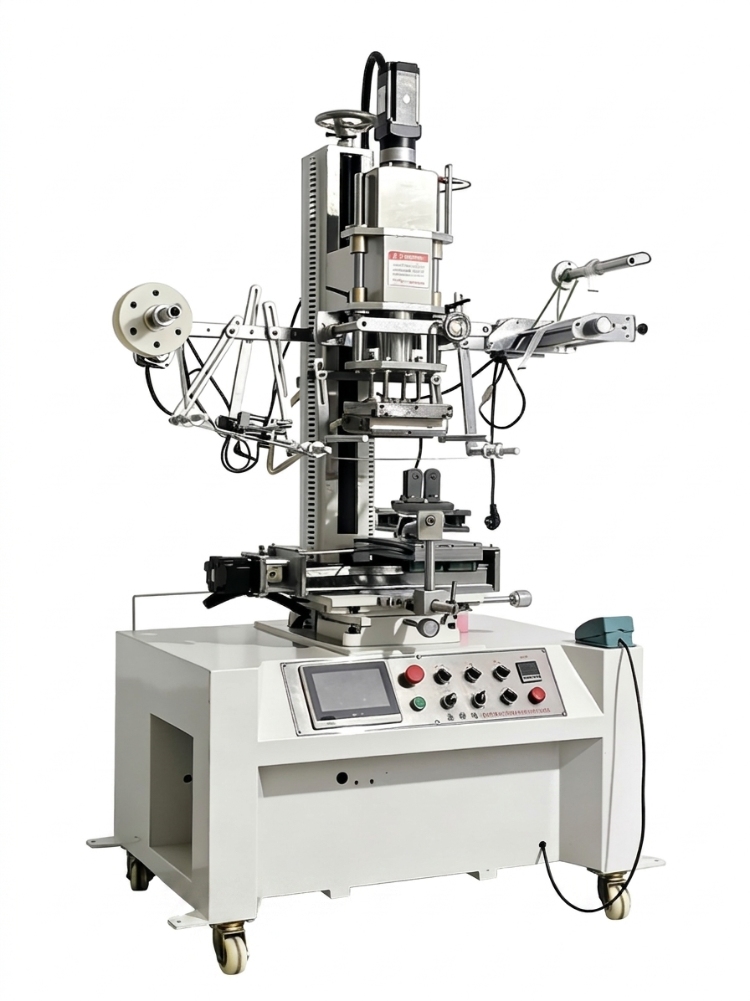

Servo Dual-Axis Round & Curved Hot Stamping Machine on Conical Shape

Model NumberEASY-300CT2
Product PriceUS$: negotiated
CategoryHeat Transfer Machine
Views534

Product Description

Dual-axis coordinated positioning with servo motor, equipped with planetary reducer and precision screw to provide accurate and adjustable pressure.For products requiring high-precision curved hot sta

Specification:
1. Machine Name: Servo Dual-Axis Round & Curved Hot Stamping Machine on Conical Shape
2. Model: EASY-300CT2
3. Max. Printing Area: 240*160mm
4. Max. Processing: 80mm
5. Control System: PLC + HMI
6. Special Features: Dual-axis coordinated positioning with servo motor, equipped with planetary reducer and precision screw to provide accurate and adjustable pressure.
7. Typical Applications: For products requiring high-precision curved hot stamping, capable of stamping linear patterns such as LOGOs, letters and phrases.
8. Power Supply/Total: 220V / 50Hz / 3000W
9. Air Pressure: 0.4 – 0.6 MPa (Can inflate the bottle to increase transfer pressure)

10. Dimensions/Weight: L 1.4 × W 0.9 × H 2.0 m / 400kg
