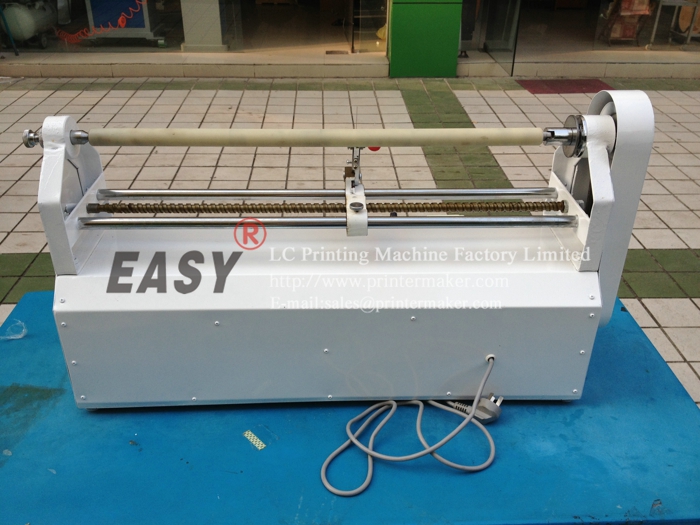

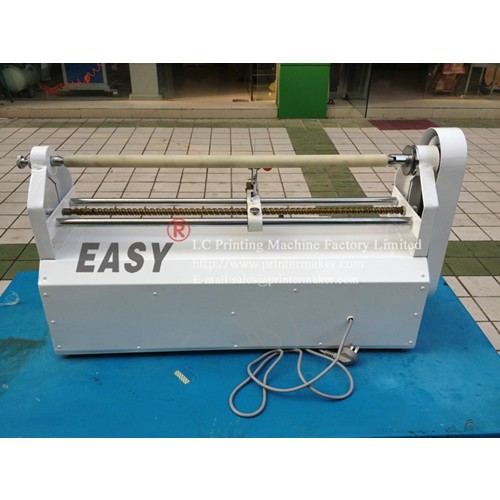

Product name:Hot Stamping Foil Paper Cutter

Model Number: FCM-680/1300/1400/1500

Description:

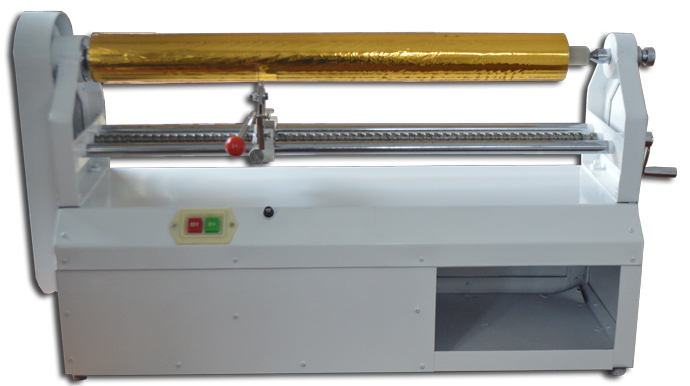

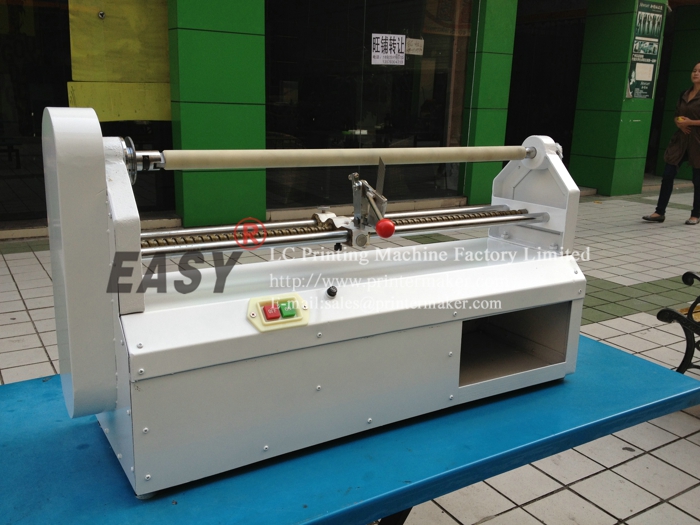

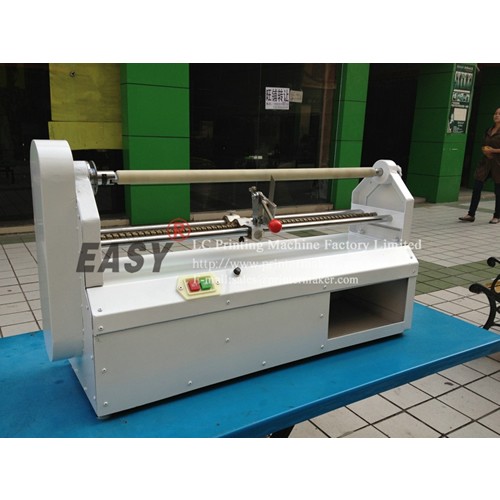

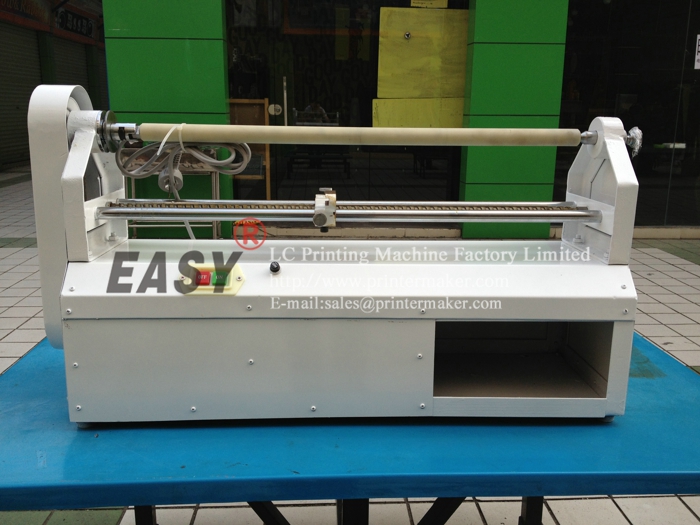

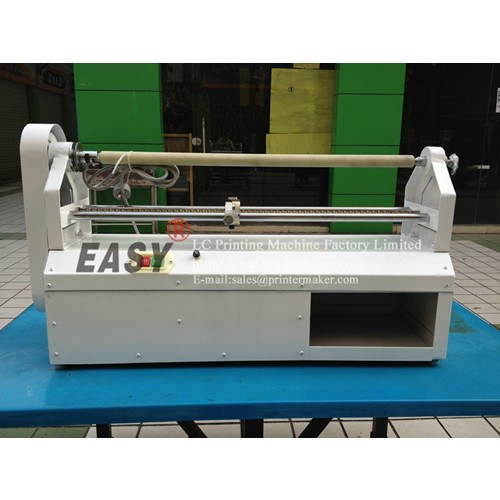

Hot Stamping Foil Paper Cutter
Parameters:
FCM-680
1: Max.Cutting Length: 680mm
2: Max.Out Diameter:100mm
3: Diameter of foil core:Φ25mm-Φ27mm
4: Motor Power:370W,220V

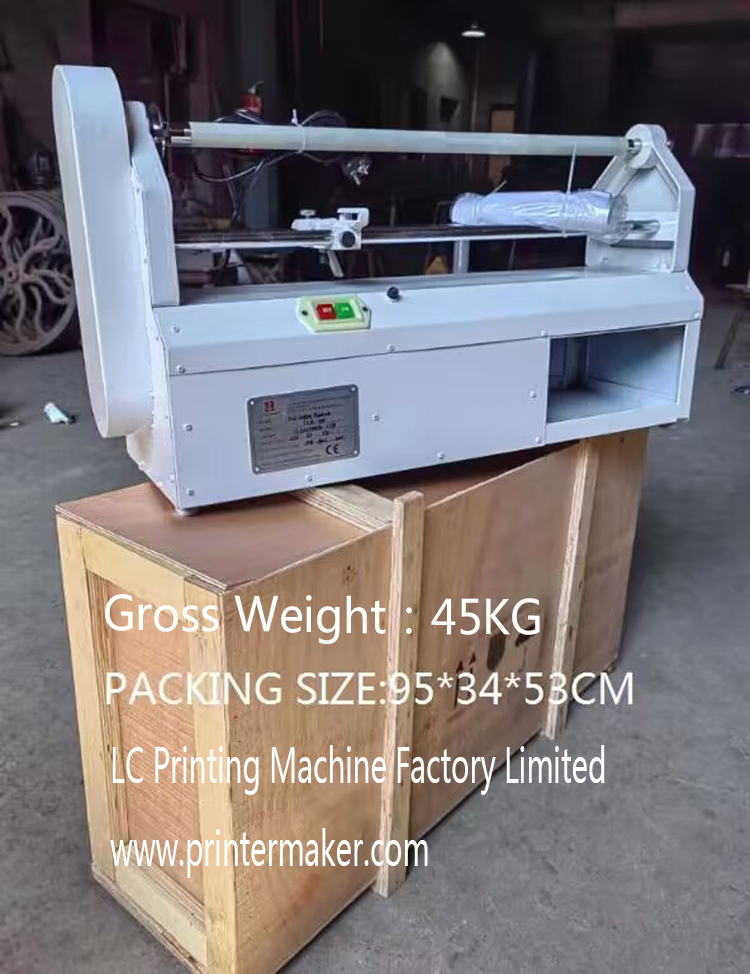

5: Machine Weight(Net/Gross):45kg/55kg
6: Machine dimension:   88*26*45CM
7:  Packing Dimentsion: 95*34*53CM
FCM-1300
1: Max.Cutting Length: 1300mm
2: Max.Out Diameter:100mm
3: Diameter of foil core:Φ25mm-Φ27mm
4: Motor Power:470W,220V
5: Machine Weight(Net/Gross):85kg/110kg
6: Machine dimension:   130*26*45CM
7:  Packing Dimentsion: 140*34*53CM
FCM-1500
1: Max.Cutting Length: 1500mm
2: Max.Out Diameter:100mm
3: Diameter of foil core:Φ25mm-Φ27mm
4: Motor Power:570W,220V
5: Machine Weight(Net/Gross):100kg/120kg
6: Machine dimension:   150*26*45CM
7:  Packing Dimentsion: 160*34*53CM
Product Description
Features
It could cut the foil paper into different small sizes with high efficiency but low waste.

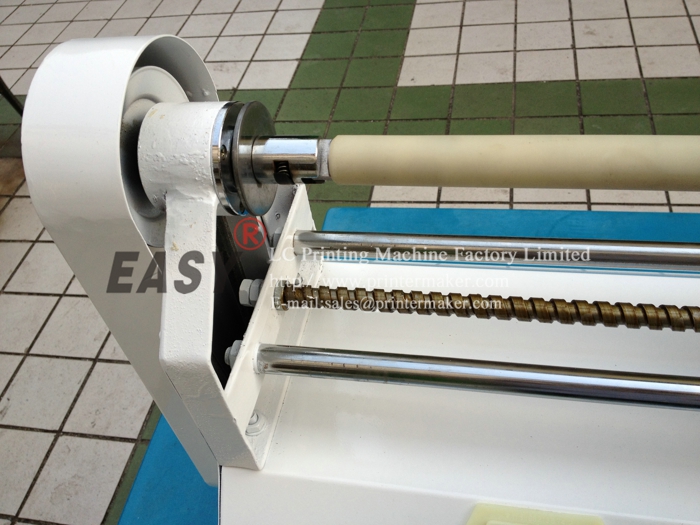

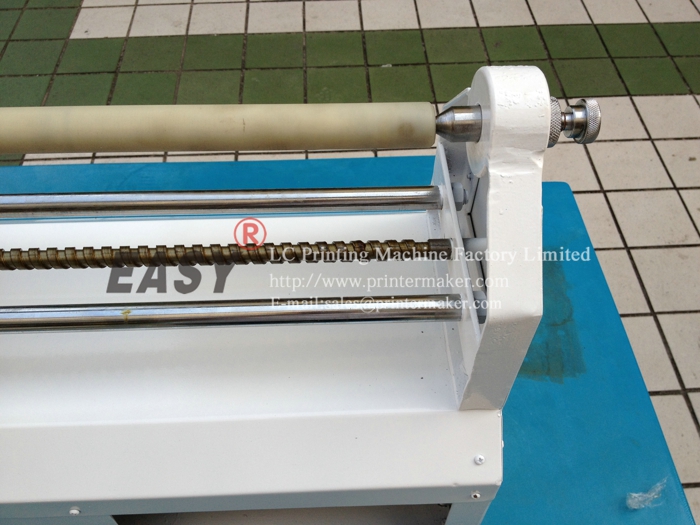

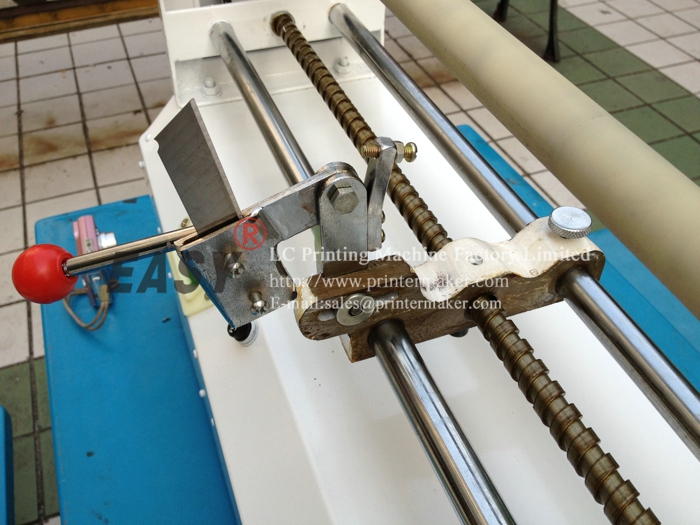

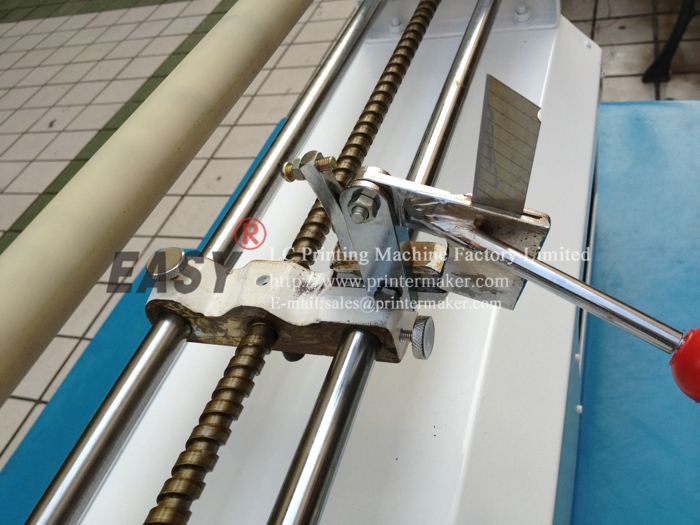

It is with easy design and adjustment. It could fix automatic by the inside diameter, the products diameter could adjustment, the length changed by the screw rod moving, accurate and reliable.
Cutting more precisely, the thinnest could be 2mm.

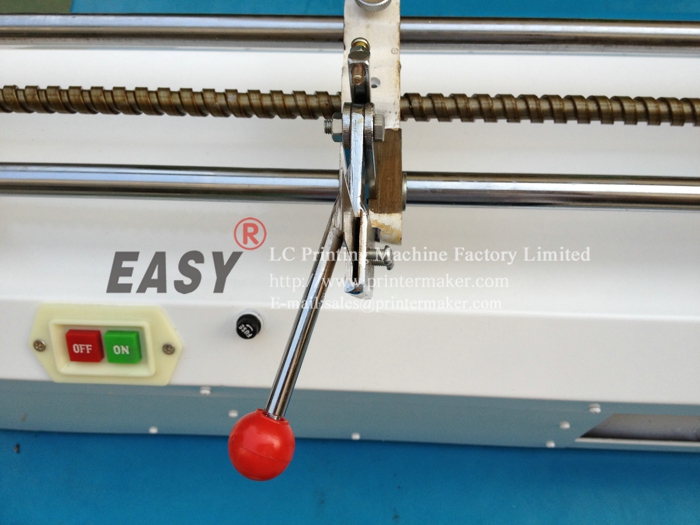

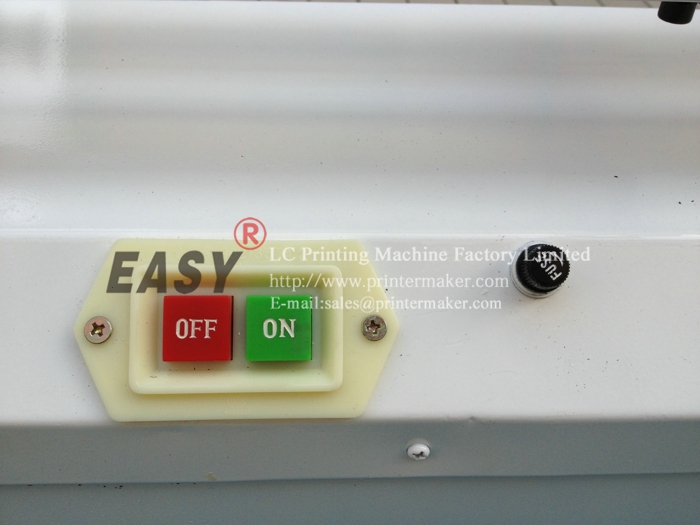

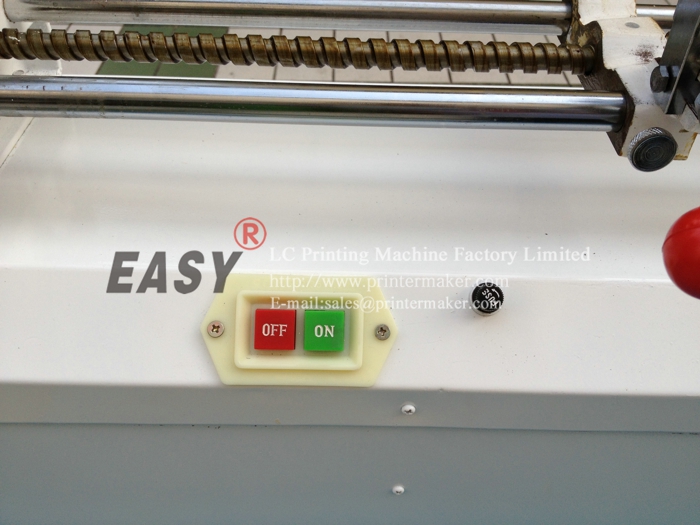

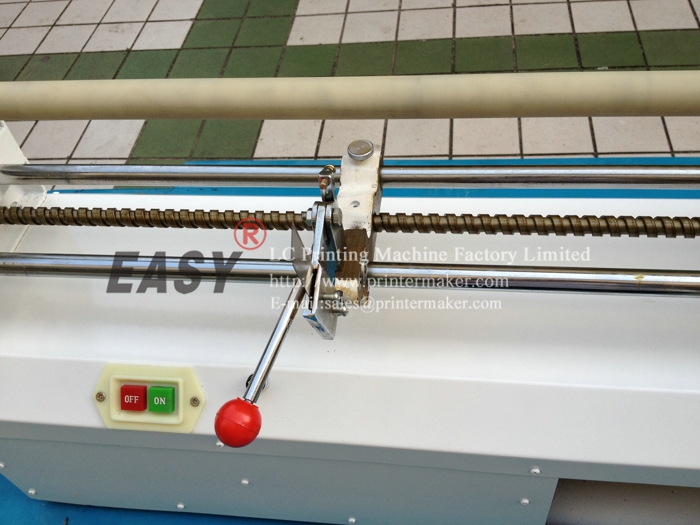

Electric control, fast and efficient, cutting edge smoothly, good effect
Also apply to gold foil paper, printing ribbons, thermal transfer ribbons and other reel diameter size range within 25-27mm non-film products.

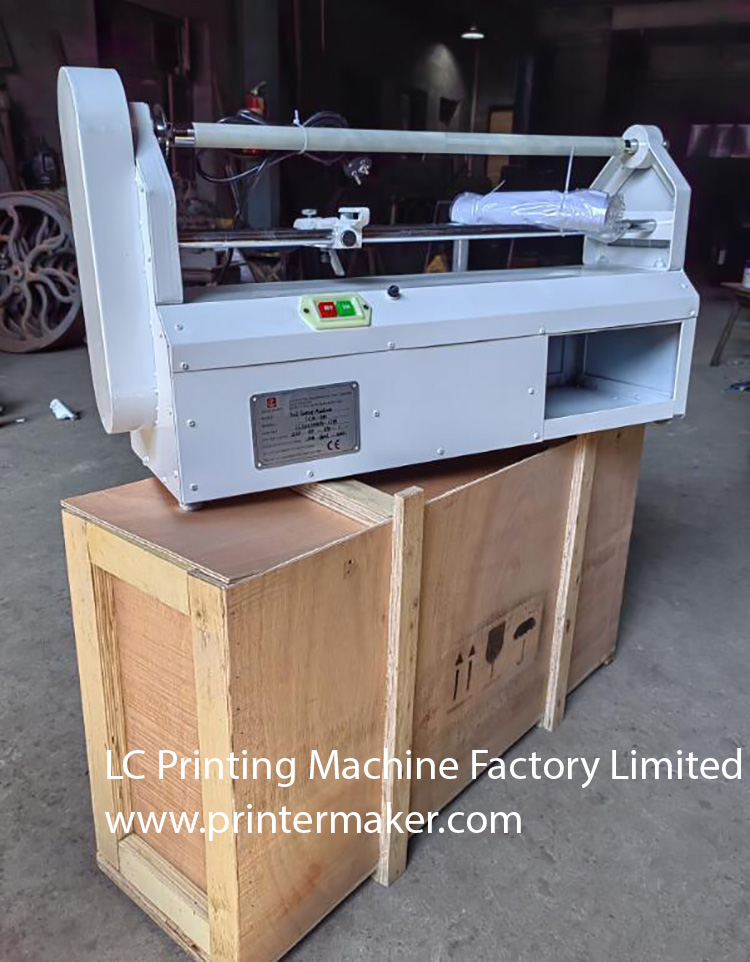

Good packaging: It is well packaged with waterproof membrane at first, then well fixed.

Aluminum Foil cutting machine, electrochemical aluminum cutting machine is disigned for the foil cutting into different small size peices.
