LC Printing Machine Factory Limited

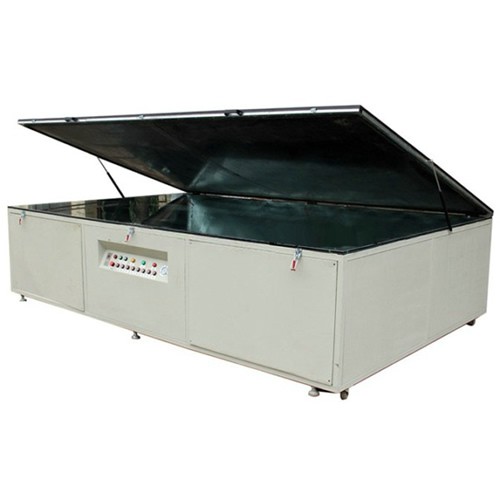

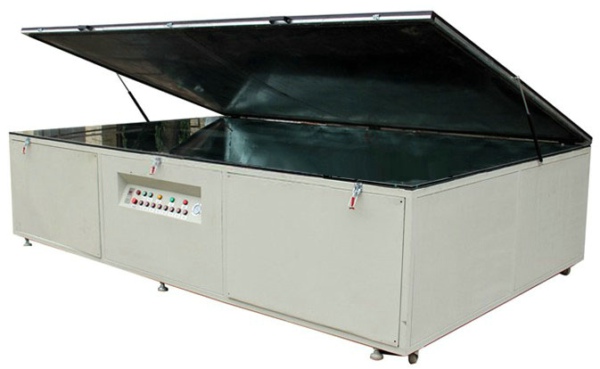

Screen Printing Exposure Machine

  • Model Number: M-3000SB
  • Category: Plate Making Equipment
  • Views: 341
  • Product Description:Screen Printing Exposure Machine
  • PRODUCT DETAIL

Product name:Screen Printing Exposure Machine

Model Number: M-3000SB

Description:
Screen Printing Exposure Machine
Specifications:
large size exposure machine
Large size exposure area is 1500*3000mm or according to customer's requirements.
Parameters:
Exposure size: 1500*3000mm
Appearance; 1600*3200*1200
Power: 380V/50HZ
Lamp:Iodine gallium light(2KW,6PCS)
Tolerance:0.05mm
Exposure type: Single side
Cooling system: Air-cooling system
Control Systems:
Automatic Exposure times Control System
Automatic Flash Control System
Vacuum Pressure System
Air Cooling System
Features:
1.Electric shutter control system, advanced touch type man-machine interface control mode
is more convenient and quickly. Simultaneously provides the more perfect product
management system to get more precision and good exposure effection.
2.Iodine gallium light, 2KW/unit and 6pcs for air-cooling system.
3.The position of the exposing lamp can be freely adjusted in accordance to the printing
frame sizes.
4.The machine is made of PP plate, which is heat-resistant, corrosion-resistant and
strain-resistant.
5.Timely service, one year warranty, life-long maintenance
6.Provide free training for customers in any places.
7.Non-standard sizes can be customized according to different business requirements
Applications:
Mainly used for processing elevator board, huge metal nameplate and many others

decoration plates of photoengraving exposing and screen printing exposure works

Screen Printing Exposure Machine
