LED UV Exposure Unit For Pad Plate

  • LED UV Exposure Unit For Pad Plate
  • LED UV Exposure Unit For Pad Plate
  • LED UV Exposure Unit For Pad Plate
  • LED UV Exposure Unit For Pad Plate
  • Model Number: M-280SB
  • Category: Plate Making Equipment
  • Views: 289
  • Product Description:LED UV Exposure Unit For Pad Plate
  • PRODUCT DETAIL
Description:

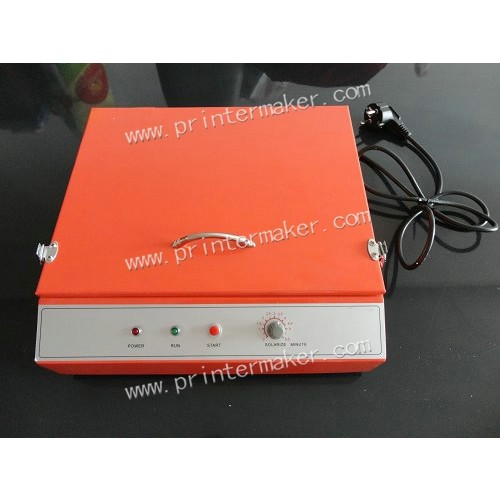

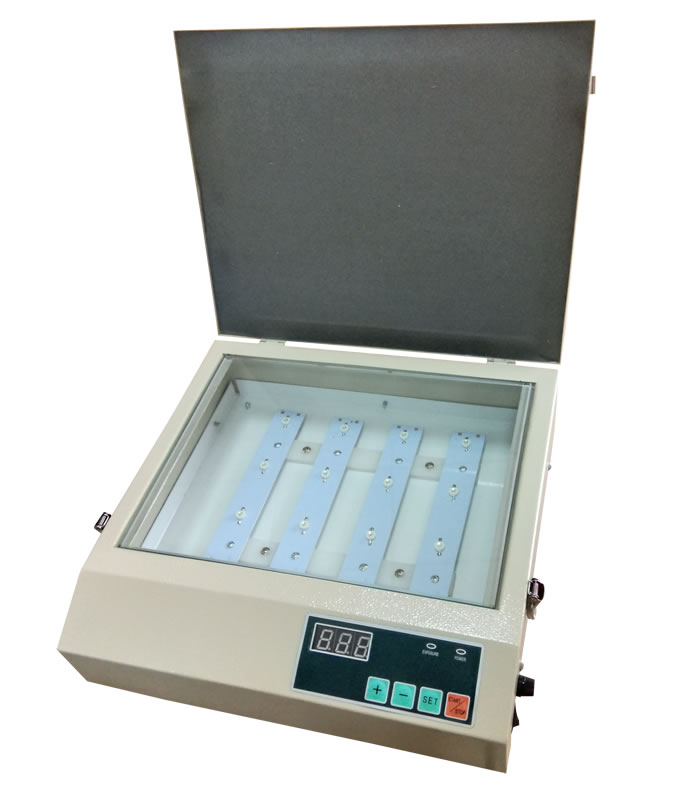

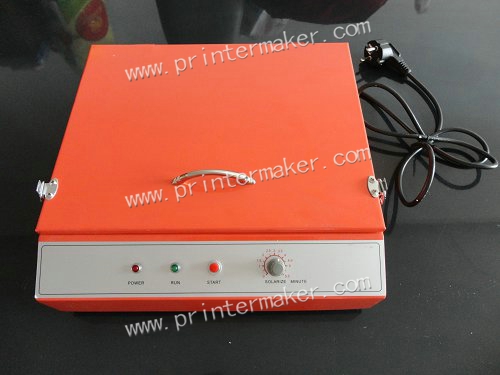

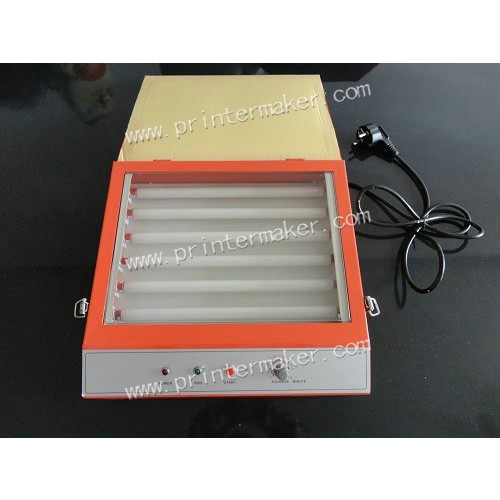

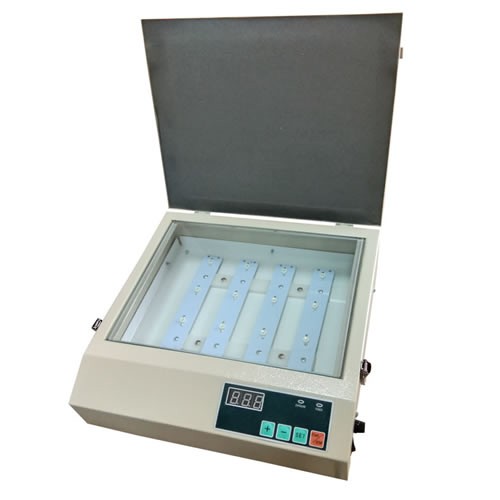

UV Exposure Unit For Pad plate
A low cost and convenient exposure unit for pad stencil exposure. Eeposure area is 180×280mm; It can be applied for thick steel plate, thin steel plate and photo-polymer plate image .

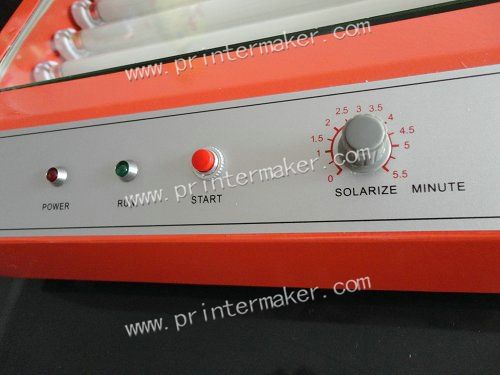

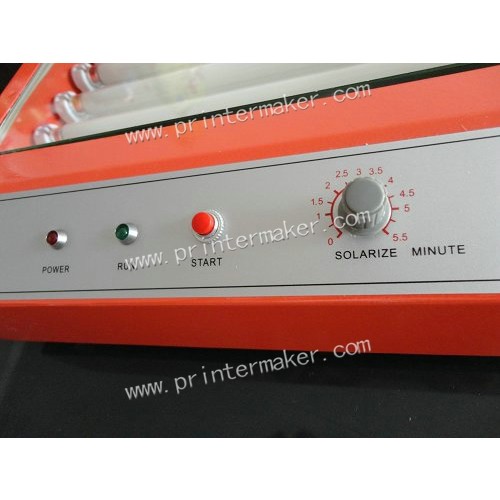

It is not suitable for exposuring on screen plate because there is no vacuum device and rubber clothes; The built-in digital timer provides excellent exposure timing control.
UV Exposure Machine
Working table type:5mm High transmittance Glass
Lamp cover:Stainless steel reflection cover
Max Exposure Area:180*280mm
Lamp wattage:220V, 8W*6
Lamp Distance:30mm
Plate type:pad plate, ZN-Plate, Cooperplate, Polymer plate
Price Terms:FOB GuangZhou
Payment Terms:T/T. LC
Packing:Wooden case
Lead Time:Within 3 days
Standards Certificate:ISO9001-2000
Power Supply:220v-50HZ-1 PHASE
Colour Painted:White
Specifications:
1. Exposure area: 180×280mm
2. Dimension: 360×370×100mm
3. Weight: 8kg
4. Lamp wattage: 8w×6
5. Lamp power: 60w/cm.
6. Glass Siz: 200×280mm.
7. Exposure time: 0-5.5Min.
Advantages:
1. Small bulk and low price;
2. Fit exposure for pad plate.
3. Light weight and easy to take.
Package List:
Package dimension:370×360×100MM;
Gross weight: 10KG
Ship Date:1.By sea.
within 30 days after receive T/T .
2.By air.

within 6 days after receive T/T.
