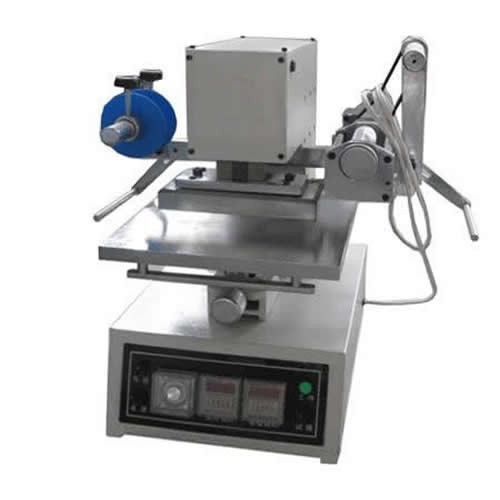

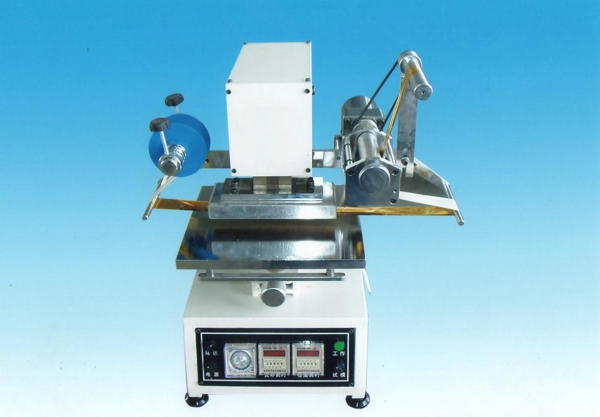

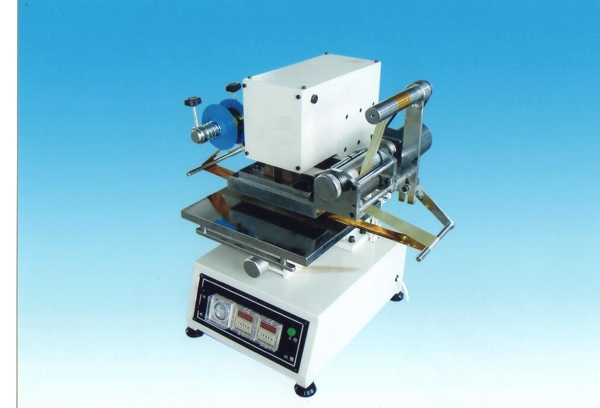

Motor-Drive Flat Hot Stamping Machine

  • Model Number: HST-80200
  • Category: Hot Stamping Machine
  • Views: 290
  • Product Description:Motor-Drive Flat Hot Stamping Machine
  • PRODUCT DETAIL

Product name:Motor-Drive Flat Hot Stamping Machine

Model Number: HST-80200

Description:
Motor-Drive Flat Hot Stamping Machine
Stamping Head drive:Motor-drive
Foil collecting method:Morot-drive , Collecting time adjustable
Temperature controlling:Heating tube heat up,Automatically temperature controlling,temperature free setting
Size of stamping plate and table:80×200mm/ 250×280mm.
Press adjustment way:Up-down of working table
Working table:Micro-adjustment device。
Usage:Paper Gilding, Leather Impression,Woodware Baking,Paper Concave-convex embossing, Cloth hot stamping, Plastics Bronzing ,Glass and metal Heat transfer
Price Terms︰ FOB GuangZhou
Payment Terms︰ TT/LC
Packing︰ Wooden case
Lead Time︰ Within 5 days
Standards Certificate︰ CE
Usage︰ The more popular models in the plane Bronzing Machine, widely used in the leather, footwear, gifts, toys, electronics, household appliances, fabrication and other industries. Table size 250 × 280mm, the size of the stamping board 80 × 200mm;
Table type of operation, small footprint, simple operation, fast, and easy for version;
In addition to hand-pick and place workpiece, and other process automatically: automatic rolls, automatic temperature control, automatic hot foil stamping;
Suitable for painting metal surfaces, wood surfaces, electronic products, household appliances, stationery, cosmetics packaging, lenses, hotel supplies, office supplies LOGO bronzing processing,Pure electric control, no compressed air, run faster.
Technical Parameter︰ HST-80200
1.Size of stamping plate:80×200mm;
2.Stamping height adjustable range:35mm;
3.Size of working table: 280×250mm;
4.Stamping temperature adjustable range:0-280;
5.Max. stamping pressure:800kgf
6.Max. stamping speed:1300pcs/hr
7.Heat Wattage:600W
8.Stamping foil pulling length: 250 mm.
HST-150200
1.Size of stamping plate:150×200mm;
2.Stamping height adjustable range:35mm;
3.Size of working table: 280×250mm;
4.Stamping temperature adjustable range:0-280;
5.Max. stamping pressure:800kgf
6.Max. stamping speed:1300pcs/hr
7.Heat Wattage:600W
8.Stamping foil pulling length: 250 mm.
Production Advantage ︰
1.Table can be pulled into and pulled out the pick and place of convenience products;
2.Table can be up and down, around, before and after the precision adjustment, to facilitate the adjustment of the precise location of the gilt;
3. Table lifting screw adjustment, simple and convenient;
4 Relays for process control, and stable operation, easy maintenance;
5 The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control;
6 leveraged structure pressure design, the pressure is uniform and strong;
7. The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment;
8 Motor to control the delivery of the gold foil paper, Feeding length can be flexibly adjusted according to the size of the stamping area;
9 Using high strength steel, gilt plate and table, has a very high flatness;
10. Heating tube for heating, heat supply is stable, easy to replace.
11. The machine adopts electric control, need to provide compressed air, and cost savings, run faster.
Packaging Parameter︰ Package size: 550*550*500mm;
Gross weight: 95kg.

CBM: 0.151

Motor-Drive Flat Hot Stamping MachineMotor-Drive Flat Hot Stamping Machine
