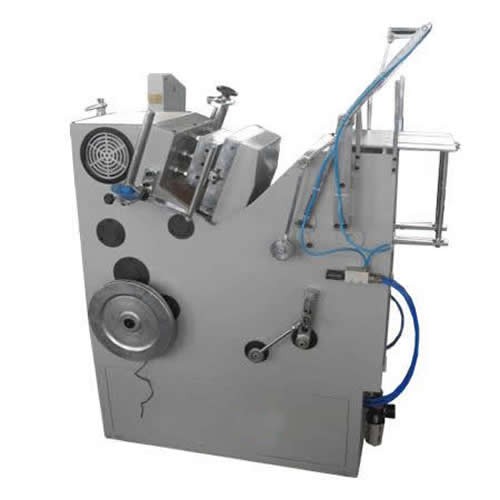

Automatic Card Hot Stamping Machine

  • Automatic Card Hot Stamping Machine
  • Automatic Card Hot Stamping Machine
  • Automatic Card Hot Stamping Machine
  • Model Number: AC150
  • Category: Hot Stamping Machine
  • Views: 347
  • Product Description:Automatic Card Hot Stamping Machine
  • PRODUCT DETAIL
  • Video

Product name:Automatic Card Hot Stamping Machine

Model Number: AC150

Description:
Automatic Card Hot Stamping Machine
Power Supply︰ 220V/110V/50HZ/60HZ/1-PHASE
Colour Painted ︰ Black
Specifications︰
1. Total consume Wattage: 1500W;
2. Stamping temperature Rnange:20∼300℃;
3. Compress air Pressure﹕5-8Bbar;
4. Products Diameter:﹕150×200mma
5. Max stamping Speed:2000-3000pcs/hr
6. Outer dimension: 1120×780×1500mm;
7. Net weight(kg) : 280
Advantages︰
1. Vertical Pression design and stabilization Pression;
2. Capable of adjusting the stamping pressure, the temperature and the speed;
3. Automatically counter available;
4. Automatic back-and-front worktable ensures safe and quick operation;
5. Worktable capable of slight adjustment of back-and-front, left-and-right and rotation;
6. Automatic foil feeding and rolling with adjustable function;
7. High precision sensor available for foils feeding, ensures good registration;
8. Safe protection device installed。
Machine Fittings︰
1. Name card silicon plate 1 pc
2. High temperature paper1 inch;
3. Stamping foil 1 roller;
4. Tool box 1 case;
5. English struction 1 booklet.
Package List︰
1. Package list:1220×780×1550mm;
2. Gross weight: 310kg
Product Description:

Designed for A4 size Paper stamping Process; High stamping speed; Automatic transport, Automatic stamping and automatically feeding of stamping foil;Suitable for large batch products such as cards, book, Greetings cards, etc

Automatic Card Hot Stamping Machine

Automatic Card Hot Stamping Machine

Automatic Card Hot Stamping Machine
