LC Printing Machine Factory Limited

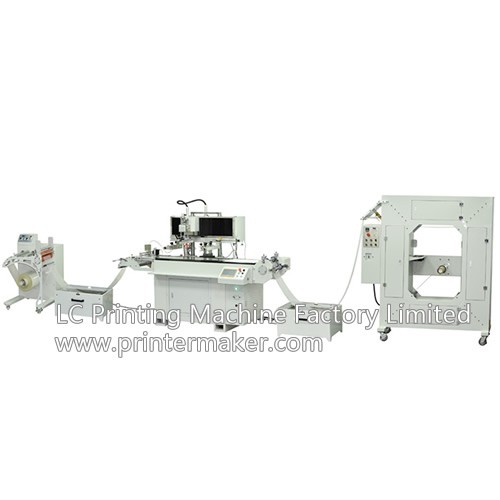

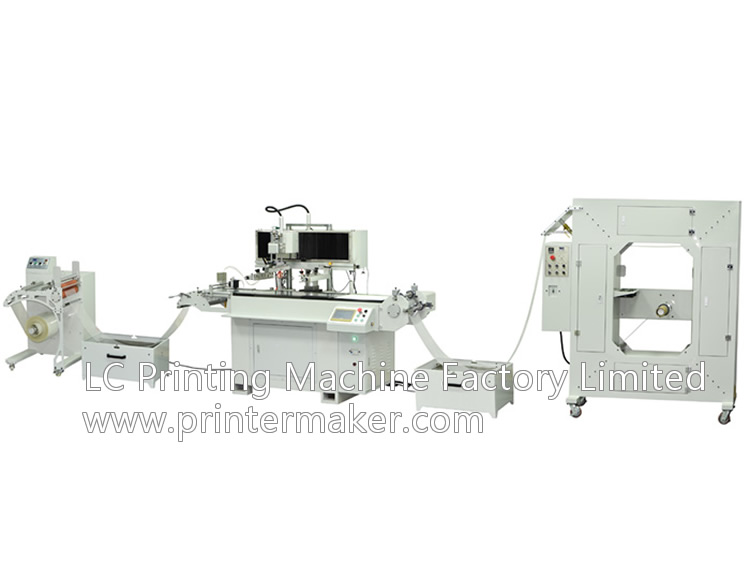

High Speed Automatic Roll to Roll SilkScreen Printer

  • Model Number: MSP-500D
  • Category: Flat Bed Screen Printing Machine
  • Views: 40
  • Product Description:High speed roll to roll silkscreen printing machine, plastic film automatic silkscreen printing machine, high speed roll to roll screen printer; Automatic label roll to roll silkscreen printing machin
  • PRODUCT DETAIL

Product name:High Speed Automatic Roll to Roll SilkScreen Printer

Model Number: MSP-500D

Machine Parameter:
1: Screen Frame size 700 ×1100 mm
2: Max.print area:500×700 mm
3: Max.paper Width:500 mm
4: Max.paper winding:700 mm
5: Printing speed:0-6000 RPH
6: Machine size:3500 × 1400 × 1800 mm
Net weight1600 kgs;
Gross weight :2100 kgs
7: Drying Oven Dimension:2800 × 1000 × 2500 mm

Net weight 1000 kgs ;
Gross weight 1200 kgs
8: Power supply: 380 V
9: Doctor blade 0.75 kw
10: Wind motor: 1.5 kW
11: Air suction motor 0.37 kw

Standard Accessories:
1 Unwinder 1 set
2 Main machine 1 set

3 rewinding machine 1 set
4 set screen frame 4 set
5 dryingbox1set
6 scraper 3 set
7 ink return blade 3 set
8 toolbox1set
Model EASY-350D
1: Screen frame size:550*700  mm
2: Max.print area: 330*450   mm
3: Max.paper Width:350 mm
4: Max.paper wind width:450      mm
5: Printing Speed: 0-9000     rpm
6: Machine Size: L.2500×w.1100×h.1700  mm
7: Drying Box Size: 1865*940*2000    mm
8: Machine Net Weight:1200kg: Gross Weight:1700kg
9: Drying Oven: Net Weight:600kg; Gross Weight:950kg10: Machine power supply:220V
11: Drying Oven power supply:    380V, 10KW
Machines standard Accessories:
1: Unwinder:       1     Set
2: Main Machine: 1     Set
3: Twin Rewinder:       1     Set
4: UV Curing system:  2     Set
5: Set Screen Frame:    4     Set
6: Ink Scraper:     6     Set
7: Ink-Reture Blade:    6     Set
8: Tool Box:  1     Set
9: Operation Manual:   1     Set
