Ink Cups Two Colour Pad Printing Machine with Lifted Head

  • Model Number: S2-250T
  • Product price: US$:negotiated
  • Category: Ink Cup Pad Printing Machine
  • Views: 5544
  • Product Description:Ink Cups Two Colour Pad Printing Machine with Lifted Head
  • PRODUCT DETAIL
  • Video

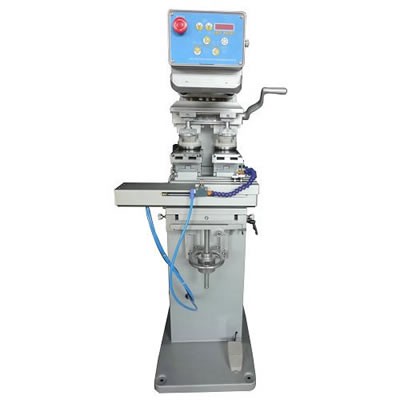

Product name:Ink Cups Two Colour Pad Printing Machine with Lifted Head

Model Number: S2-250T

Ink Cups Two Colour Pad Printing Machine with Lifted Head whith Lifted Head can ensures environmental, safe, it is comply with CE Starderand, ease operateing, to consume ink that frugal. Help to reduce any solvents evaporating from the ink too quickly and also helps to keep the ink at a constant temperature.
THIS ITEM PAD Printer to fit pad printing plastic products, same as toyes, gift products, pen, PE products, golf ball package products, bos, , hosehold, stationery, pen, ball, electron products, mobile phone, bottle. Metals products, furniture fittings.
1. Controlled by microprocessor, easy operation, running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.
1. Model No:S2-250T
2. Operation: Pneumatic
3. Printing Colors: 2
4. Max. Printing area: 80*135mm
5. Plate area: 100*250 mm
6. Sealed ink cup diameter: 60 or 90 mm
7. Max printing speed: 1400PCS/H
8. Wattage: 220V/ 50Hz 110V/60Hz
9. Air pressure: 6 Bar
10. Machine size: 75×68×135cm
11. Machine weight:110kg
12. Packing size:61*90*150cm
13. Goss Weight:150KG
Machine fitting:
1. Two pcs steel plate
2. Two pcs rubber pad
3. Work box
4. English operating instruction
Price Terms︰ FOB GuangZhou
Payment Terms︰ T/T WESTUNION
Packing︰ WOODEN CASE
Lead Time︰3 DAYS AFTER PAYMENT
Standards Certificate︰ CE
Machines Fittings ︰ SILICONE RUBBER PADS,
Main Parts︰ SMC CYLINDER MADE BY JAPAN

Application area︰ PLASTIC PRODUCTS,TOYS, PENS ,Stationery, Rule

Ink Cups Two Colour Pad Printing Machine with Lifted Head
