Infrared Tunnel For Plastic and Glass Wine Bottles

Infrared Tunnel For Plastic and Glass Wine Bottles
Infrared Tunnel For Plastic and Glass Wine Bottles

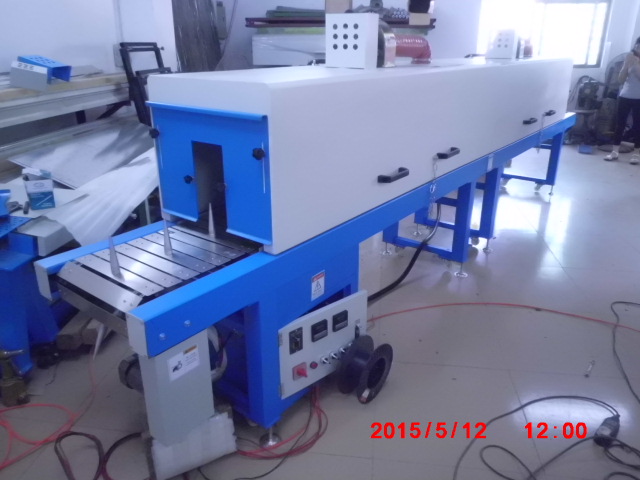

Tunel with total length of 5 meters at maximum temparature at 150degree, 50CM infeed, 50CM outfeed, 2*2Meters drying tunel.  (included the tooling for plastic bottles) Power Supply at 220V , 2 phases , 60 Hz    HS Code:8514109000
1.Conveyer width:400mm
2.Total wattage:10KW ;Lamp length:450mm;Lamp rate:400W*24pcs of lamps
3.Wind fan wattage:500W;
4.Conveyer motor wattage:1000W/3P/380V & 220V/3p
5.ConveyEr speed:0~10m/min
6.Speed adjustment:stepless
7. Outer dimension:5500×450×680mm(l×w×h)
8. Net weight:820KG
9. Package: wooden case.
