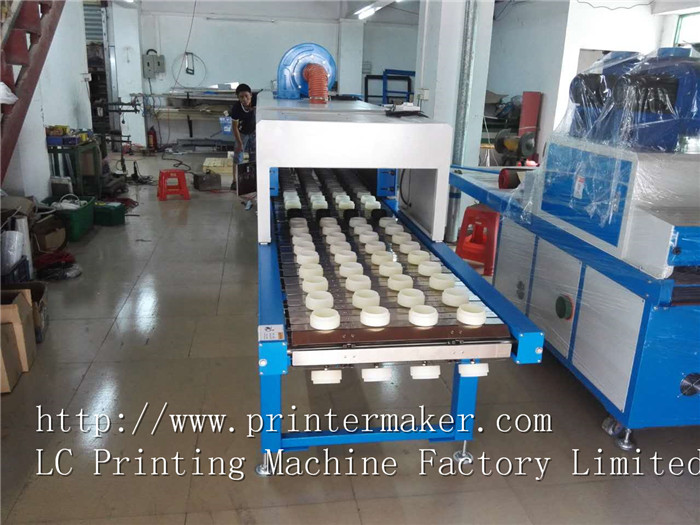

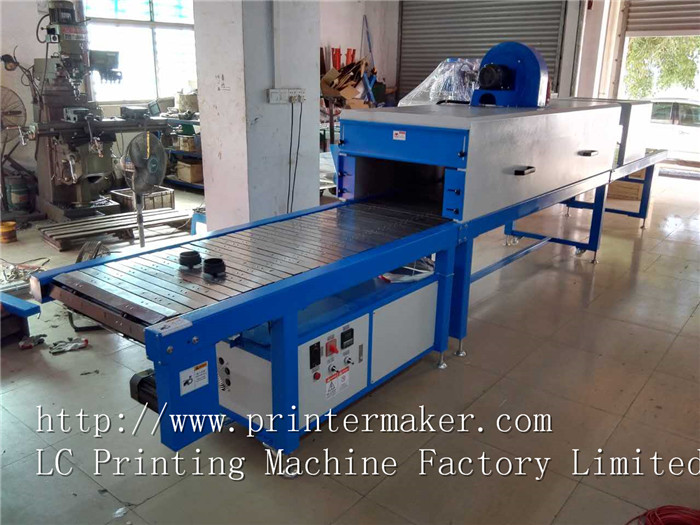

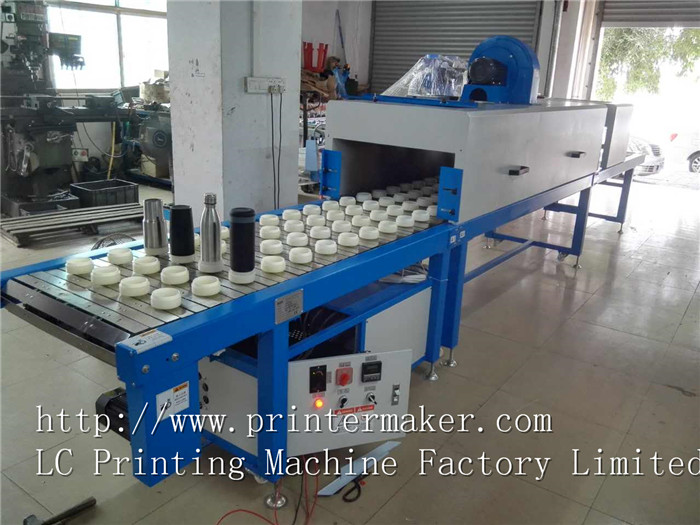

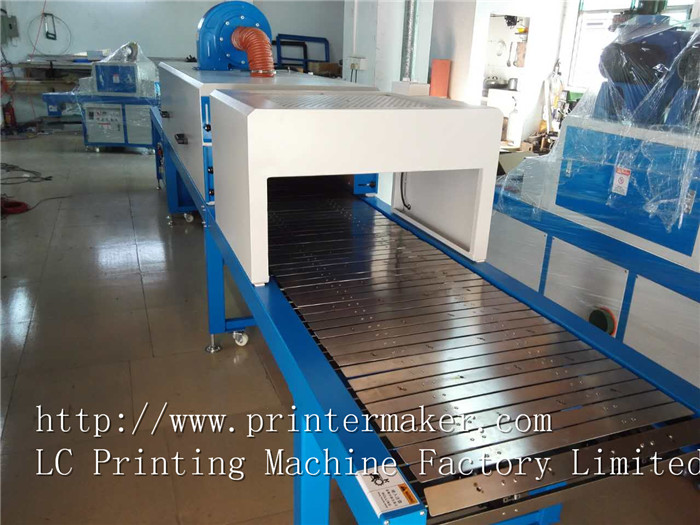

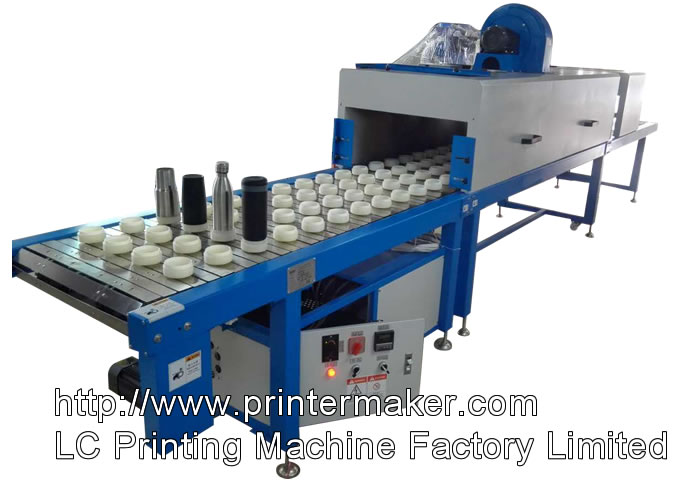

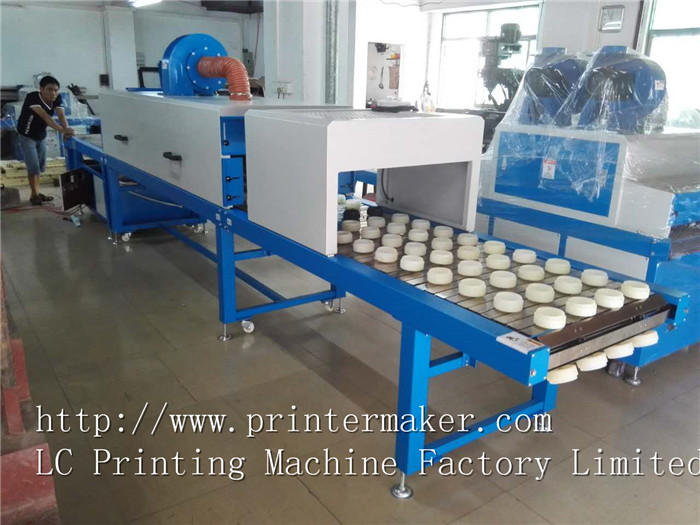

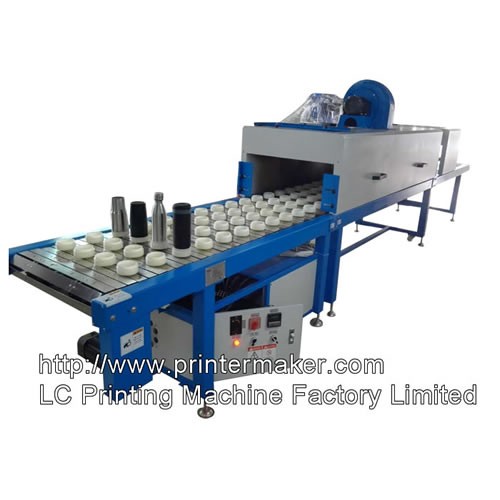

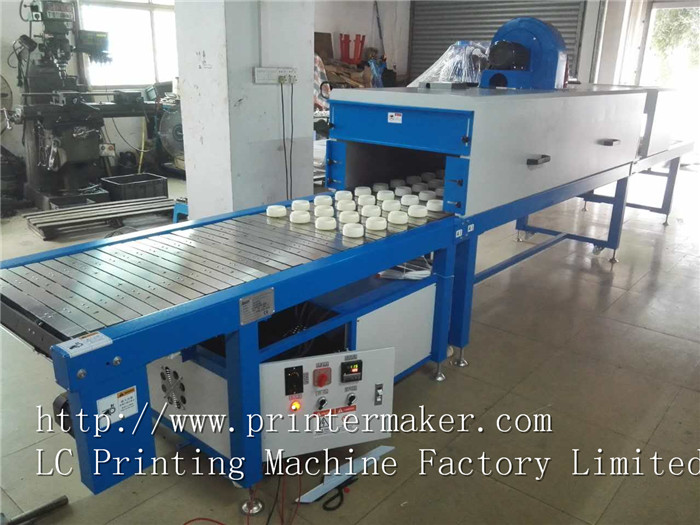

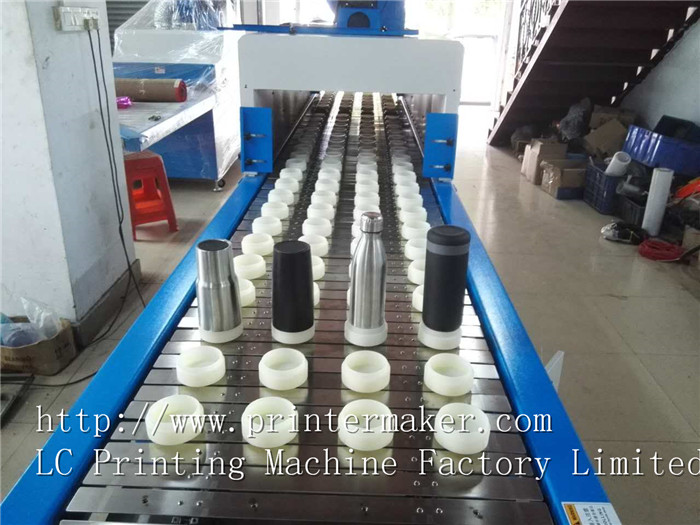

Infrared Drying Tunnel For Bottle-Stainless steel conveyor with 4 lines of fixture

  • Model Number: M-650BO
  • Product price: US$:negotiated
  • Category: Drying Oven
  • Views: 5521
  • Product Description:Infrared Drying Tunnel For Bottle-Stainless steel conveyor with 4 lines of fixture
  • PRODUCT DETAIL

Product name:Infrared Drying Tunnel For Bottle-Stainless steel conveyor with 4 lines of fixture

Model Number: M-650BO

Infrared Drying Tunnel For Bottle Stainless steel conveyor with 4 lines of fixture
Technical Parameters:
1:Model No:M-650BO
2:Conveyer size: width: 650mm; Infeedlength:1800mm;
heating zone: 2500mm*1
zones;cooling zone:700mm+300mm
total length at 6.3 meters;
Max.infeed height at 550mm
3:Total wattage:12KW
4:Circulating air motor :750W@43CM height
5:Conveyer motor wattage:200W;velocity rate:50RPM,every 70 seconds
6:Heating temparature:0-200degree; Heating tube length:620mm*15pcs;tubes power rate: 450W
7:Conveyer Speed adjustment: Stepless 0-8meters/minutes; Stainless steel conveyor belt; mandrill in Telft materials for resisting of 200 degree maximum; the mandrill maximum height at 30CM height.
8:Machine dimension: 910mm width*6300mm length *1900 height(lxwxh)
9:Gross/Net weight:  1620KG/1100KG
10:Package:  Wooden case
11:Automatic Grade:  Manual
12:Warranty       :  2years
13:Usage:  Round,Oval and flat plastic or glass bottles
14: packing size:
1:95*260*195CM
2:85*205*93CM
3:85*188*93CM

Infrared Drying Tunnel For Bottle-Stainless steel conveyor with 4 lines of fixtureInfrared Drying Tunnel For Bottle-Stainless steel conveyor with 4 lines of fixture
