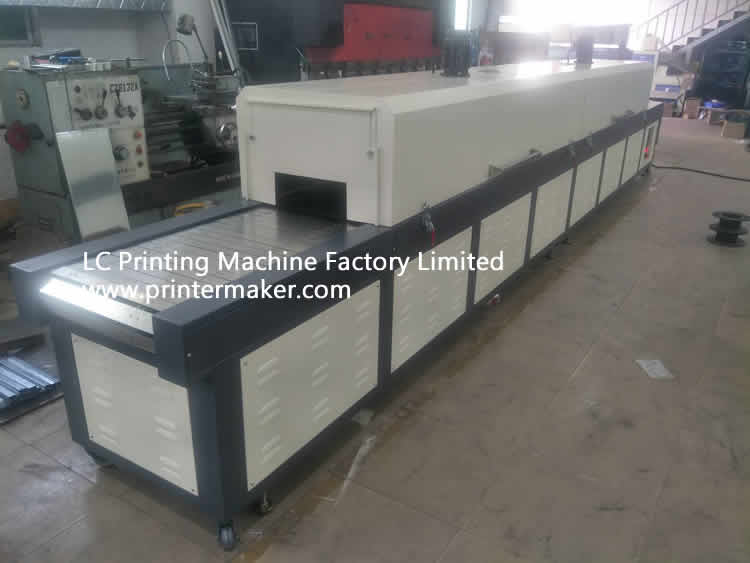

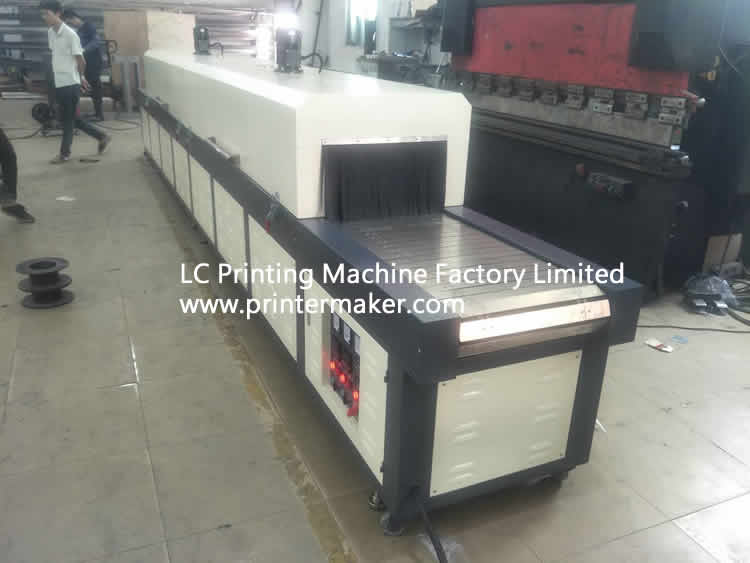

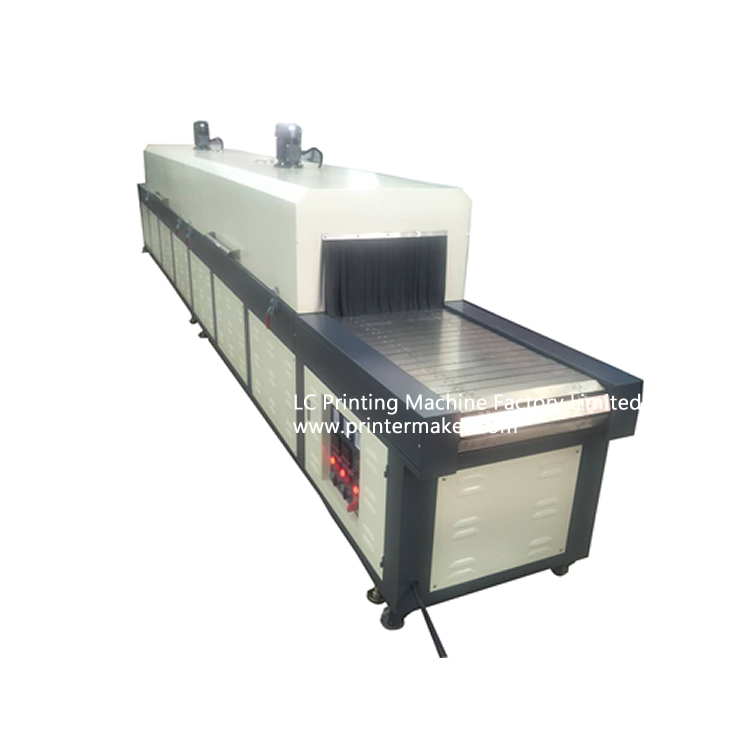

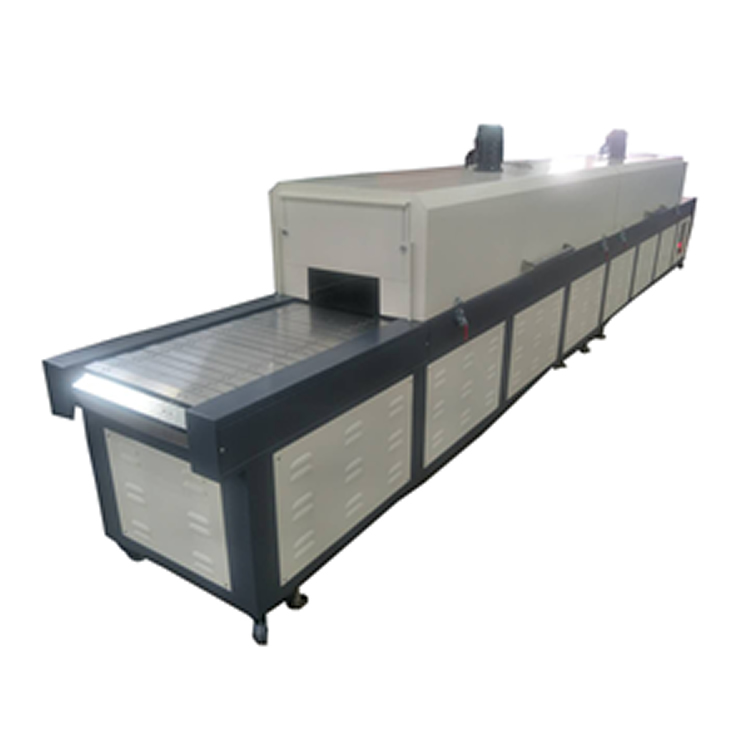

Glass Perfume Bottles Infrared Drying Tunnel

  • Glass Perfume Bottles Infrared Drying Tunnel
  • Glass Perfume Bottles Infrared Drying Tunnel
  • Model Number: M-50700BO
  • Category: Drying Oven
  • Views: 162
  • Product Description:Glass Perfume Bottles Infrared Drying Tunnel
  • PRODUCT DETAIL
  • Video

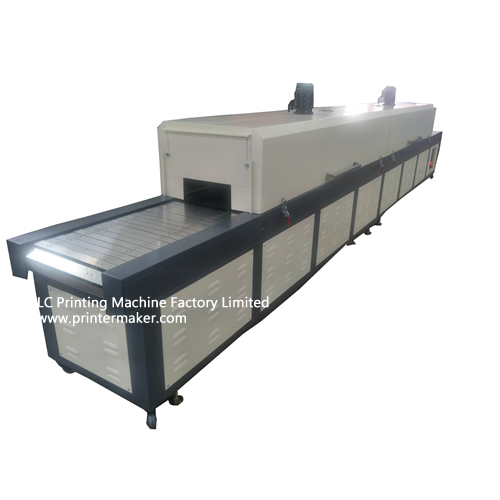

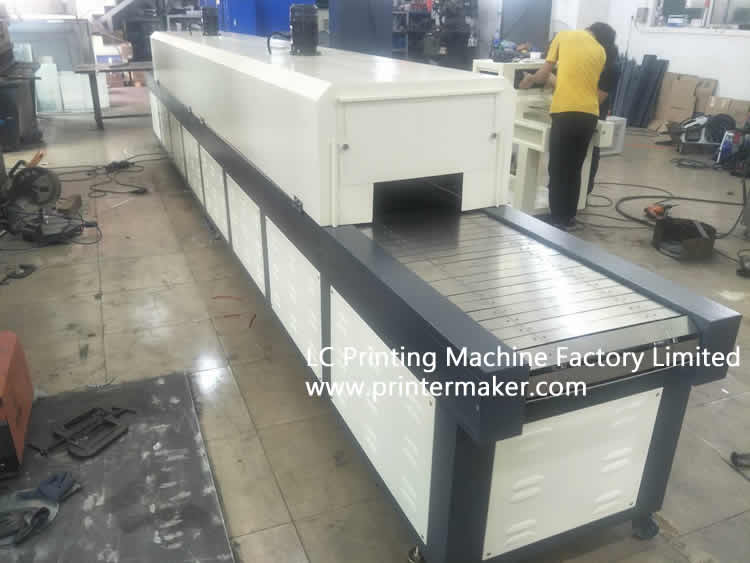

Product name:Glass Perfume Bottles Infrared Drying Tunnel

Model Number: M-50700BO

Specifications :
1:Model No:M-50700BO
2:Conveyer size: total length 7 meters;
width: 500mm;
infeed length:1000mm;
outfeed length:1000mm,
heating zone: 2500mm*2 zones;
Max.infeed height at 28CM
3:Total wattage:  20KW
4:Circulating air motor 750W*2=1500W
5:Conveyer motor wattage(invertor):500W; velocity rate:50-70RPM,every 70 seconds;
The fastest speed at 9000mm per minute, 14 meters(one cycle) needs 6 minutes;
The lowest speed is at 23CM per minutes; 7 meters use 30 minutes to finish.
6:Heating temparature:     80-300 degree.
Heating Tube : 2.5 meters heating tunnel*3pcs; total 2 tunnels with 6pcs of U shape heating tubes.
Heating Tube power rate: 3000W--U Shape
7:Conveyer Speed adjustment: Stepless 0-8meters/minutes;

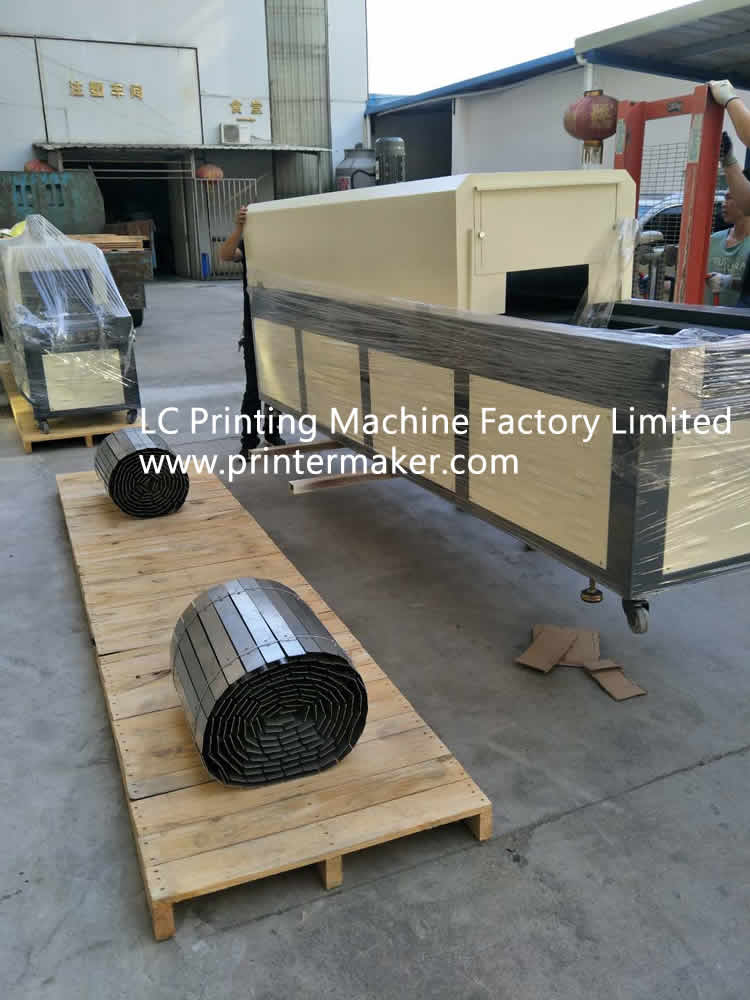

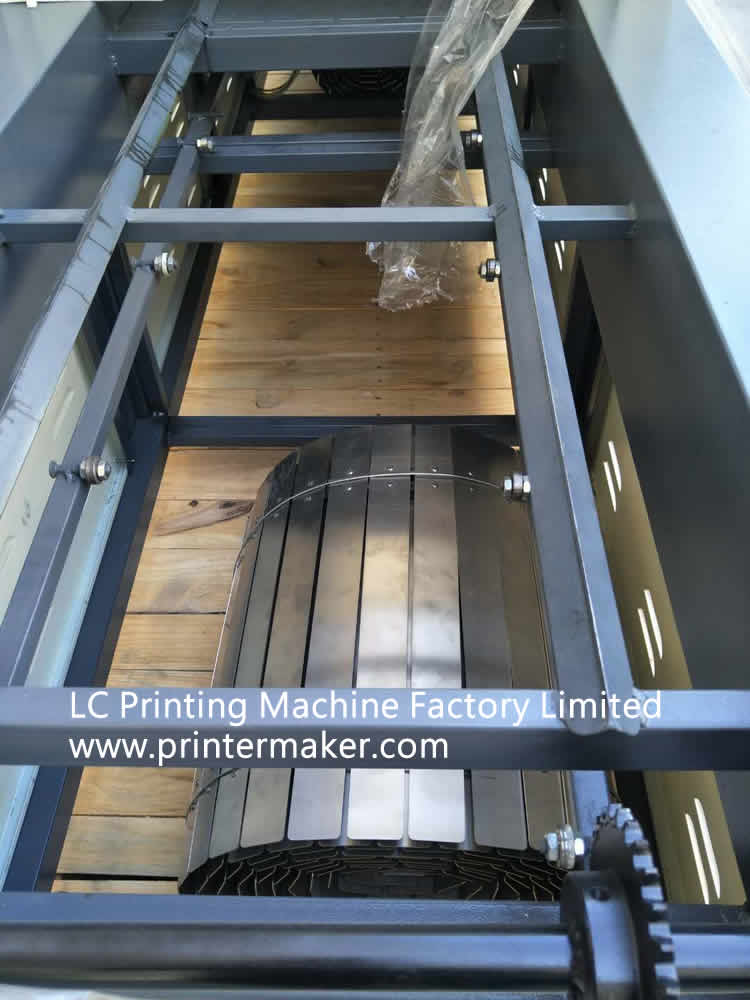

Stainless steel conveyor belt
8:Machine dimension:  790mm*7500mm*1450mm(W*L*H)
9:Gross/Net weight:    1480KG/1590KG

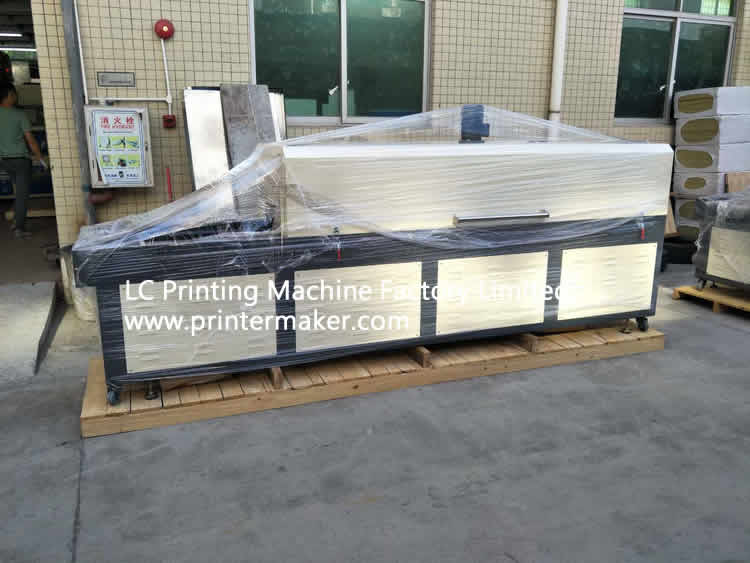

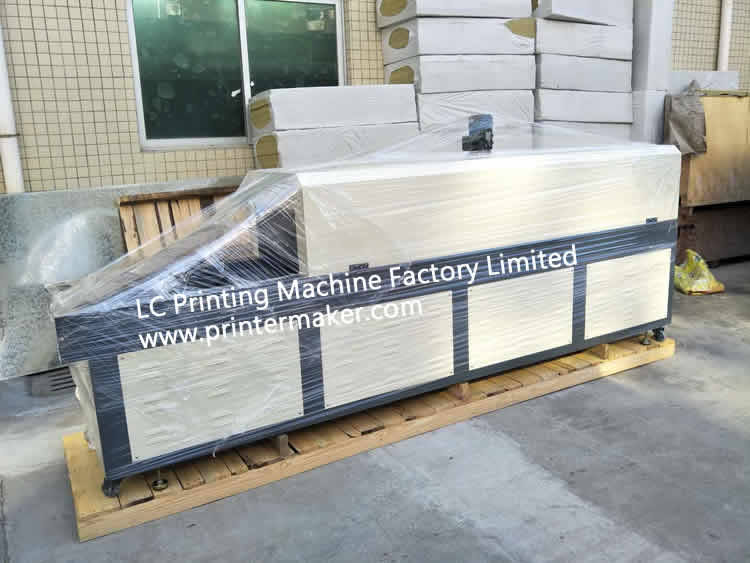

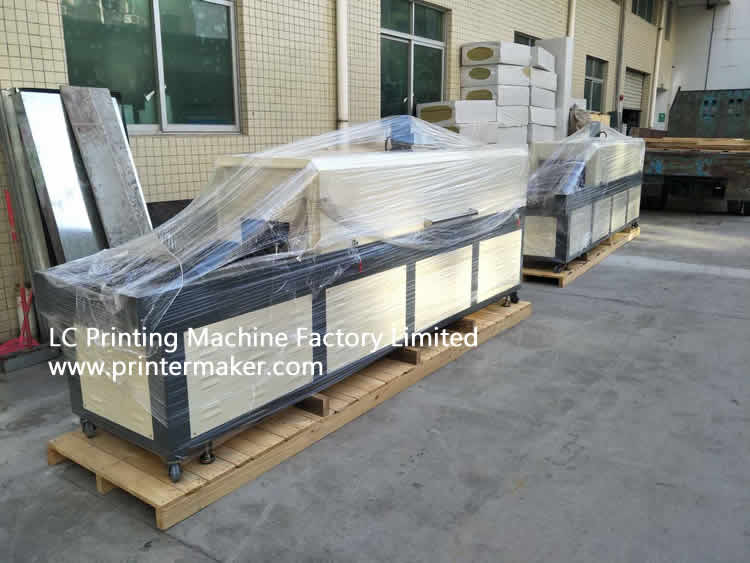

10:Package:            Wooden case
11:Automatic Grade:    Manual
12:Warranty       :    2 years
13:Usage:              Round,Oval and flat plastic or glass bottles
14:packing size:       3620*900*1600mm* 2 cases
