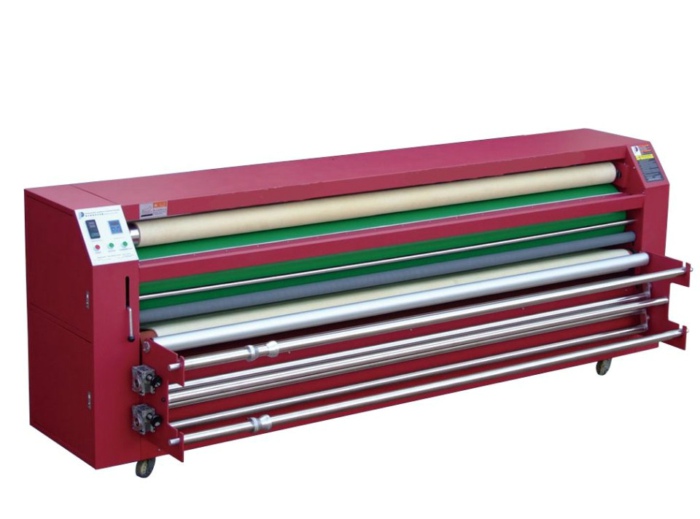

Fabric Roll to Roll Rotary Heat Press Transfer Machine

  • PRODUCT DETAIL

Product name:Fabric Roll to Roll Rotary Heat Press Transfer Machine

Model Number: FTP-3200

Descriptions:
FTP series is a conventional digital thermal transfer printing machine. It is suitable for transferring flag, cloth, clothing,curtains, bedding, cushion, umbrella, belt and individual design for printing. Each piece of cloth can be pressed evenly .

Applications:
Garment sheets
Fabric rolls
Flags, socks, blanket, curtain etc

Technical parameters:
Model No.: FTP-3200
Printing Width: 3.2m(126")
Roll Diameter: 420mm(16.5")
Width of Blanket: 3.3m(130")
Power: 36KW
Voltage: 380V
Packing Size(cm): 425*100*155cm
Net Weight: 1280(28166lb)

Features:
Short pre-heat time and heating is more even
Operating efficiency is 2-3 times higher than that of last generation
Low noise and stable speed
No cooling machine is needed and the blanket can be separated from the oil tank
Tension of the blanket can be adjusted more easily
Convenient operation with power-failure protection function
