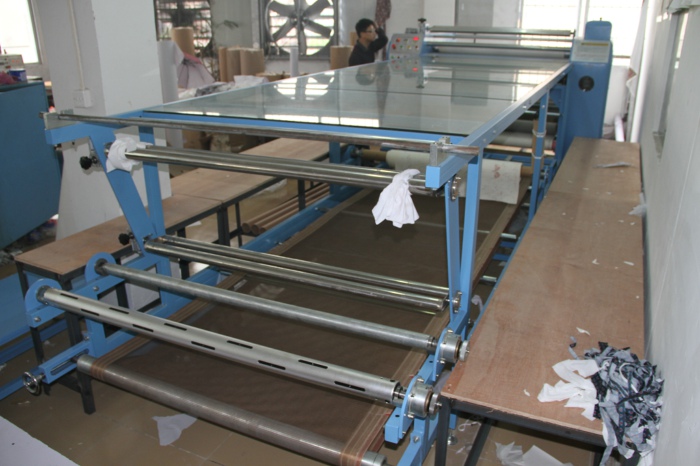

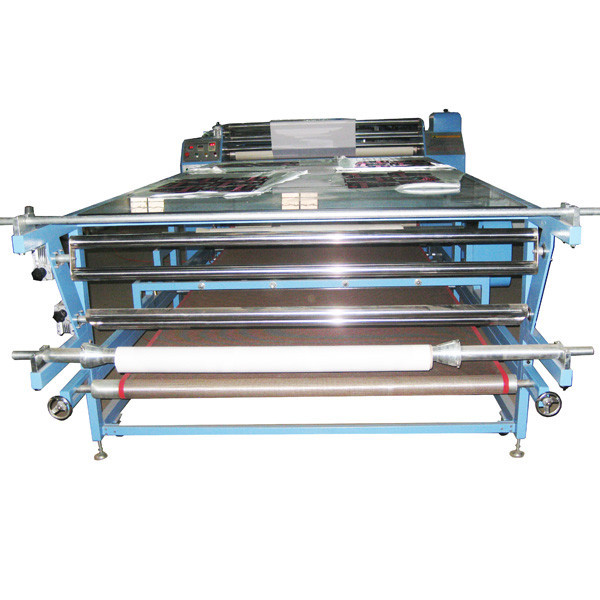

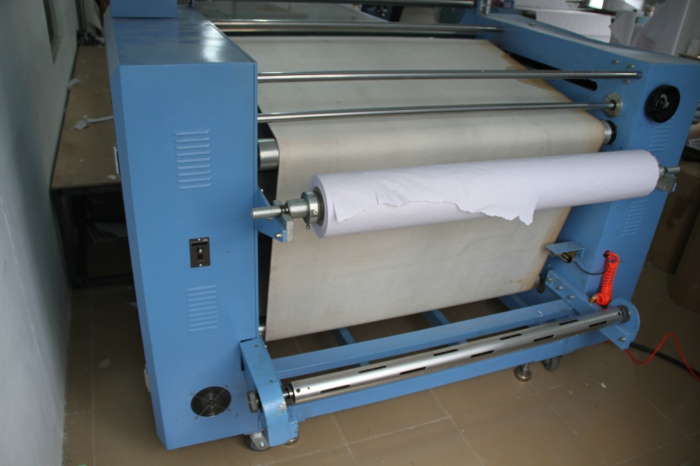

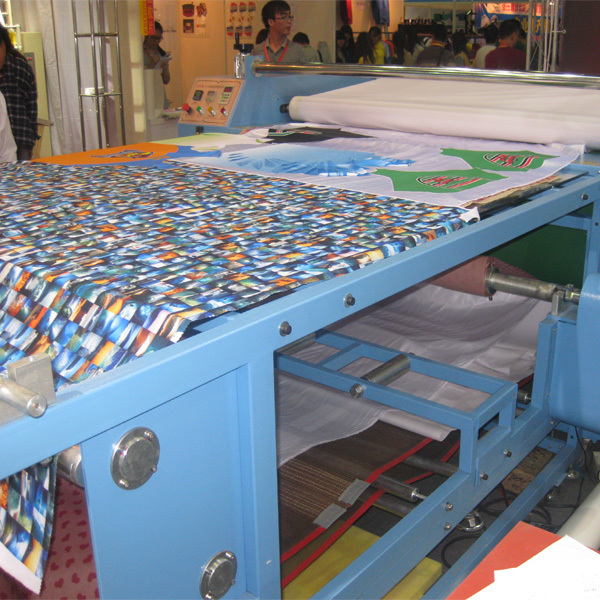

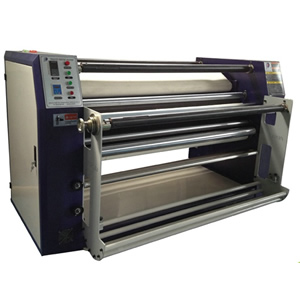

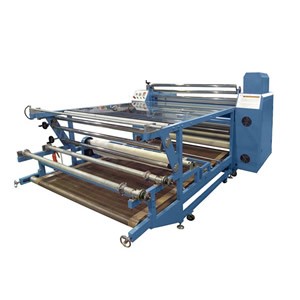

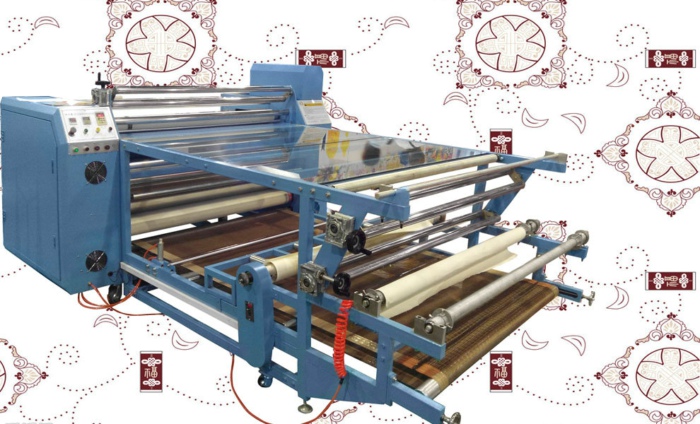

Fabric Roll to Roll Submlimation Heat Press Machine

  • Fabric Roll to Roll Submlimation Heat Press Machine
  • Fabric Roll to Roll Submlimation Heat Press Machine
  • Fabric Roll to Roll Submlimation Heat Press Machine
  • Fabric Roll to Roll Submlimation Heat Press Machine
  • PRODUCT DETAIL

Features:

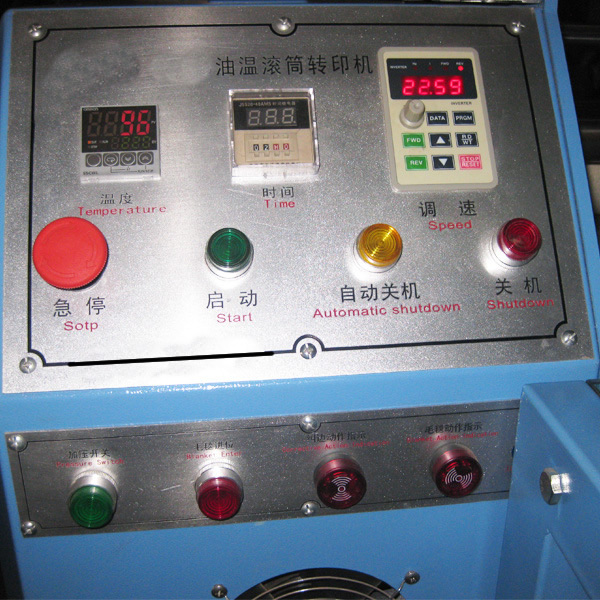

1.The most advanced technology and imported units arew adopted by machine controlling system with automatic positioning , accuracy together with security ,electronic constant temperature controlling wtih high accuracy, long service life and other features
2.Heating wheel is controlled by sealed and heat-oil heating to efficiently ensure the even and stable temperature,
3. Printing speed is equipped with continuous speed adjustment system ,feeding equipment is convenient for operation ith swiftness and high reliablity.
4 Equipped with continuous speed adjustment system,you can adjust printing speed as you need ,The roller was heating up with oil and temperature heating system.
5. Get CE Certificate , one year warranty

 Roller Width

 Roller Diameter

 Voltage

3/Phase

 Power

 Temp. Range

 Speed

 Weight

 (CM)Size

Price(EXW)

1.7m

420mm

220/380V

30KW

0-390

0-6 M/min

1800KG

263*139*160

10200USD

2 m

420mm

220/380V

35KW

0-390

0-6 M/min

2100KG

290*145*170

13000USD

1.2m

600mm

220/380V

32KW

0-390

0-8M/min

1800KG

243*167*170

11500USD

1.7m

600mm

220/380V

38KW

0-390

0-8 M/min

2300KG

 263*167*170

12600USD

1.9m

600mm

220/380V

42KW

0-390

0-8M/min

2600KG

288*167*170

14000USD

1.7m

800mm

220/380V

68KW

0-390

0-16 M/min

3200KG

320*480*280

25000USD

2.4m

800mm

220/380V

75KW

0-390

0-16M/min

3800KG

400*480*280

35000USD

1.8 m

1000mm

220/380V

108KW

0-400

0-45M/min

4900KG

340*600*330

51000USD

2.4m

1000mm

220/380V

120KW

0-400

0-45M/min

5300KG

400*600*330

69000USD

Special size machines can be made according to customers requirement!
