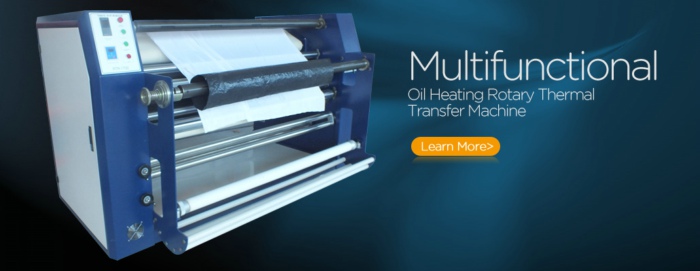

RTR-1700 Multifunctional Oil Heating Rotary Thermal Transfer Machine

  • PRODUCT DETAIL

Product name:RTR-1700 Multifunctional Oil Heating Rotary Thermal Transfer Machine

Model Number: RTR-1700

Descriptions:
Rotary Calander RTR is designed for roll-to-roll dye sublimation transfer or fixation. Applicable materials are flag, fabric, curtains, bedding, cushion, umbrella, belt and sportwear.
Oil drum is large which is up to 16.5", so production speed is fast. Also, it is double layer with tefelon coating which is filled with oil. Therefore, the density of color can be kept at constant.
Expanding shaft is equipped - Feeding and collecting media by roll-to-roll system with accurate alignment.
Precise mechanical structure results in perfect rewinding and no belt tracking.
Additional pressure is available for thick material transfer. The dye can penetrate deeply into the substrate

Features:
1. Short pre-heat time and heating is more even.
2. Operating efficiency is 2-3 times higher than that of last generation
3. Low noise and stable speed.
4. No cooling machine is needed and the blanket can be separated from the oil tank.
5. Tension of the blanket can be adjusted more easily.

6. Convenient operation with power-failure protection.

Multifunctional Oil Heating Rotary Thermal Transfer Machine

Application Flag,cloth,curtain,blanket,bedding,cushion,etc

Moel No.

RTR-1700 RTR-2500 RTR-3200
Printing Widt 1.7m(67") 2.5m(98")
3.2m(126")
Heating Media
Oil
Voltage
3phase,220V or 380V
3phase, 380V or 480V
Heating Power
18KW
30KW
36KW
Number of Heating Elements
12
Diameter of Drum
420mm
Transfer Speed
up to 3m/min
Max Temperature
260C
Transfer Width
1650mm
2450mm
3150mm
Blanket Width
1730mm
2530mm
3300mm
Process Path
Feeding in through top drum
Function of Roll to Roll
Y
Function of Sheet to Sheet
N
Number of Feeding Rollers
3
Number of Collecting Rollers
3
Workable Included
N
Air Pressure Included
Y
Machine Dimension
247*107*145
329*125*160
401*125*165
Packing Size
260*130*170
360*145*180
420*145*185

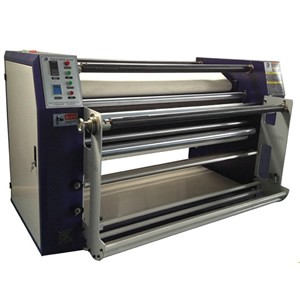

Multifunctional Oil Heating Rotary Thermal Transfer Machine


Multifunctional Oil Heating Rotary Thermal Transfer Machine

Multifunctional Oil Heating Rotary Thermal Transfer Machine
