Product name:CNC Multicolor Overprint Screen Printing Machine

Model Number: MSP-400X

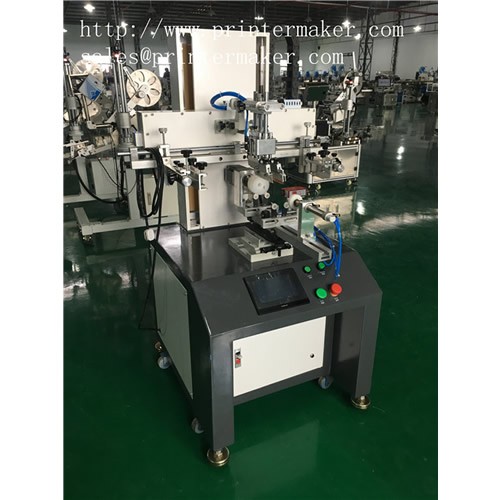

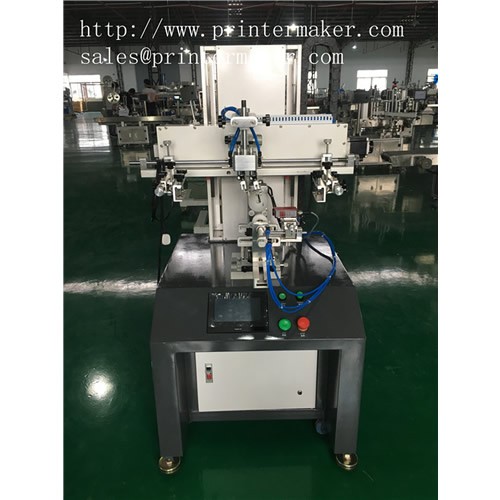

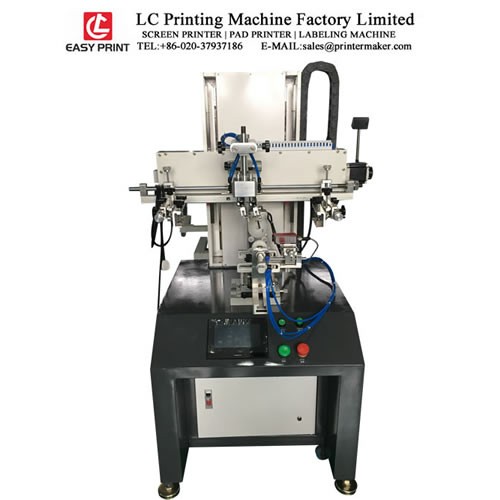

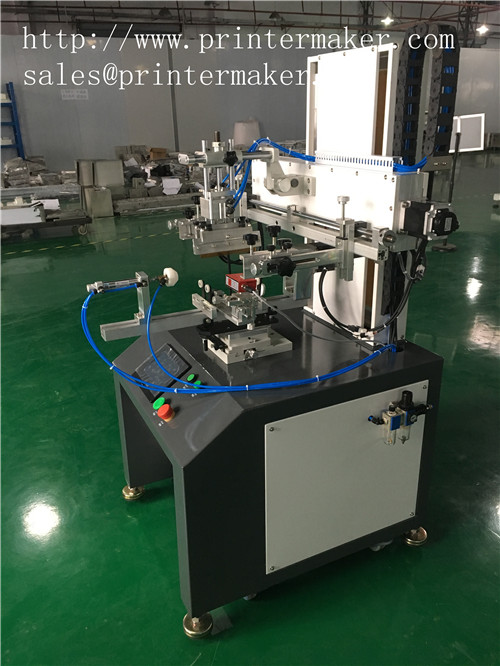

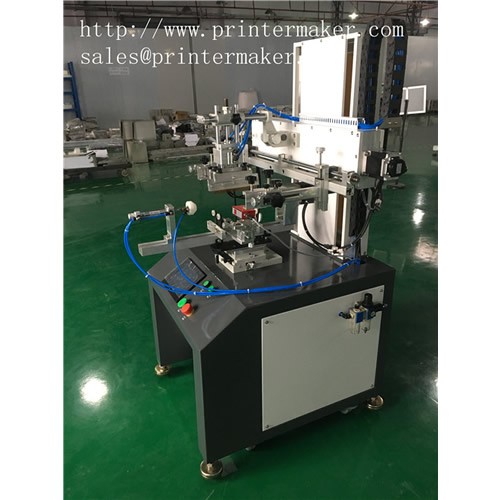

CNC Multicolor Overprint Screen Printing Machine

Product nameCNC Multicolor Overprint Screen Printing Machine
ItemMSP-400X
Details:

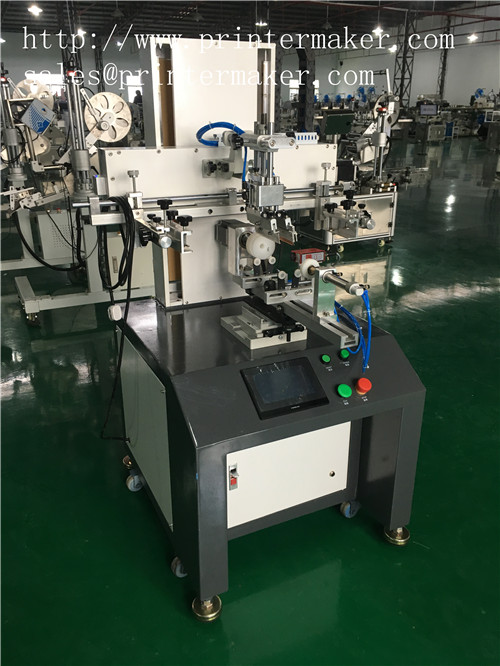

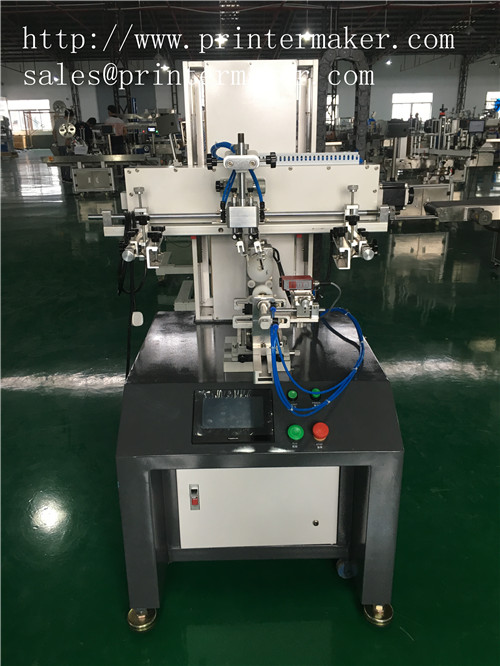

CNC Multicolor Overprint Screen Printing Machine
This machine is high precision overprinting servo screen printing machine .
Advantage

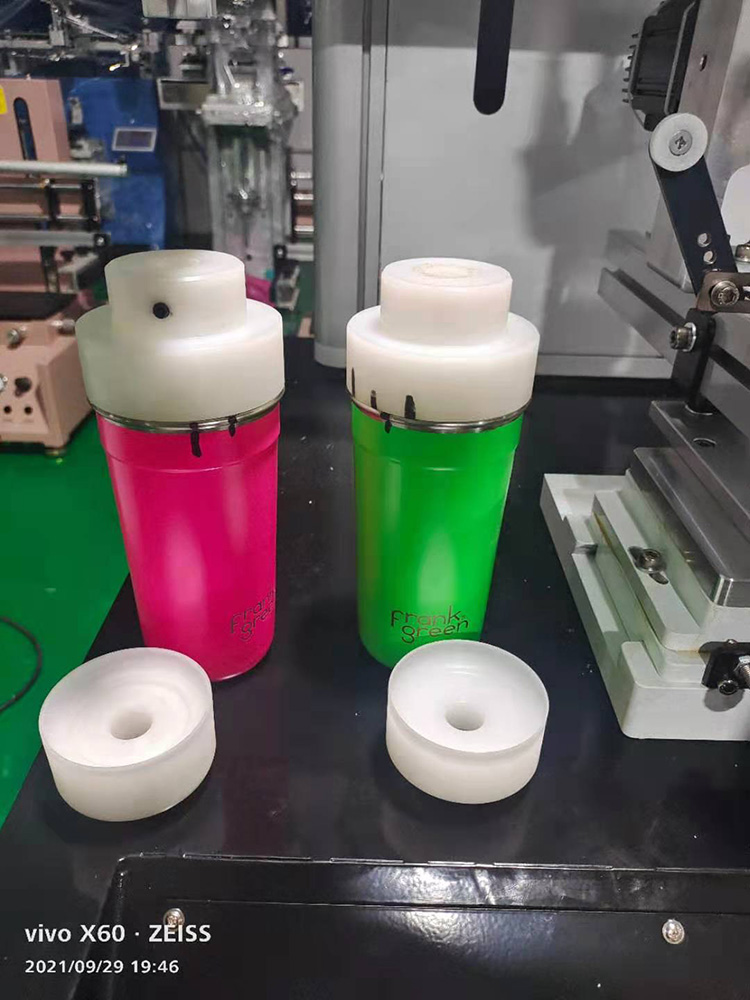

1) Don't need any registration point for products .

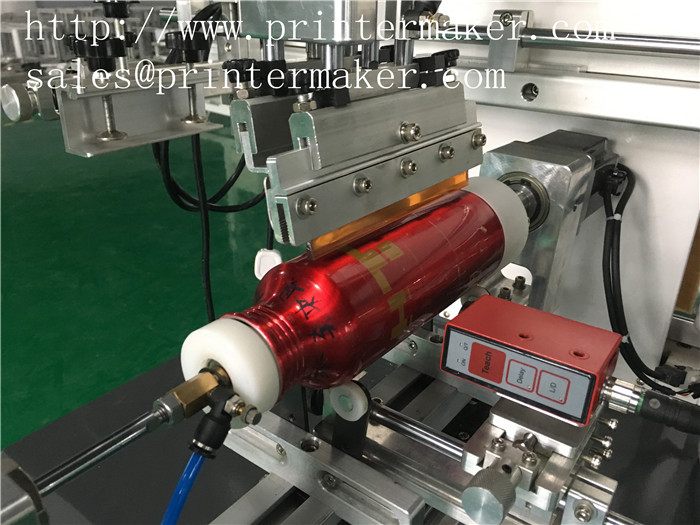

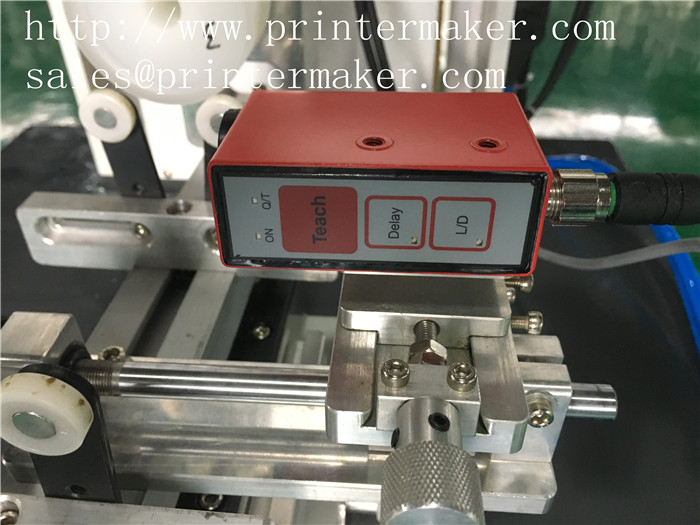

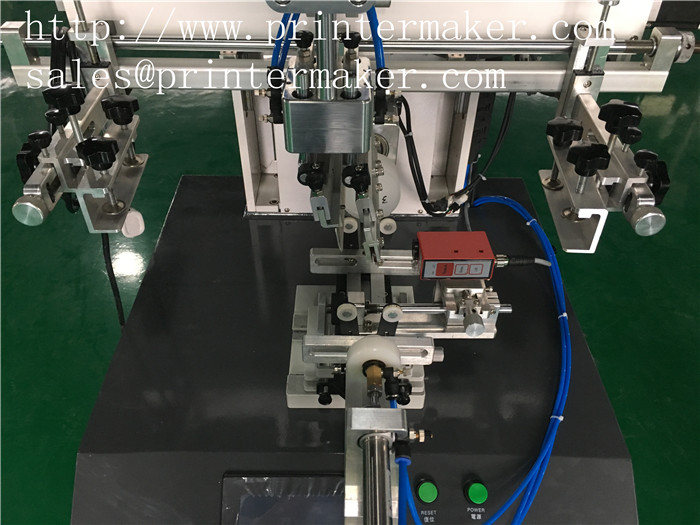

Leuze sensor detect  first printing to overprint , to print second color , very high precision .

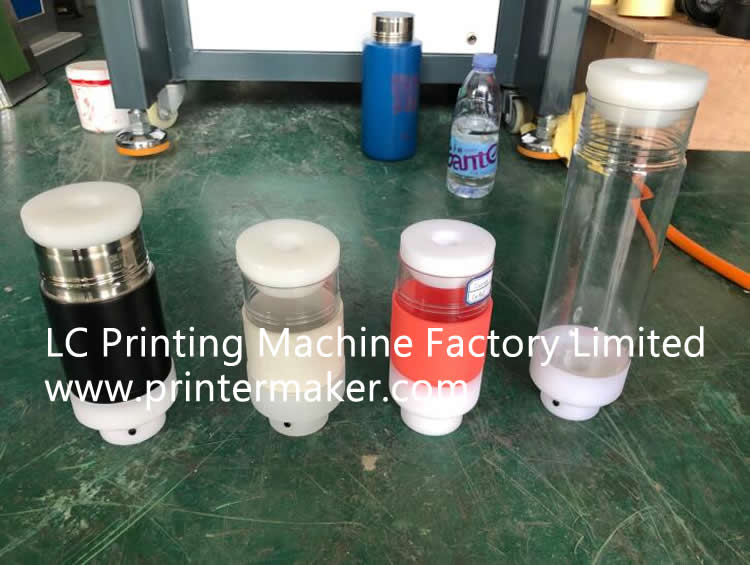

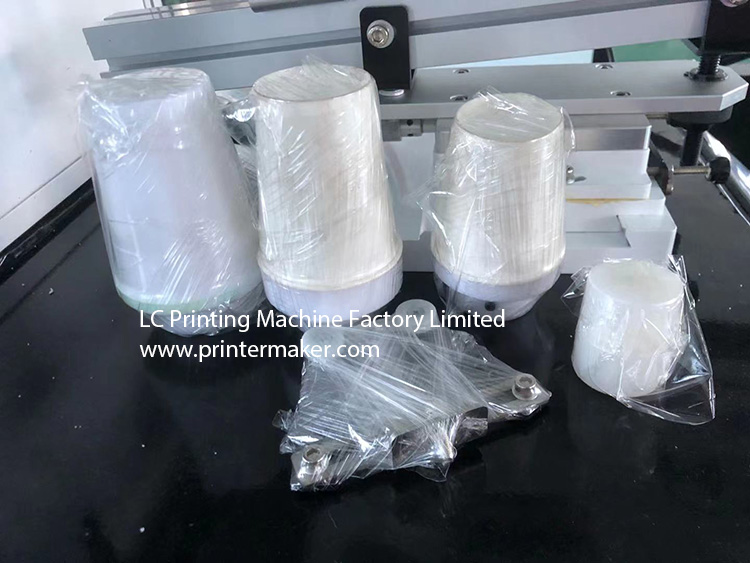

2) Don'y need any gears , just fixture is enough.

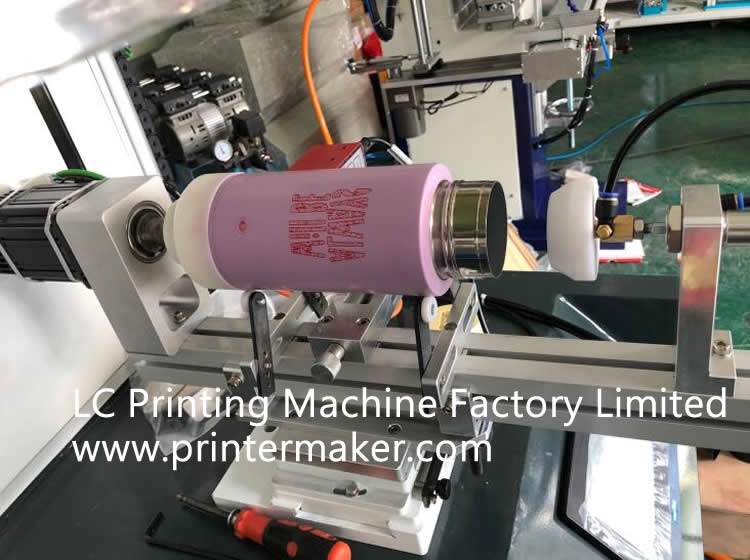

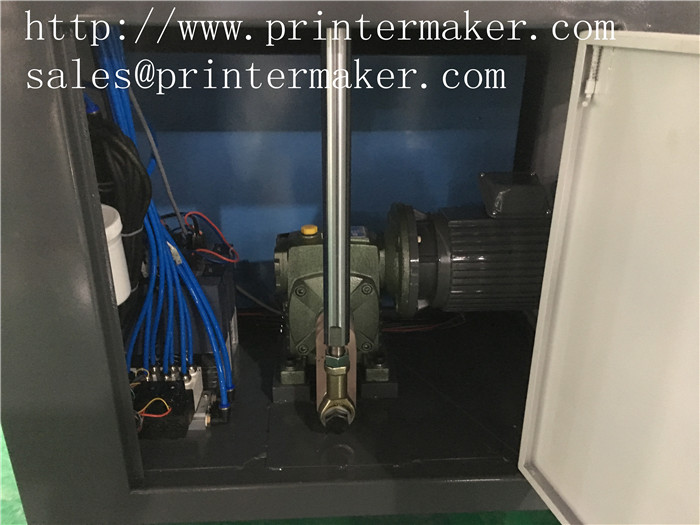

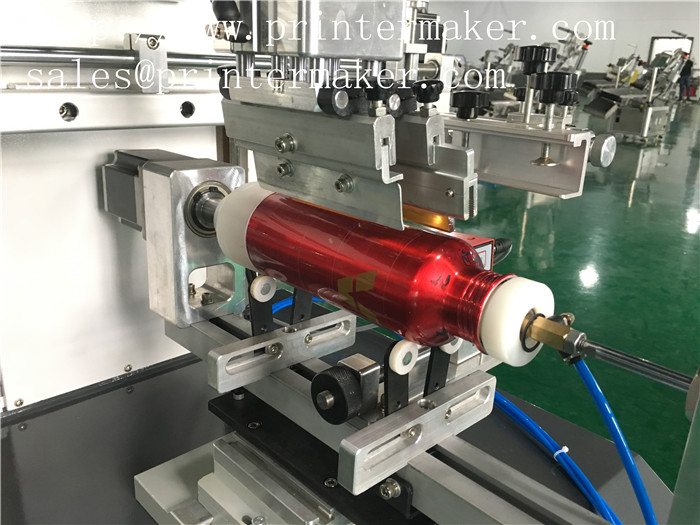

Panasonic servo motor instead gear to overprint .
Specification
Model number MSP-300X MSP-400X MSP-600X MSP-800X MSP-1200X
(Round)Max Printing diameter 82 mm 120mm 180mm 250mm 375mm
(Round)Max printing area 300×260mm 300×360 mm 300×570mm 350×770mm 420×1170mm

Max Workpiece rake <14° <14° <14° <14° <14°
Air pressure 6bar 6bar 6bar 6bar 6bar
power 2.3kw 2.3kw 2.8kw 3.2kw 3.6kw
Voltage AC110V/220V AC110V/220V AC110V/220V AC110V/220V AC110V/220V
Printing speed 1300P/H 1200P/H 1100P/H 900P/H 800PH
Machine appearancemm 850×850×1280 1080×850×1280 1200×1100×1450 1300×1180×1450 1720×1600×1650
Machine weight 320kg 345kg 500kg 520kg 600kg

CNC Multicolor Overprint Screen Printing MachineCNC Multicolor Overprint Screen Printing MachineCNC Multicolor Overprint Screen Printing MachineCNC Multicolor Overprint Screen Printing Machine
