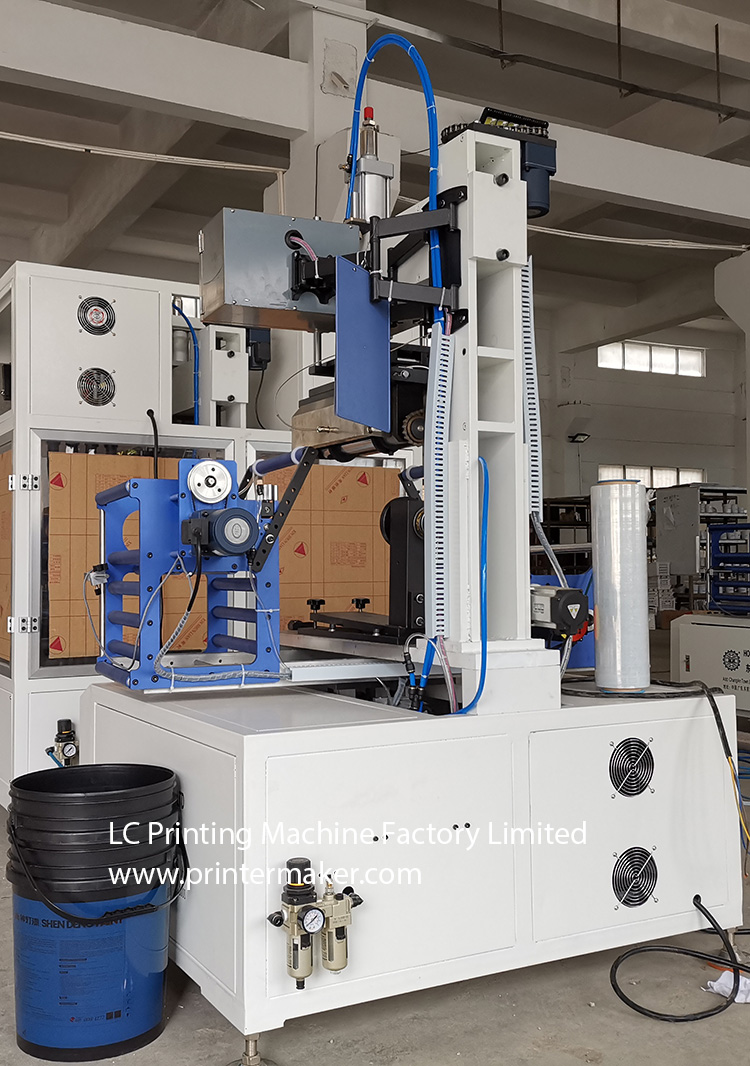

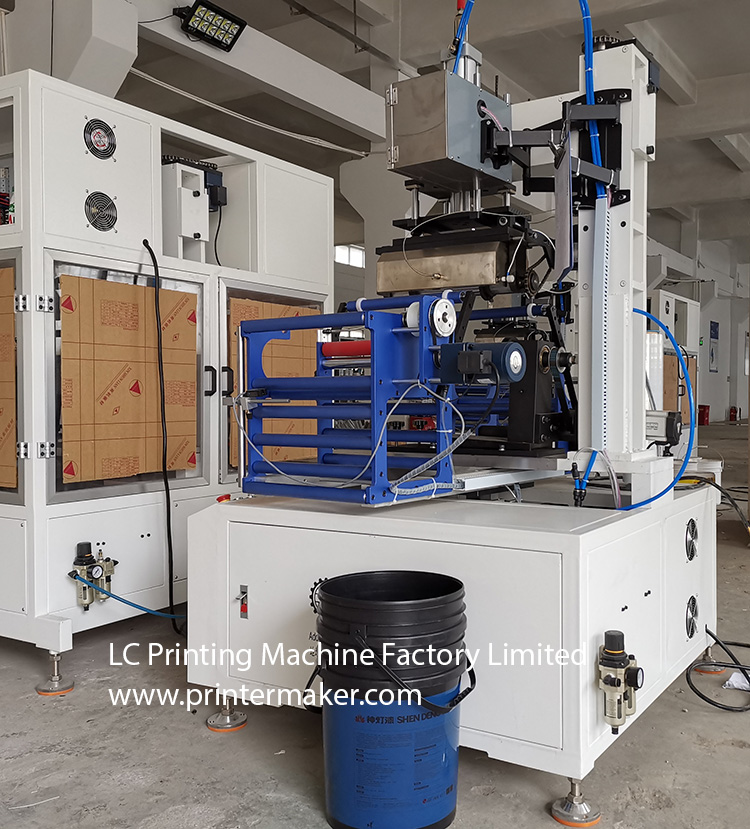

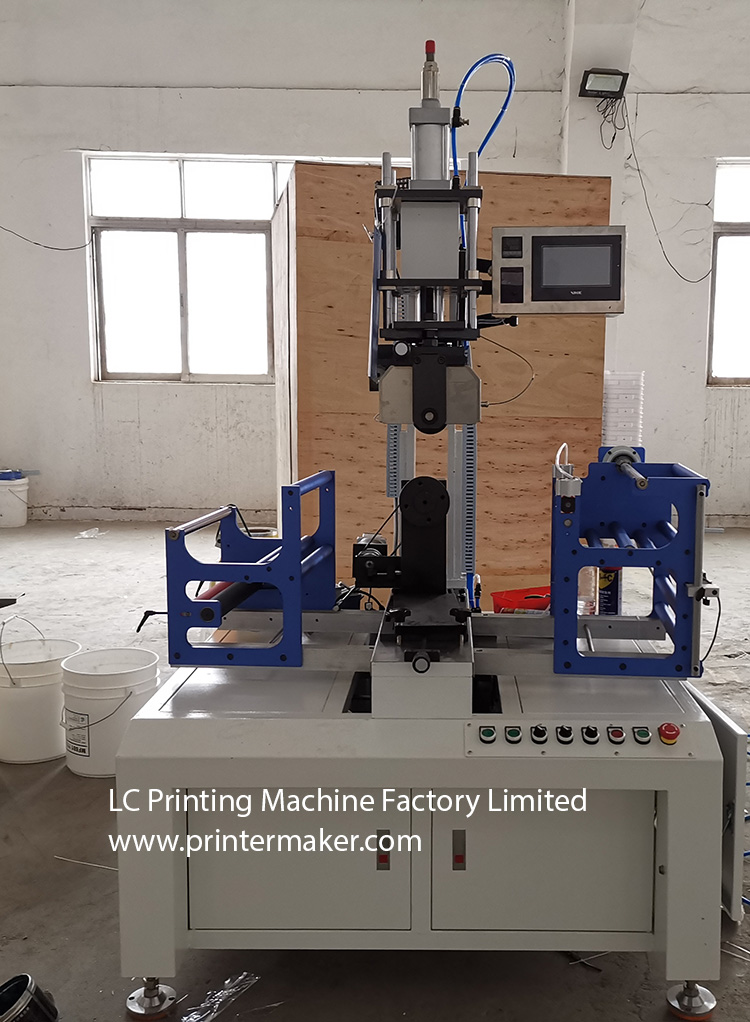

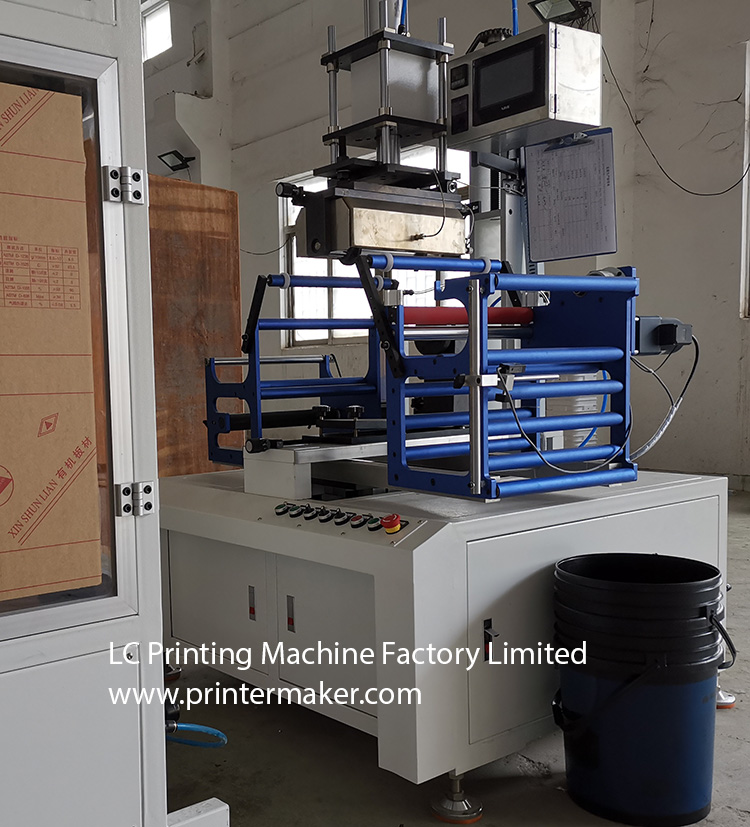

Automatic Heat Transfer Machine on Paint Plastic Bucket

  • Model Number: HT-300280
  • Category: Heat Transfer Machine
  • Views: 452
  • Product Description:Automatic Heat Transfer Machine on Paint Plastic Bucket
  • PRODUCT DETAIL
  • Video

Product name:Automatic Heat Transfer Machine on Paint Plastic Bucket

Model Number: HT-300280

Description:

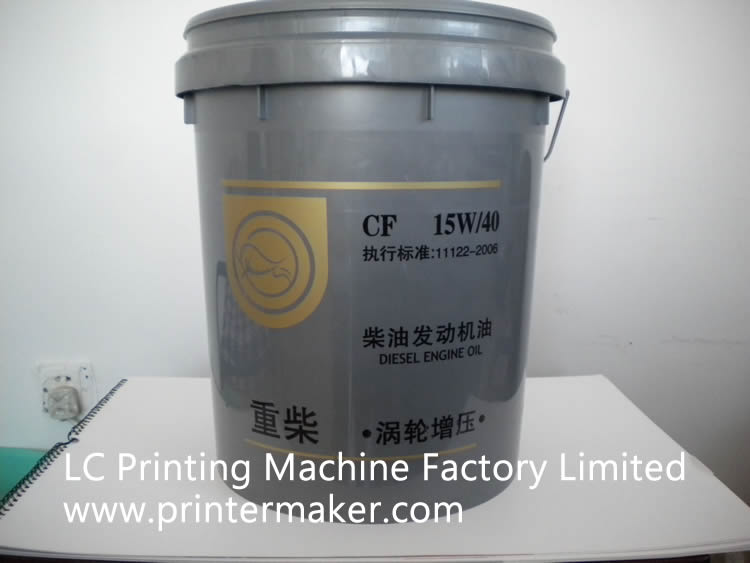

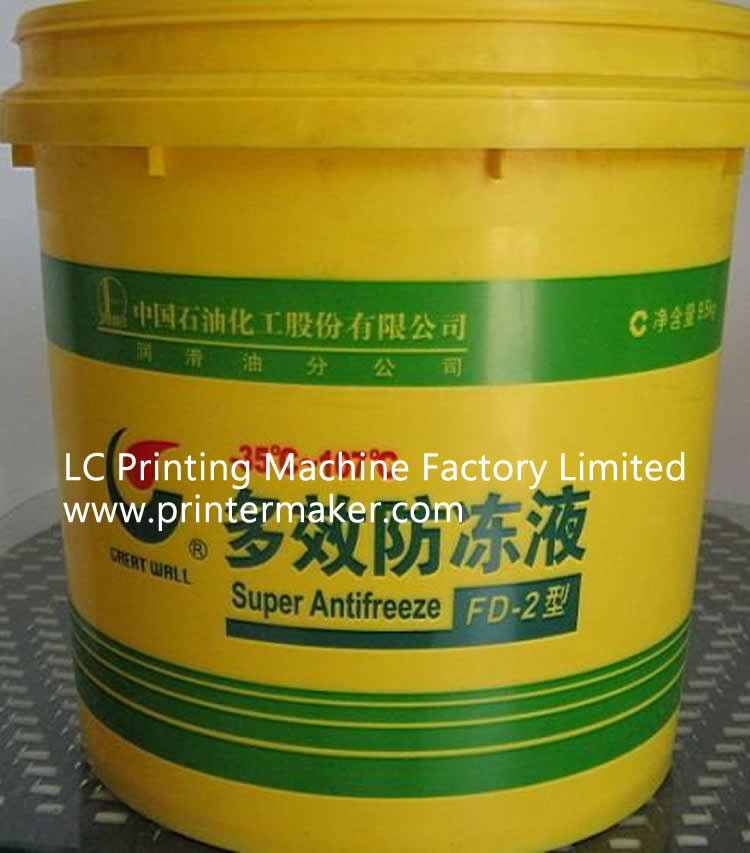

Automatic Heat Transfer Machine on paint plastic bucket
1:Max.Heat Transfer Size: φ300mm 300x280mm  
2:Speed(Pieces/minute): 6-8 seconds one piece
3:Machine size(LxWxH):1900x1000x2000cm  
4:Net Weight: 650kg 
5:Air Pressure: 5-7bar 
6:Power: 220V/50Hz3, 5KW
7: Up and down stroke:75mm plus with 50MM height adjustable
8: Air cylinder: 80-A

9: two types of stepping motor, PLC Servo motor control, shaping & rotating working table for cone shape for assuring "0" wrinkle on buckets
