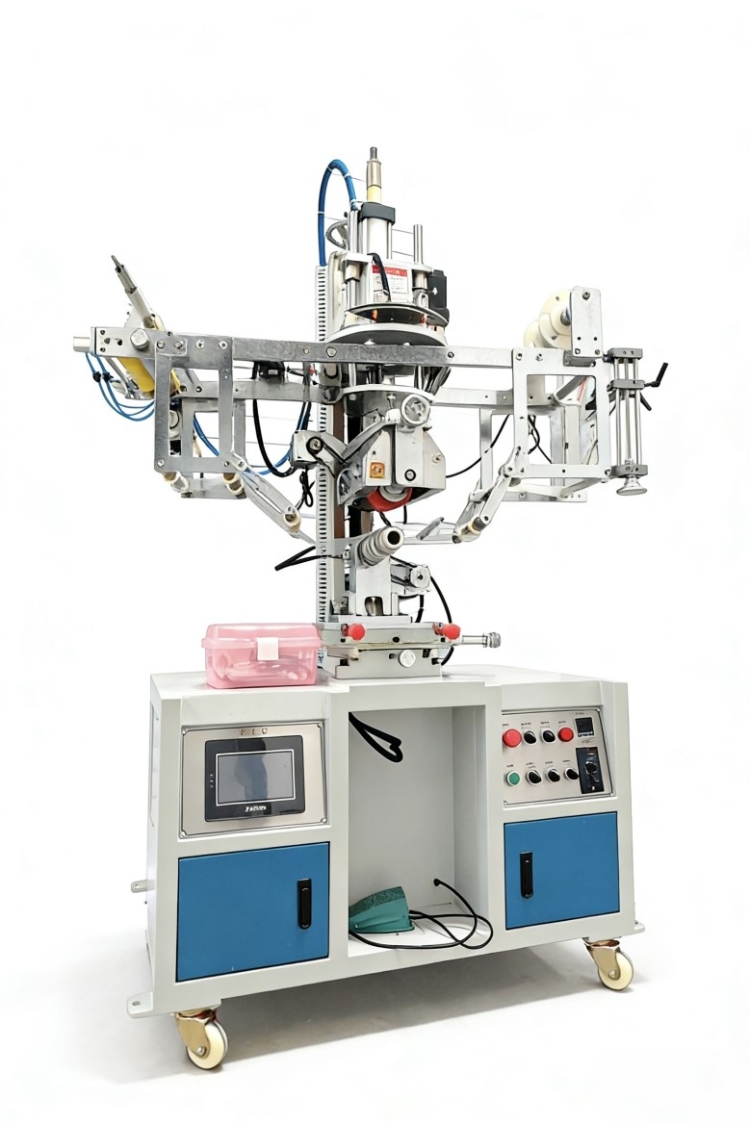

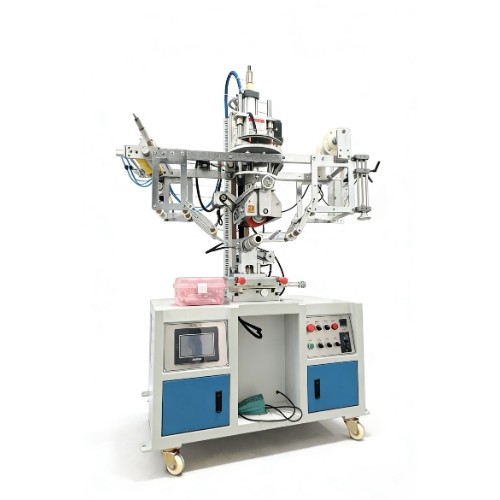

4-Axis Servo Heat Transfer Machine on Tapered Cup

Model Number: EASY-TC300
Product price: US$:negotiated
Category: Heat Transfer Machine
Views: 6

Product Description：Servo tension control, servo pattern swing, servo pattern forward/backward movement, servo jig rotation, with exclusive algorithm.Specially designed for pattern transfer on tapered plastic cups and pl

PRODUCT DETAIL

Product name:4-Axis Servo Heat Transfer Machine on Tapered Cup

Model Number: EASY-TC300

Specification:
1. Machine Name: 4-Axis Servo Heat Transfer Machine on Tapered Cup
2. Model: EASY-TC300
3. Max. Printing Area: 220mm
4. Max. Processing: 200 mm
5. Control System: PLC + HMI; 4-axis servo motor coordination.
6. Special Features: Servo tension control, servo pattern swing, servo pattern forward/backward movement, servo jig rotation, with exclusive algorithm.
7. Typical Applications: Specially designed for pattern transfer on tapered plastic cups and plastic barrels.
8. Power Supply/Total: 220V / 50Hz / 4000W
9. Air Pressure: 0.4 – 0.6 MPa

10. Dimensions/Weight: L 1.4 × W 1 × H 2.1 m / 450kg
