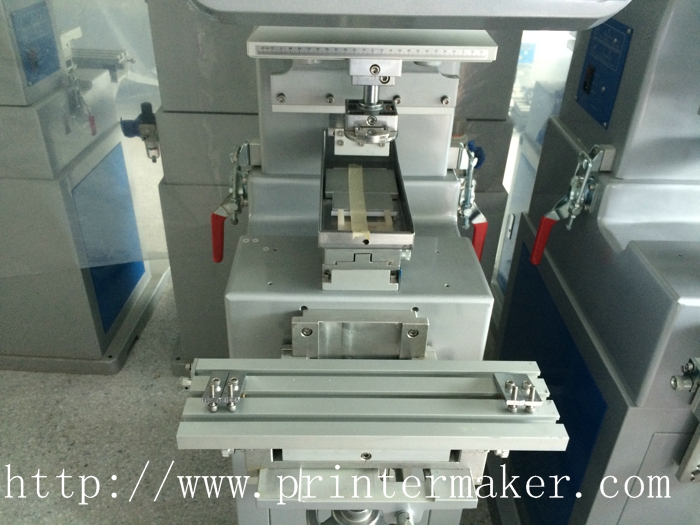

1 Color Pad Printing Machine for Large Images

  • 1 Color Pad Printing Machine for Large Images
  • 1 Color Pad Printing Machine for Large Images
  • 1 Color Pad Printing Machine for Large Images
  • 1 Color Pad Printing Machine for Large Images
  • PRODUCT DETAIL
  • Video

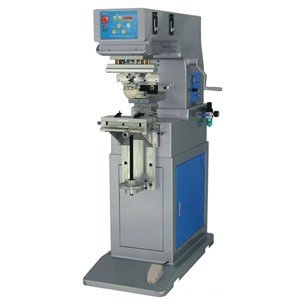

Product name:1 Color Pad Printing Machine for Large Images

Model Number: M1

Specifications:
M1
1.Max Plate Size:100x200mm 
2.Speed (Pieces/hour) :1680pcs
3.Machine size(L x W x H):100*64*152cm  
4.Net Weight:160kg; Gross Weight:200kg 
5.Air Pressure(bar): 5
6.Power: 220V/50Hz 60w
7. Package dimension:102×63×168CM;

Enlarging ink Tray pad printer
One color pad printer-Upgraded with stronger
Dia.80 SMC cylinder and larger ink tray system 220V/ 50HZ 1-PHASE
1:Max Plate Size:150x200mm 
2:Speed (Pieces/minute) :28
Machine size(L x W x H):95x63x150cm  
Net Weight:170kg  
Air Pressure(bar): 5
Power: 220V/50Hz 60w;
Maximum Printing size at:130*80mm
Packing Size:102*63*168CM

Enlarging Ink Tray Pad Printer
One color pad printer -Upgraded with stronger
Dia.80 SMC cylinder and larger ink tray system 220V/ 50HZ 1-PHASE
Max Plate Size:200x200mm;200*250mm 
Speed (Pieces/minute) :28
Machine size(L x W x H):95x63x150cm  
Net Weight:170kg  
Air Pressure(bar): 5
Power: 220V/50Hz 60w

Advantages:

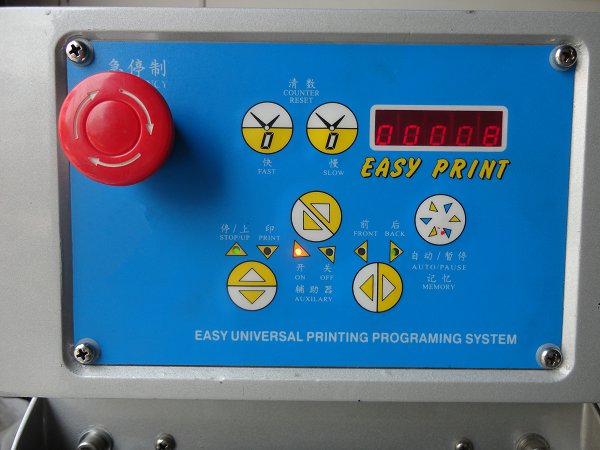

1. Microprocessor control for each function ;
2. 4-Digit auto counter built-in;
3. Coin aluminium structure ensures sturdiness;
4. Ink roller used for ink applying ;

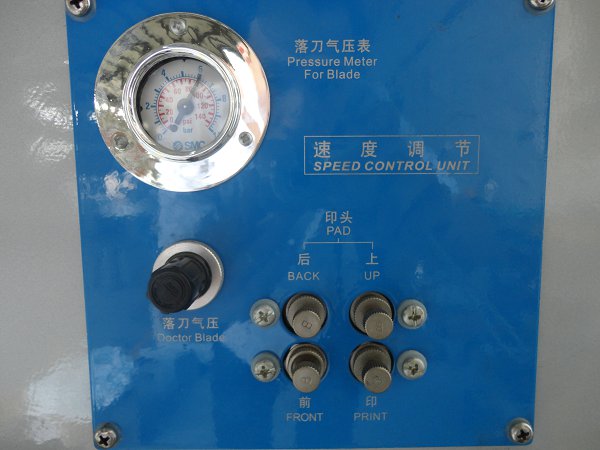

5. Independent stroke and speed adjustment for pad up/down;
6. Auto balanced doctor blade ensures that ink can be scraped cleanly and completely;
7. Adjustable printing speed meets different printing requirements;
8. Ink roller keeps working while pad doesn't lower down avoid ink dry;
9. 1-pad plus 1-ink tray ;
10. One ink trays can be adjusted separately.

Machine Fittings:
1. 6"*6" plates,6*8'' plates
2.One pads
3.One blades
4.a tool box.

Machine Updated Description:

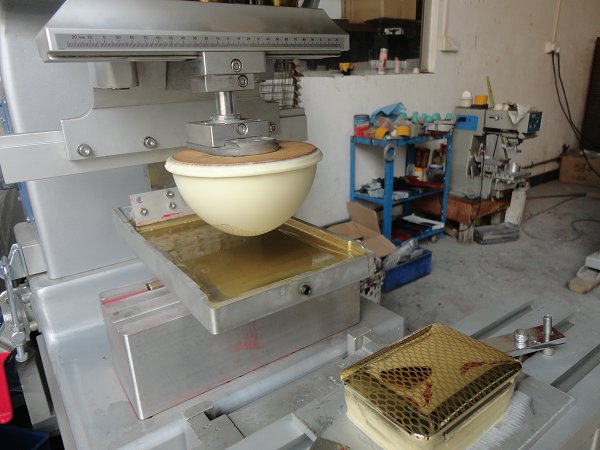

1: Ink tray system updated to ink well system for better environmental protection.
2: Ink tray could be widen to the size of 100*200,150*200mm,  200*200mm,250*200mm, 200*300mm for bigger printing size.
3: Equipped with SMC& Festo Pneumatic Parts
4: 200mm printing stroke with 80mm diamter cylinder.
5: Ink, Thinner (function as thinning the ink)

Application:

This pad printer is featured by the higher working capacity. It is also suitable for those products with high printing size requirements. The ink tray and rubber pads could be changed for multi color’s printing. Widely used for logo printing on surface such as electronic products, bucket lid, bottles lids, plastic shell, hardware products, stationary, gift set, artistic products, toys etc.
