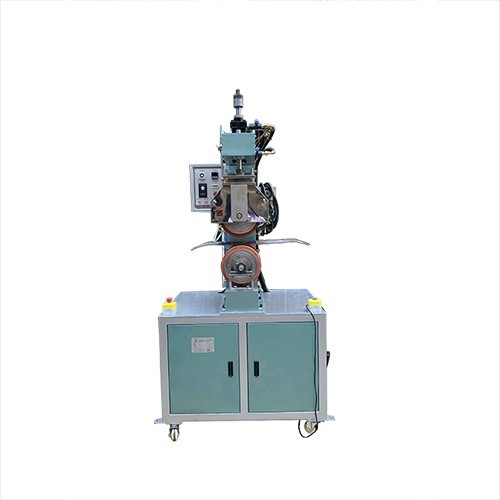

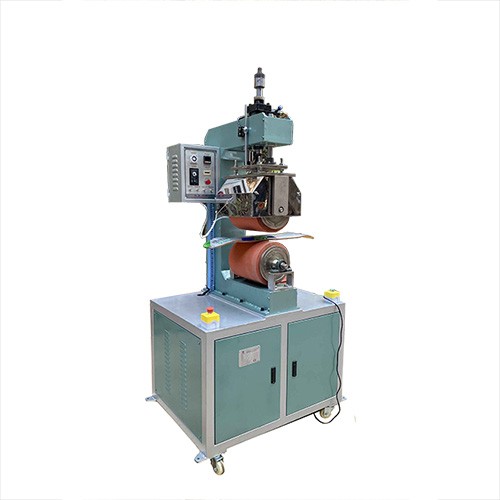

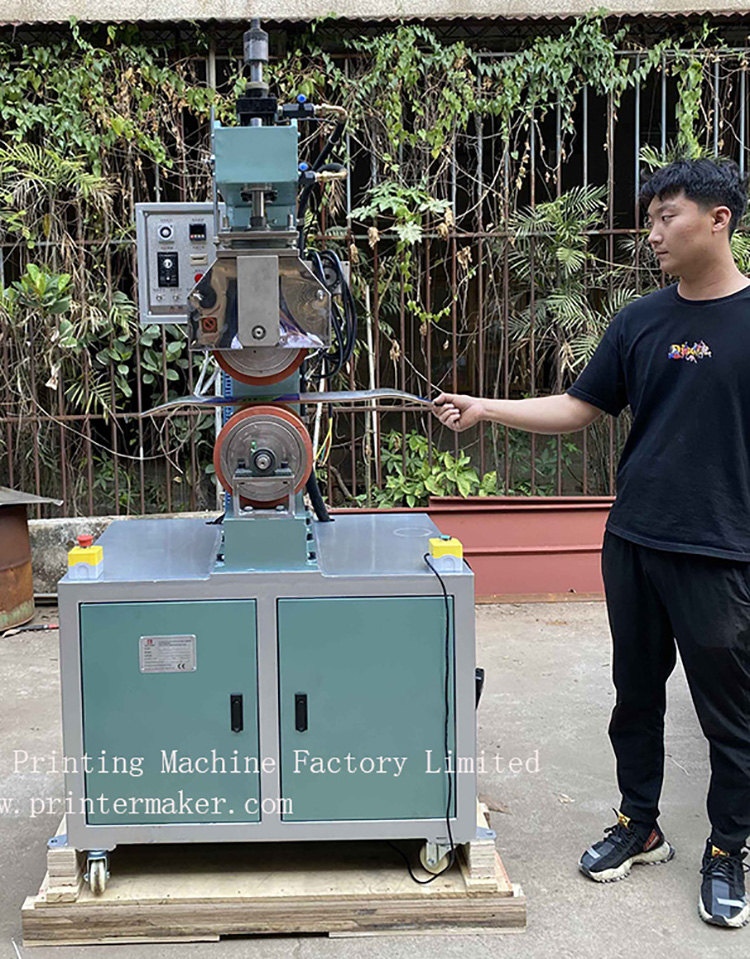

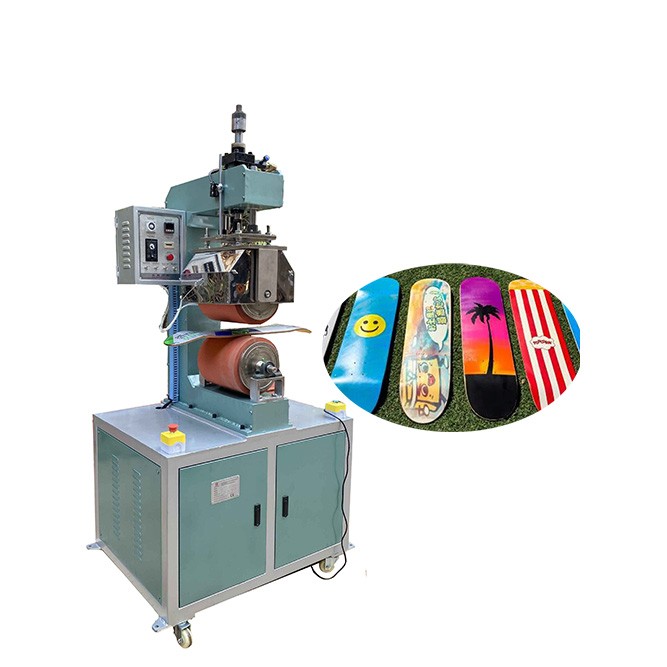

Hydraulic Heat Transfer Machine for Skateboard Deck

Parameter:

1:Heat Transfer Machine for Skateboard deck
2:Technology Parameters:
3:Max Printing Size:25cm*90cm
4:Max Printing Speed:5 times/minute
5:Max Printing thickness:5 cm
6:Machine Dimension:105cm*85cm*215cm
7:Machine Gross Weight:400KG; Net weight: 350KG
8:Hydraulic pressure: 10 tons
9:Roller size: 185*250*280mm, shore: 40&60
10:Heat Power:4 KW
11:Temperature Range:0-300C
12:Packing size:1250*1050*2200mm

Description:

This is the hydraulic heat transfer machine which is perfectly and specially designed for printing on the skateboard deck. Compare with the pneumatic heat transfer machines, it is with much bigger printing pressure at 10 tons.  It is no need to connect with the air pressure but simply connected to the power supply to start running and printing with the machine. Simple operation and high perfect printing quality are the reason why it is the present best-selling model for the skateboard deck’s printing.
