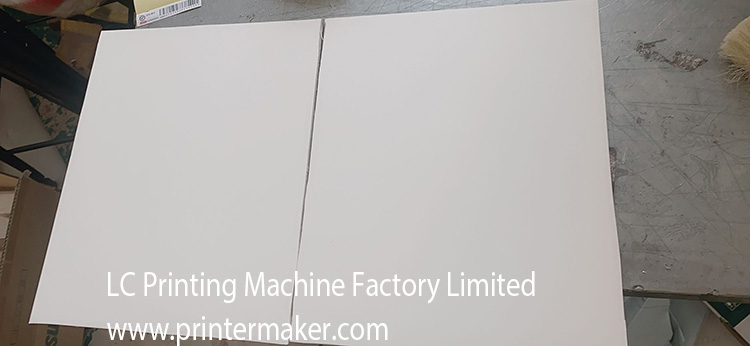

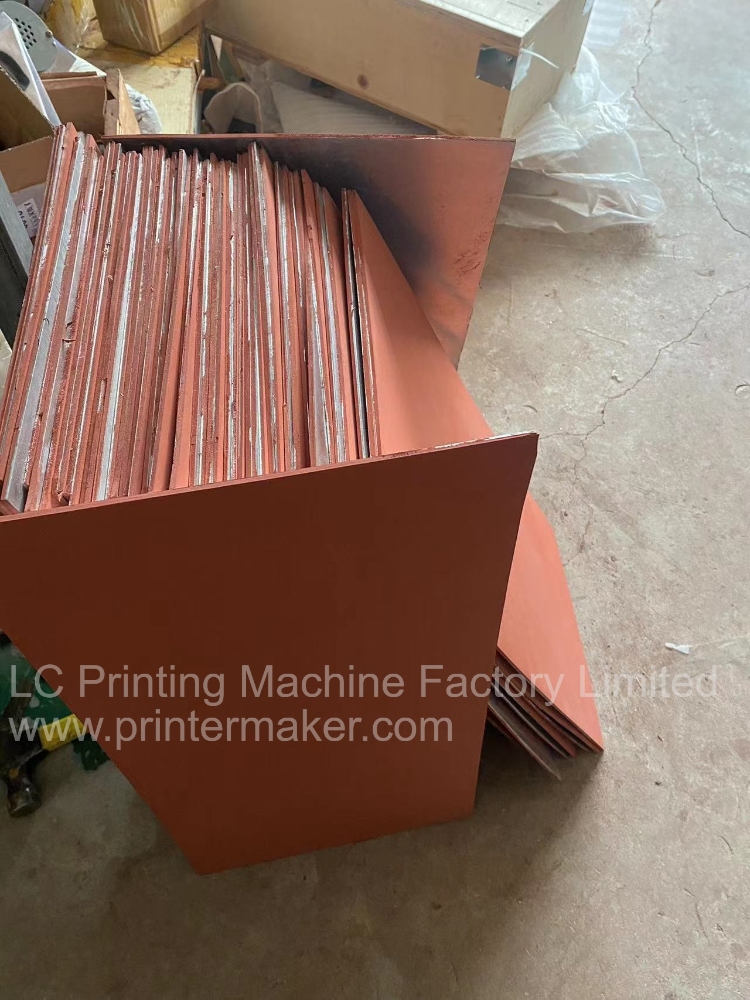

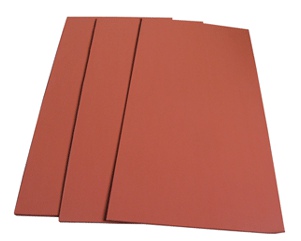

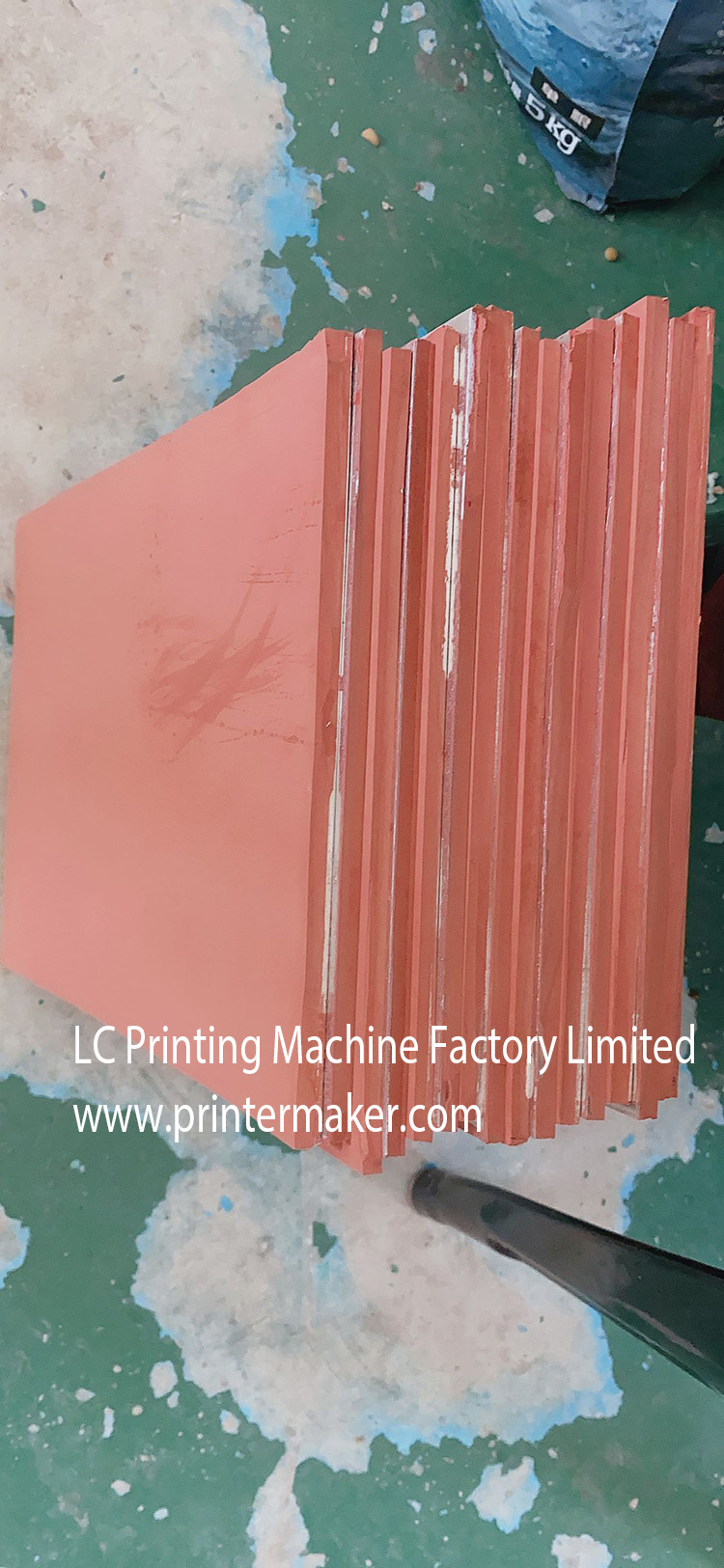

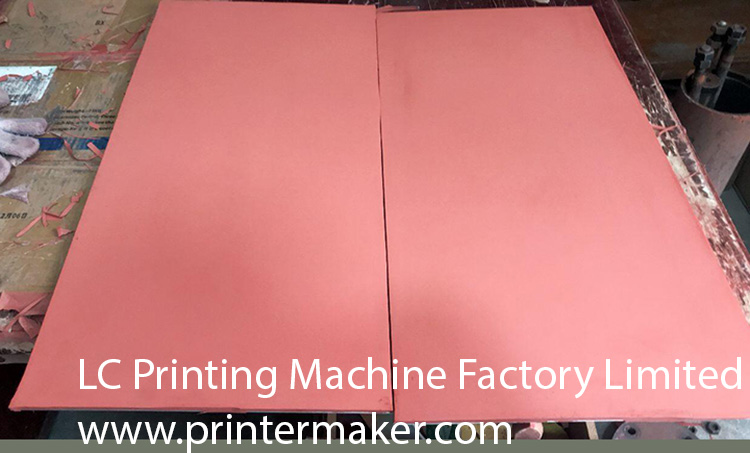

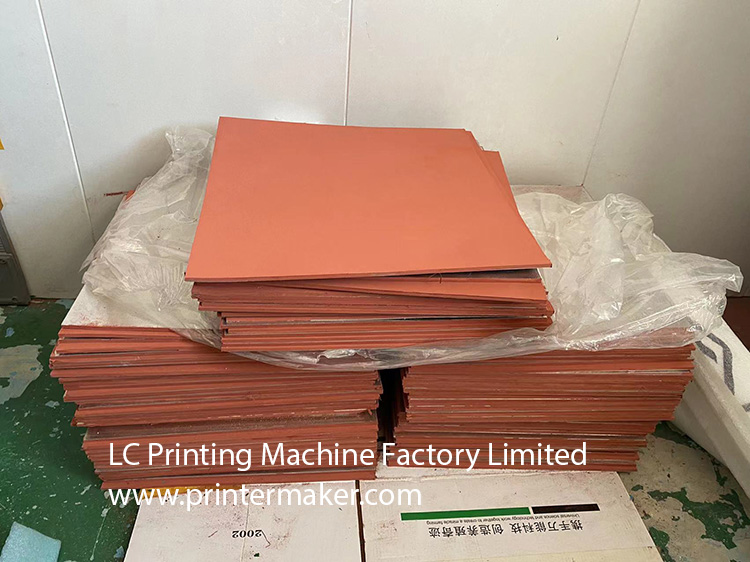

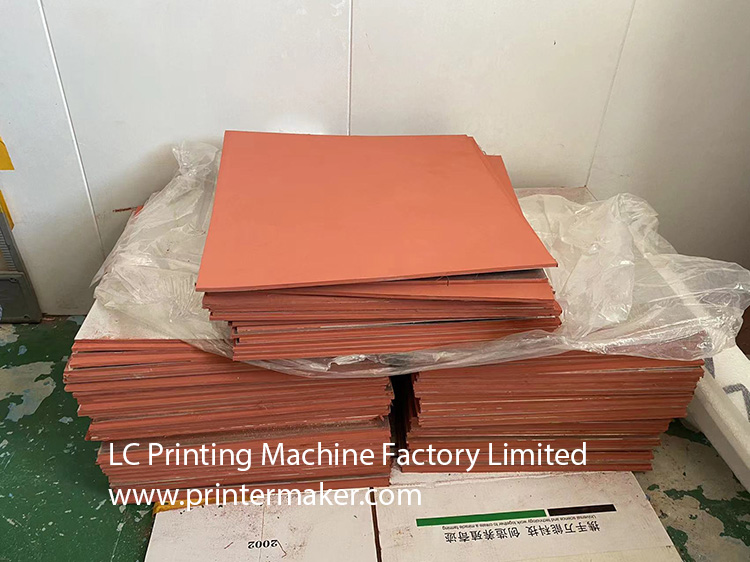

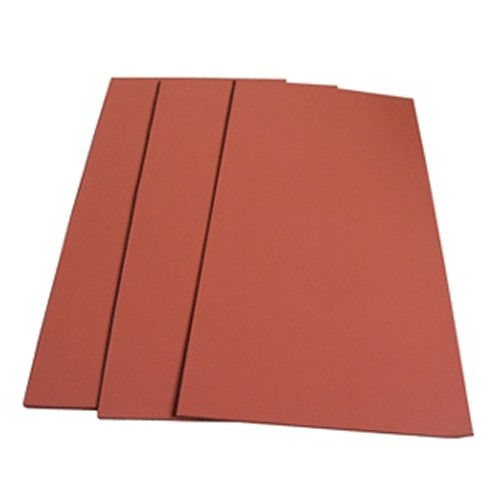

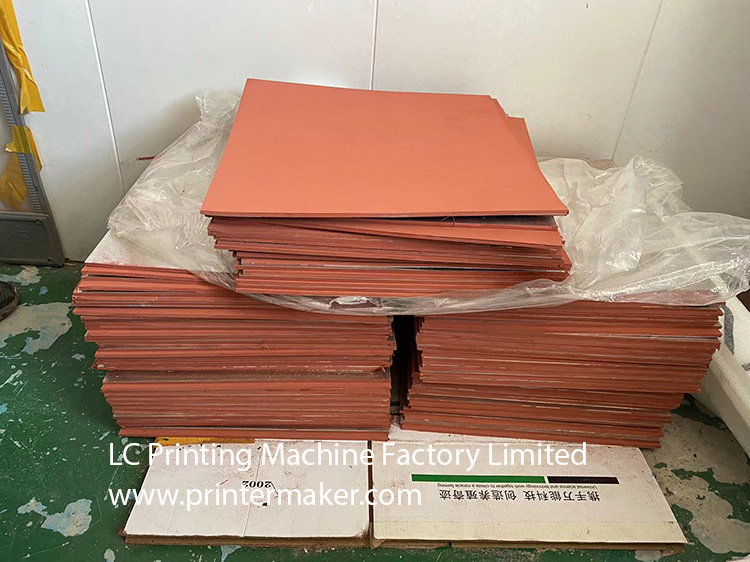

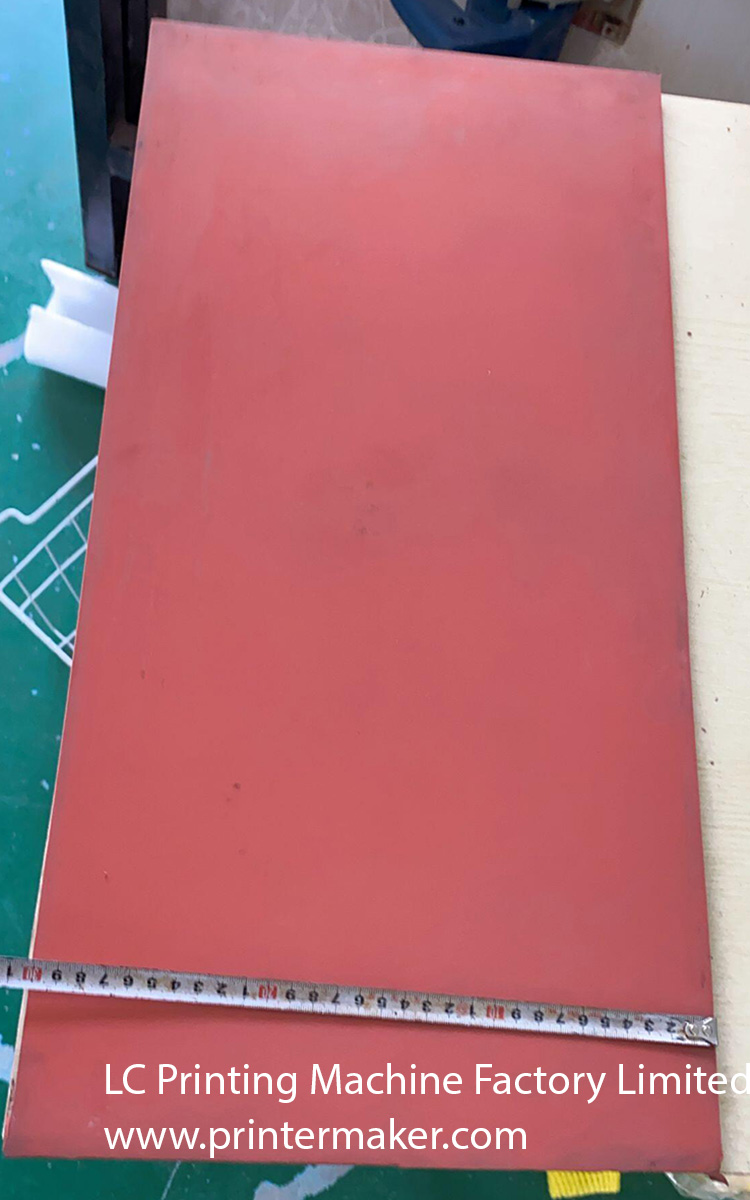

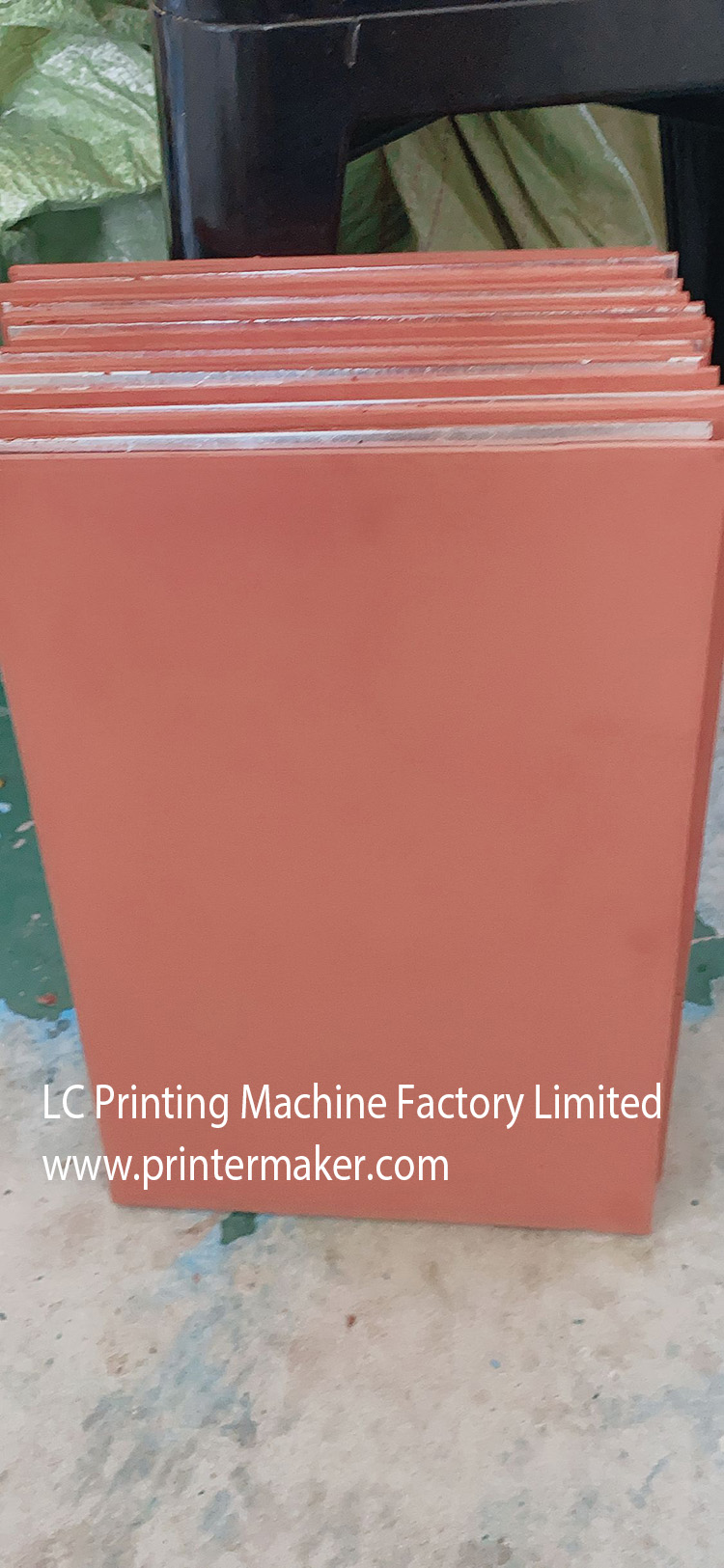

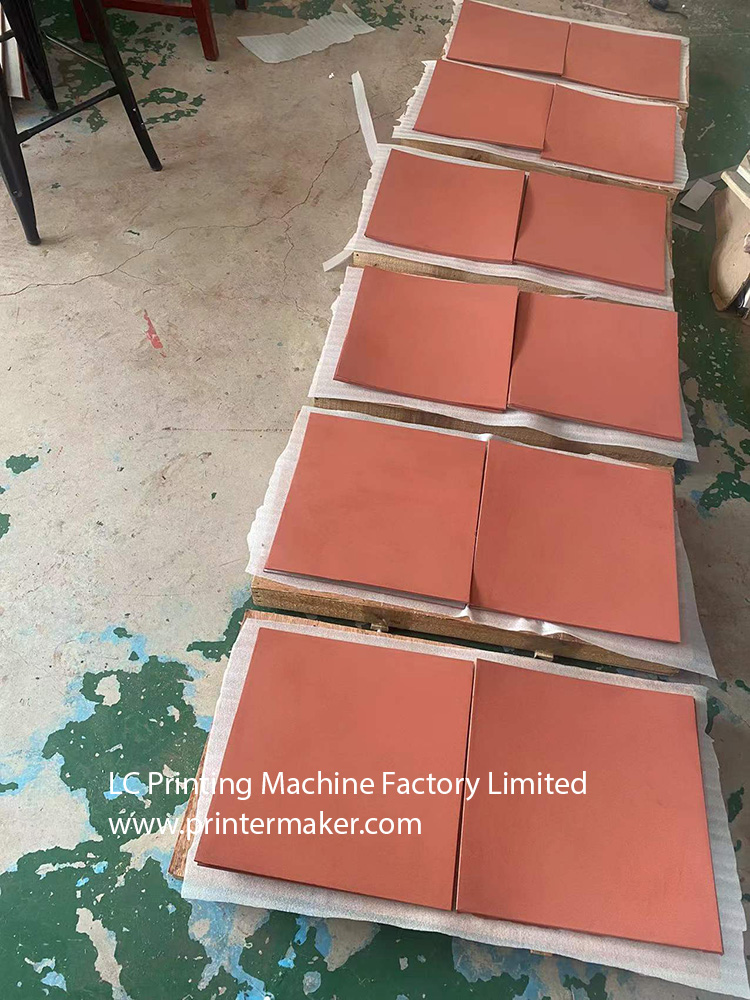

Hot Stamping Silicon Rubber Sheets

  • Model Number: Hot Stamping Silicon Rubber Sheets
  • Category: Hot Stamping Consumables
  • Views: 223
  • Product Description:Hot Stamping Silicon Rubber Sheets
  • PRODUCT DETAIL
Description:
hot stamping silicon rubber sheets'>Hot Stamping Silicon Rubber Sheets
Payment Terms:TT
Usage:
Gilding on words and Drawing which protruted on the surface of objects , For an exsample( car plate number).

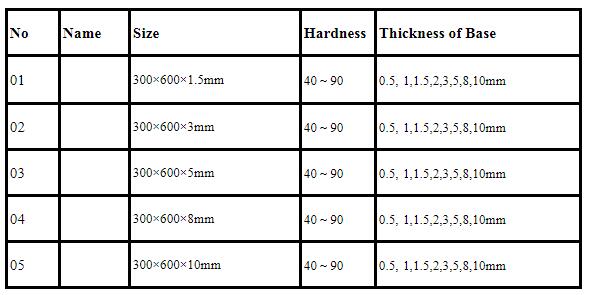

Technical Parameter:
Temperature range: 250-300℃;
Hardness:40-80;
Coefficient of heat conductivity:1-1.2therm/M.H.Degree;

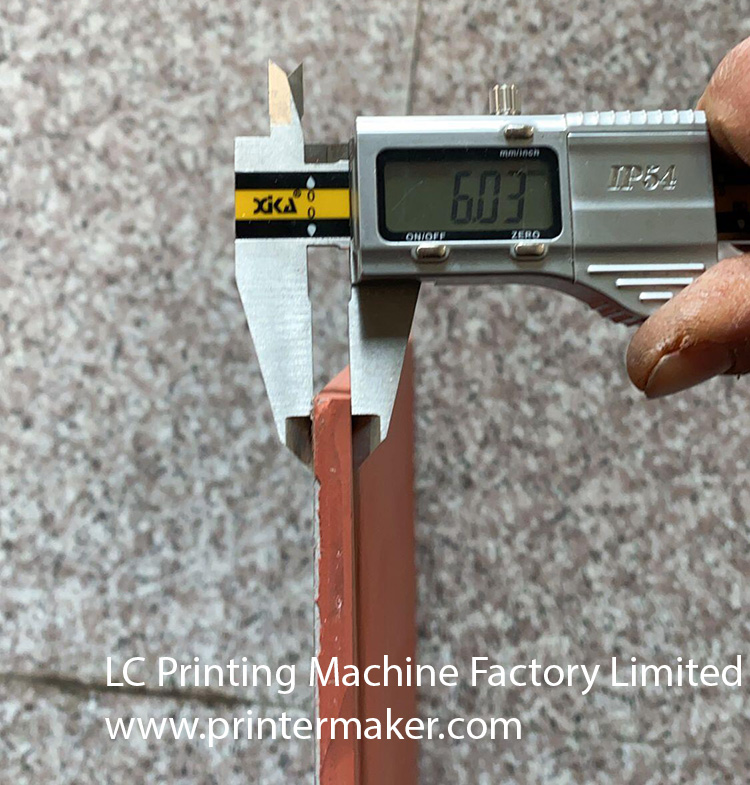

Thickness of silicon rubber: 3、4、5mm,10mm1.5mm;

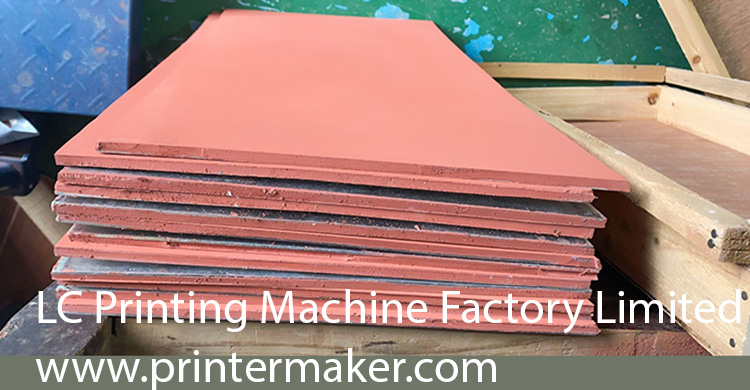

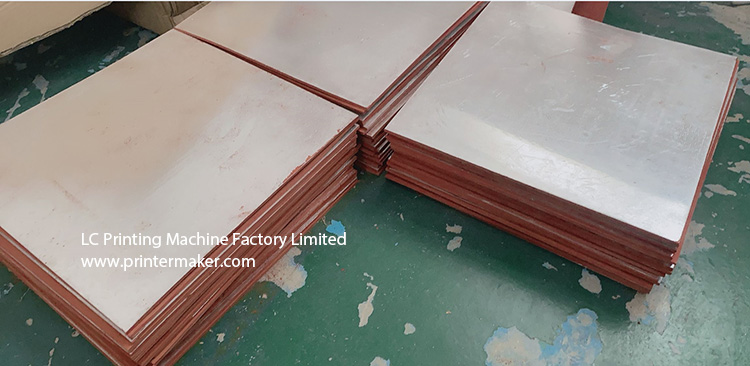

Thickness of Aluminium base: 10,8,5,3、2、1、0.5mm;
Standard size:300×600mm;

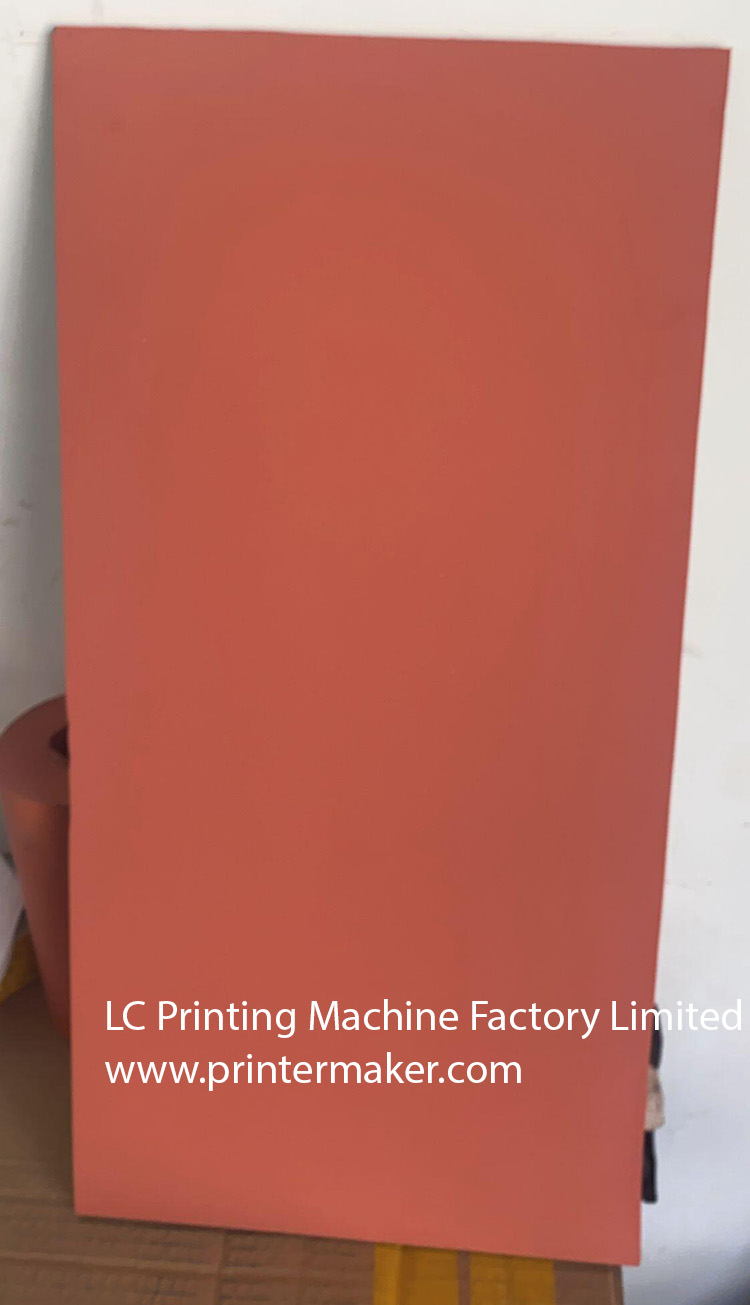

Colour:red,white.
Production Advantage:
Heat conductivity good;
Multi-hardness of silicon rubber layer to be choice;
Multi-thicness of silicon rubber layer to be choice;
Particular vulcanization process ensure long useful life;
High-strongly splicing make adhesive ability well;
Multi-thickness of aluminium base to be choice;
Deformation easily rebound elasticity;
Planeness good make pressure even.
Use Method:
Cut to fit size according to stamping area;
Adhere it to stamping head with high temperature paper, high temperature glue; screw;
Start stamping and take a test.
Storage:Keep flat on shady place without incompression
Shelf life:5 years.

Printing Plate type:Silicon rubber plate
