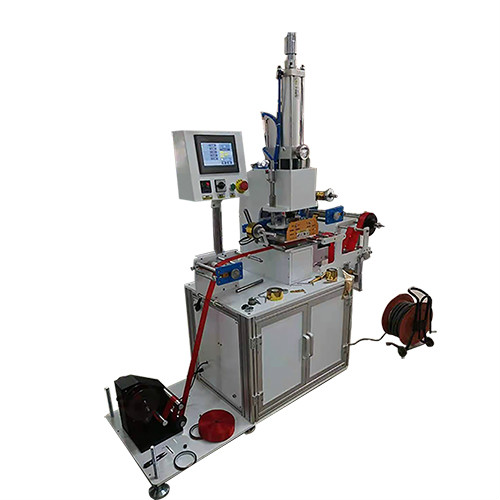

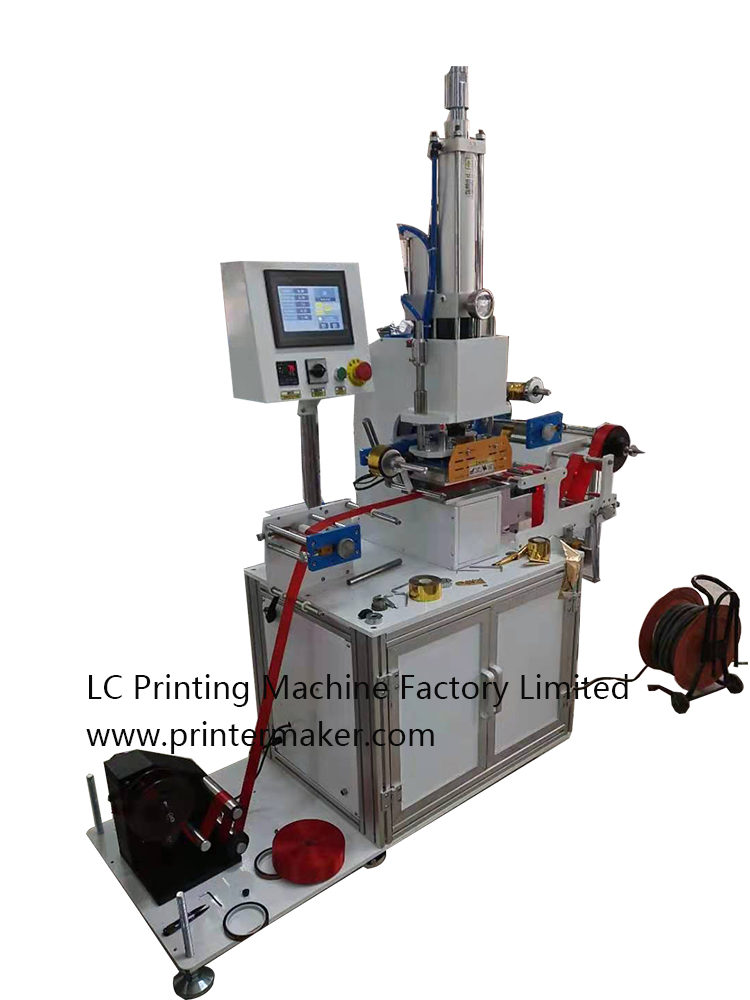

Product name:Hot Stamping Machine for Cloth Strip
Model Number: HSS-44Automatic Stamping Machine on Ribbons
Power supply: 220 V-50 Hz
Temperature: Max350 ° C
Speed: 40time / min
Table size : 230x150mm
Heating plate size: 230x150mm
The distance between printing centers: 150 mm
Pressing height : 50mm
Net weight: 310kg
Gross weight: 330kg
Model size: 1610 × 595 × 1870 mm
Package size: 1660 × 6050×1890mm
This Ribbon automatic hot stamping machine is suitable for foil printing on roll and reel material of plastic, fiber, ribbon, woven-label, leather, adhesive labels, etc.
The machine is mainly consisted of tension feeding section, hot foil printing stations, winding section and collector. The feeding system is capable of delivering material very evenly with good tension as equal as it is at the rewinder. And the foil printing head can be driven by hydraulic or pneumatic cylinder, it is optional by customer. And servo motor can also be applied for high speed printing with good precision. And the collector is set to rewind the well-printed reels of ribbon, etc.
1. One worker can operate more than one machines, it has automatic feeding and discharging systems.
2. Servo motor controls printing length.
3. It can automatically collect printed tapes.
4. PLC Control touch Screen operation
