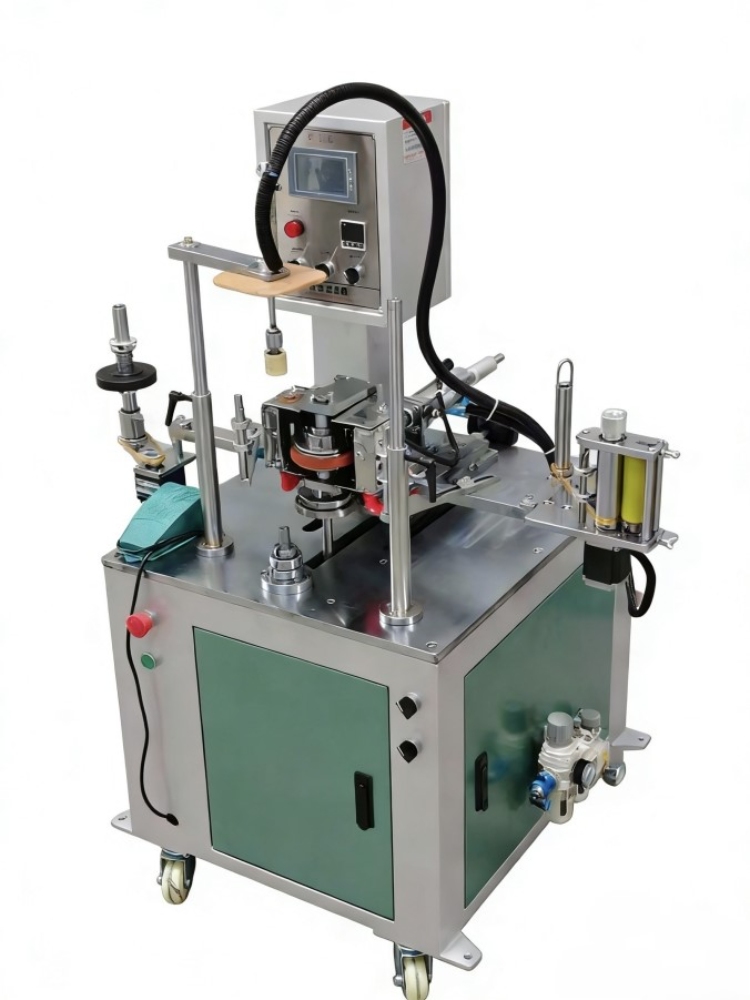

Horizontal Profile Hot Stamping Machine

Model NumberEASY-100EC
Product PriceUS$: negotiated
CategoryHeat Transfer Machine
Views552

Product Description

Closed-loop motor controls the circular motion of the jig, and pressure reducing valve realizes R-angle transition;Suitable for products requiring side circumferential hot stamping, such as cosmetic

Specification:
1. Machine Name: Horizontal Profile Hot Stamping Machine
2. Model: EASY-100EC
3. Max. Printing Area: 50mm
4. Max. Processing: 180mm
5. Control System: PLC + HMI;
6. Special Features: Closed-loop motor controls the circular motion of the jig, and pressure reducing valve realizes R-angle transition;
7. Typical Applications: Suitable for products requiring side circumferential hot stamping, such as cosmetic caps and daily plastic products.
8. Power Supply/Total: 220V / 50Hz / 2000W
9. Air Pressure: 0.4 – 0.6 MPa

10. Dimensions/Weight: L 1.2 × W 1.1 × H 1.5m / 200kg
