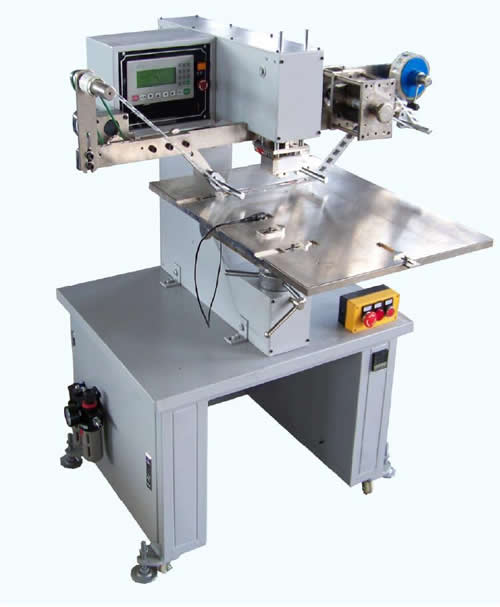

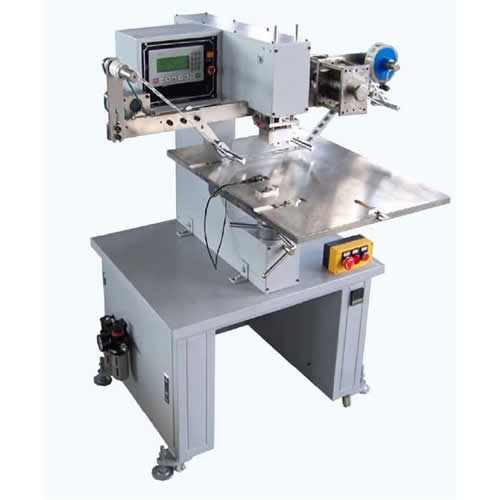

Holograme hot stamping machine for currency box

  • Model Number: AHH-5050
  • Category: Hot Stamping Machine
  • Views: 234
  • Product Description:Holograme hot stamping machine for currency box
  • PRODUCT DETAIL
  • Video

Product name:Holograme hot stamping machine for currency box

Model Number: AHH-5050

Description:
Holograme hot stamping machine for currency box
1. Heating area: 50x50mm
2. Bend throat gap: 380mm
3. Heat head stroke: 40mm
4. Maximum workpiece height: 30mm
5. Heating power: 200W
6. Servo motor: 200W
7. Power: 220V50Hz
8. Heat sealing temperature: room temperature -399 °
9. Heating plate lateral adjustment: 16mm
10. Heating plate longitudinal adjustment: 12mm
11. Table horizontal adjustment: 60mm
12. Table longitudinal adjustment: 60mm
13. Table size: 680x900mm

14. Dimension: 700x800x1200mm

Holograme hot stamping machine for currency box
