Round/Flat Heat Transfer Machine

  • Model Number: HT-300
  • Category: Heat Transfer Machine
  • Views: 750
  • Product Description:Heat Transfer Machine for Cylindrical Products Round/Flat Heat Transfer Machine
  • PRODUCT DETAIL

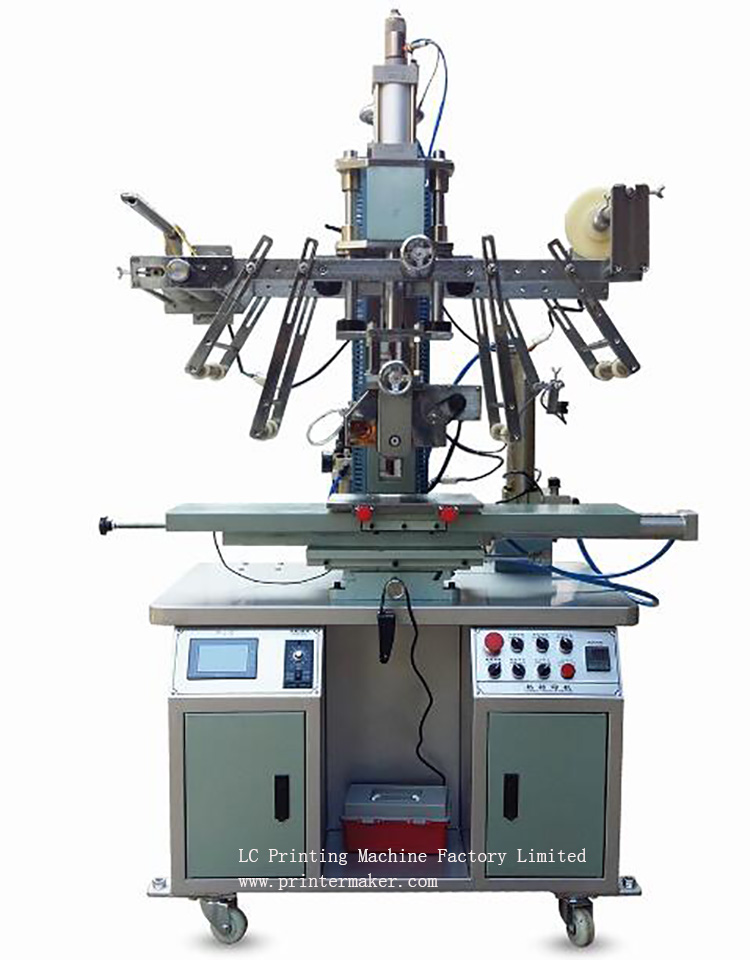

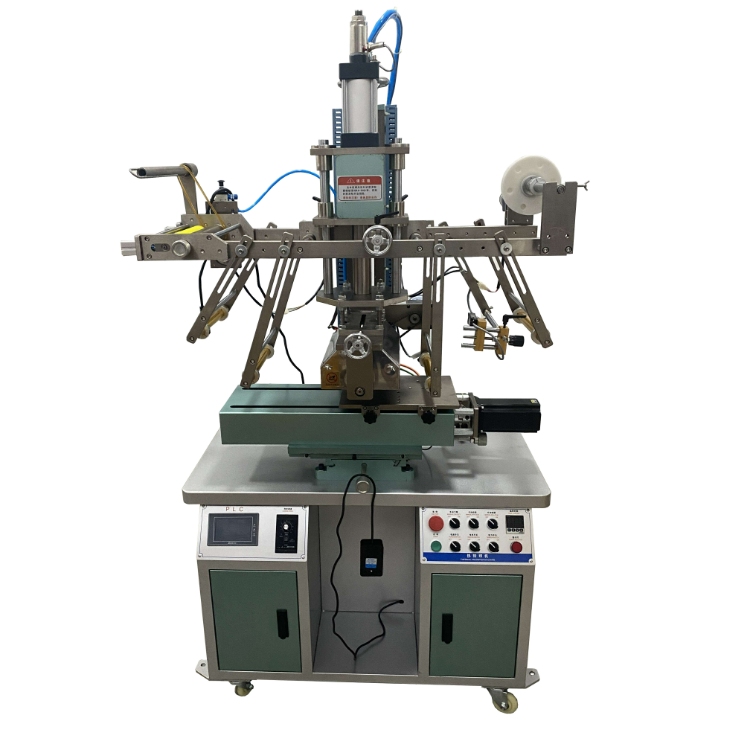

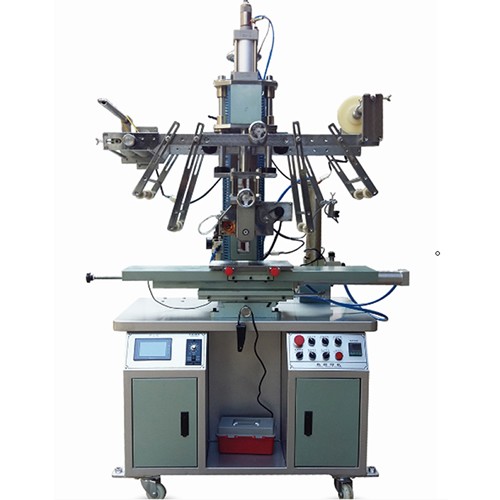

Product name:Round/Flat Heat Transfer Machine

Model Number: HT-300

Product name:Round/Flat Heat Transfer Machine
Model Number: HT-300
Parameter:
Heat Transfer Machine for cylindrical products
1:Max. transfer area: 240mm × 300mm
2:Max. diameter of product: Ф 150mm
3:Heat Transfer head stroke: 80mm
4:Heat Transfer temperature: room temperature 0 ℃~ 399 ℃
5:Heat Transfer pressure: 200-300kg
6:Heating power: 2000W
7: Power Rate: 2500W
8: Power supply: 220 V 60 / 50 Hz
9: Air pressure: 5-7bar
10:Weight: 350kg
11: Machine size: 1350 * 900 * 1850 mm

Equipment accessories brandn
1. Lifting cylinder : AirTec
2. Thermostat 3A joint venture
3. Carriage cylinder, three ring road, mainland China
4. PLC Taiwan
5. Rubber roller motor: Panosonic
6. Photoelectric switch, Yangming, Taiwan
7: Stepping motor, China Brand
8. Solenoid valve, AirTec
Application:

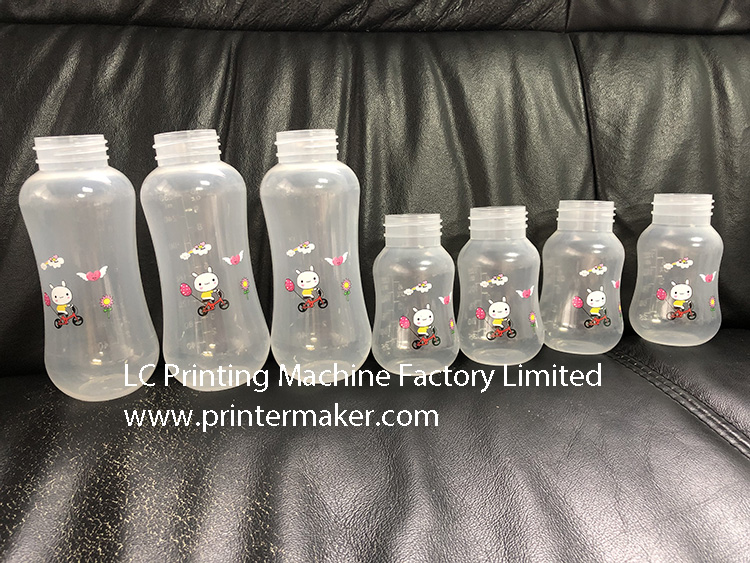

This machine is fitting on both round and flat cylindrical shape botles, beer cups, plastic jars, cups, plastic boxes heat transfer printing.
