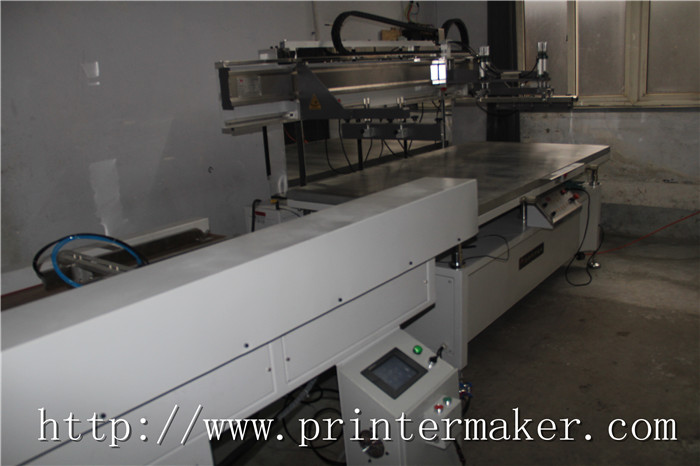

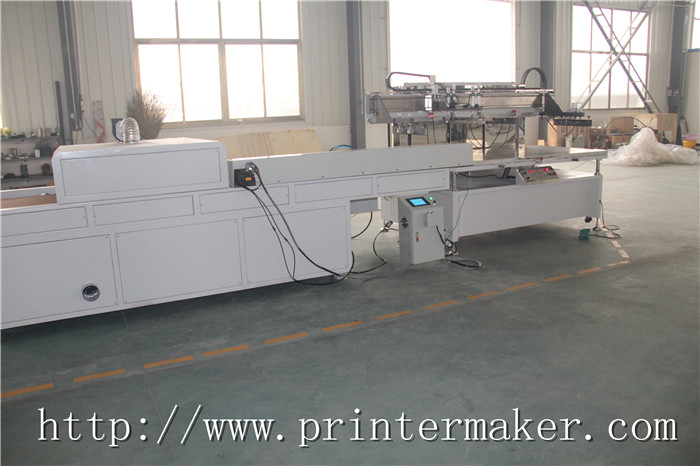

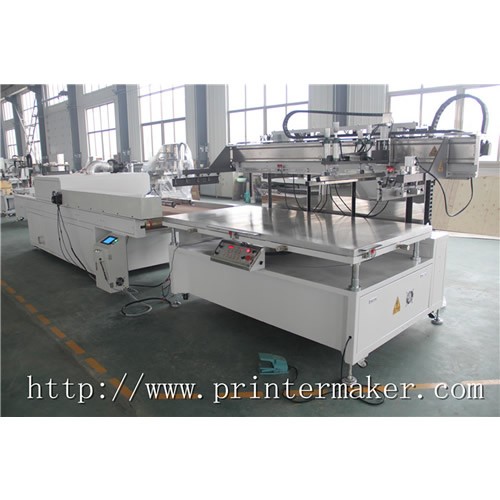

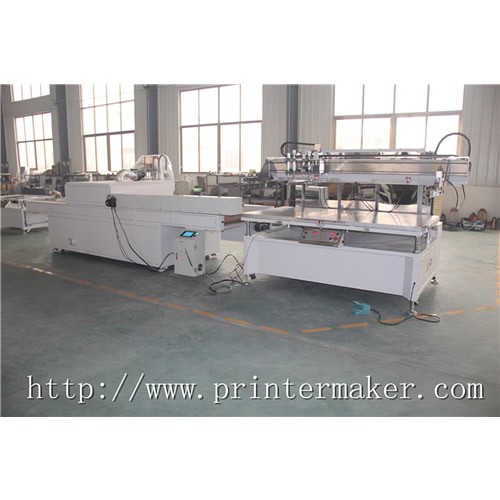

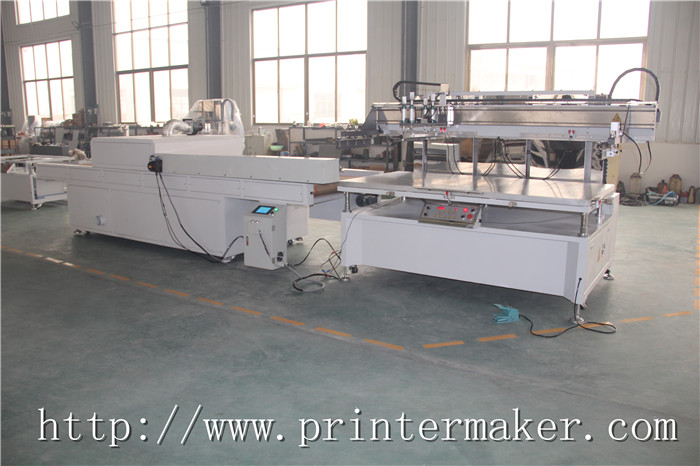

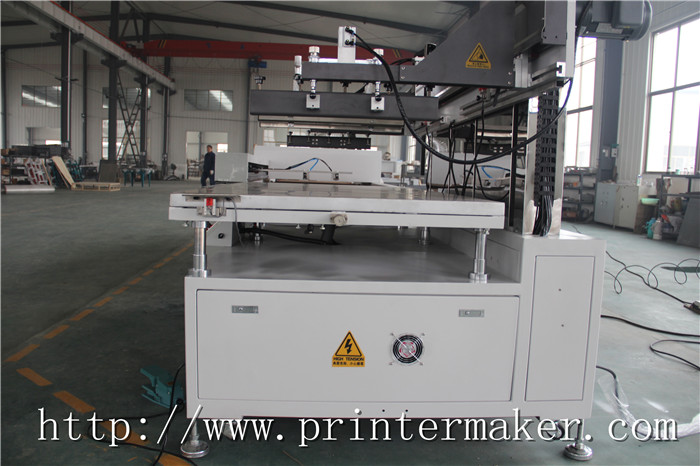

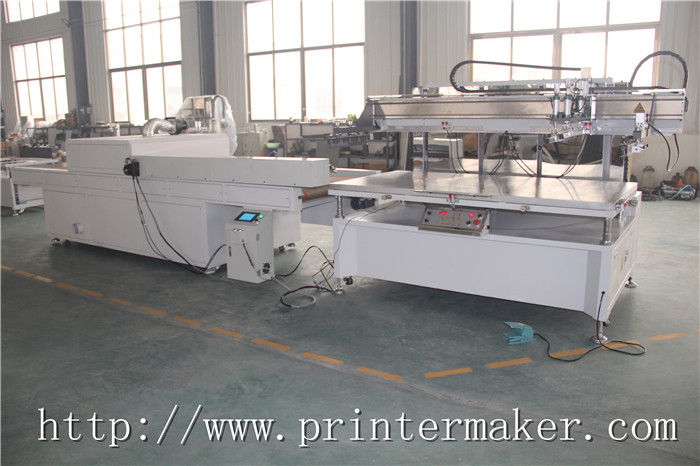

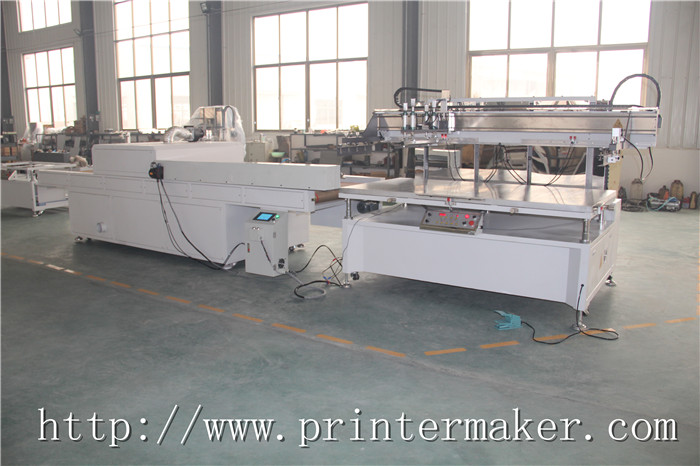

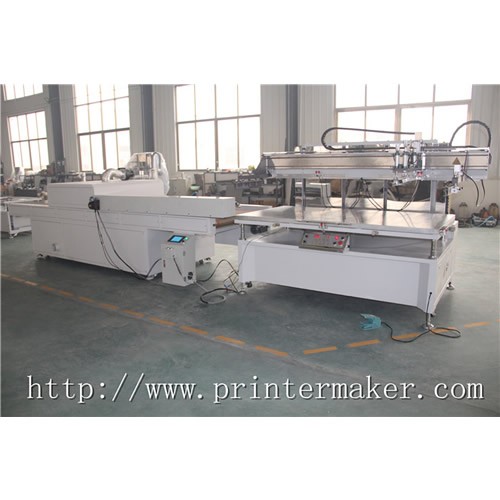

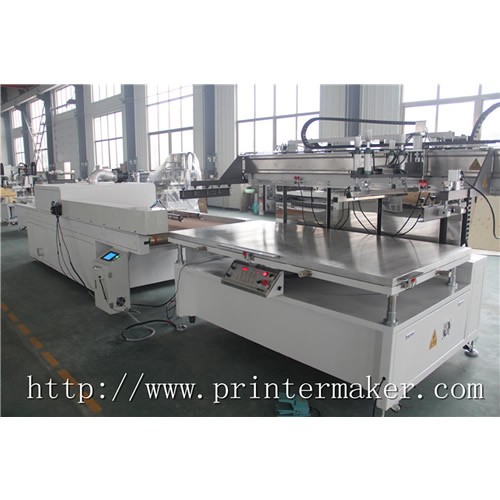

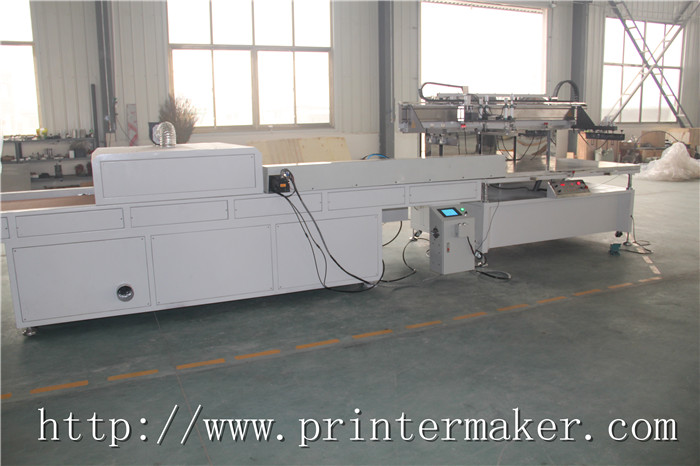

Flat Bed Screen Printing Machine with Auto Unload System and IR Tunnel

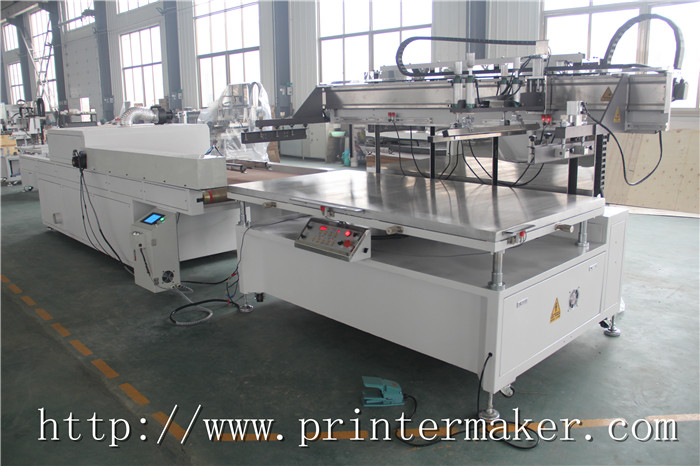

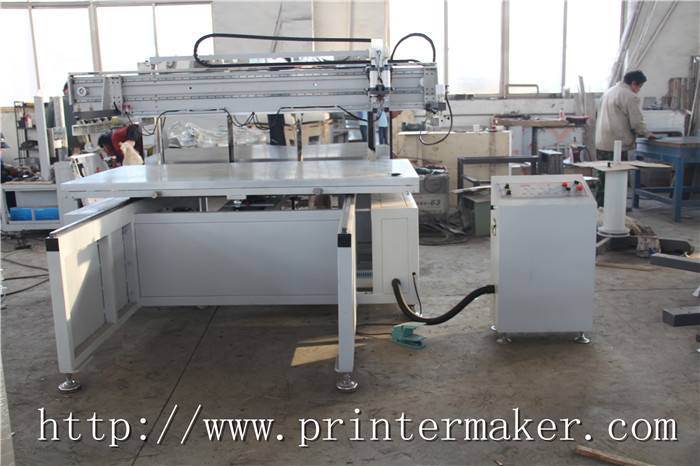

Large Size Automatic Flatbed Silkscreen printing machine
Mode:ASP-10200

Parameter:
1. Max. printing speed: 800‑1500 pcs/h
2. Printing area: 1000 × 2000 mm
3. Working table size: 1100 × 2100 mm
4. Max. screen frame size: 1350 × 2430 mm

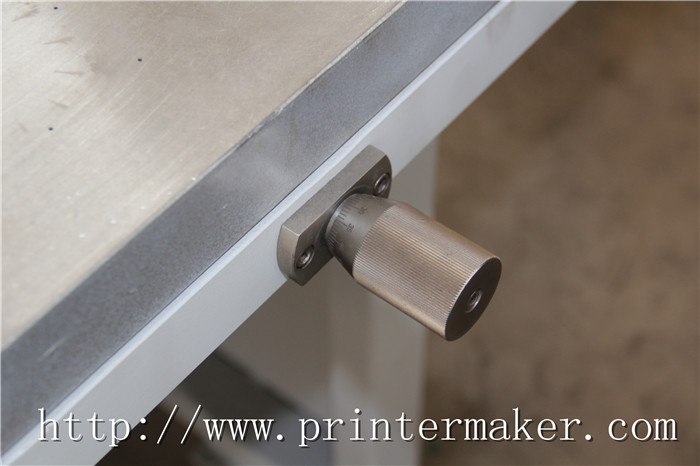

5. Working table positioning accuracy: ±0.05 mm
6. Max. printing workpiece thickness: 30 mm
7. Overprint registration accuracy: ±0.01 mm
8. Power supply & rated power: AC380V, 5.6 kW
9. Equipment weight: 750 kg
10. Overall machine dimensions: 2700 × 1450 × 1680 mm


Machine configuration：
1. The machine lifting reducer adopts Hangzhou Jiepai 120 type, and the main motor adopts Taiwan Datong Motor.

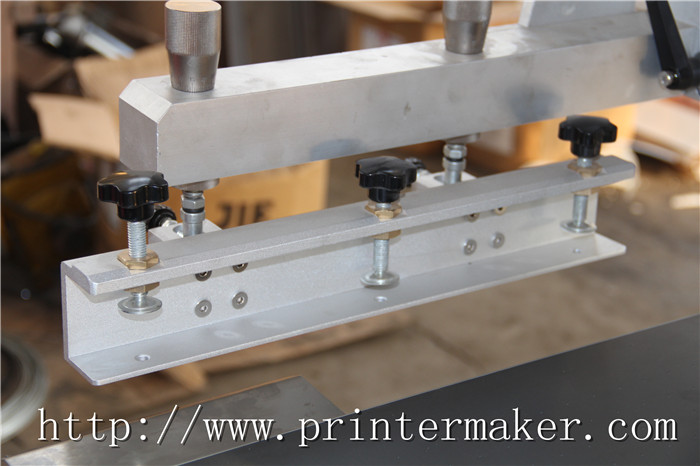

2. The horizontal scraper motor adopts Haoxin gear reducer, and the transmission toothed belt adopts Italian McGaudi.
3. The guide rail and the slider adopt Taiwan High-precision products of silver.

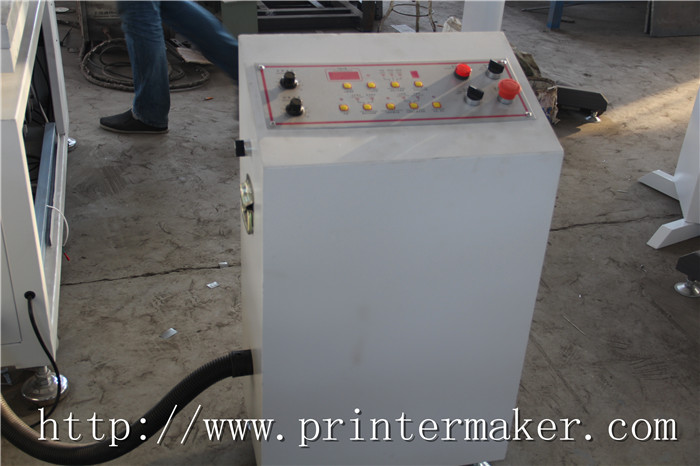

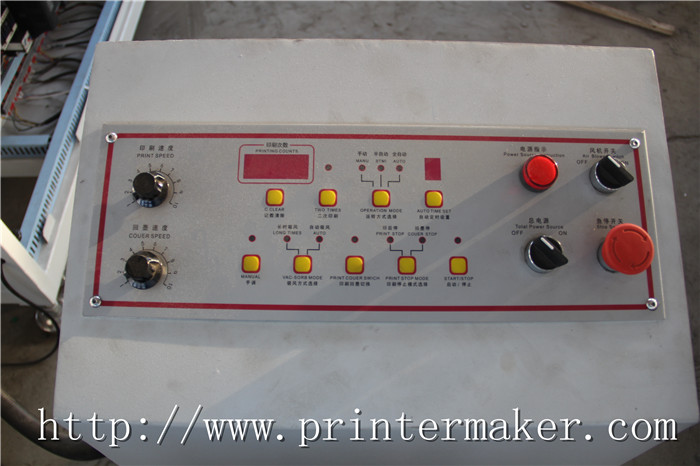

4. The main engine adopts Taiwan Shilin double frequency converter, the electric appliance adopts the domestic first-line brand Zhengtai Electric Appliance, and the induction switch adopts Taiwan Yangming photoelectric switch. The performance of the whole machine is stable and reliable.
5. The frame is welded with high-strength thick-walled steel pipes, and the machine runs smoothly.
6. Platform accuracy diagonal flatness ±0.3mm

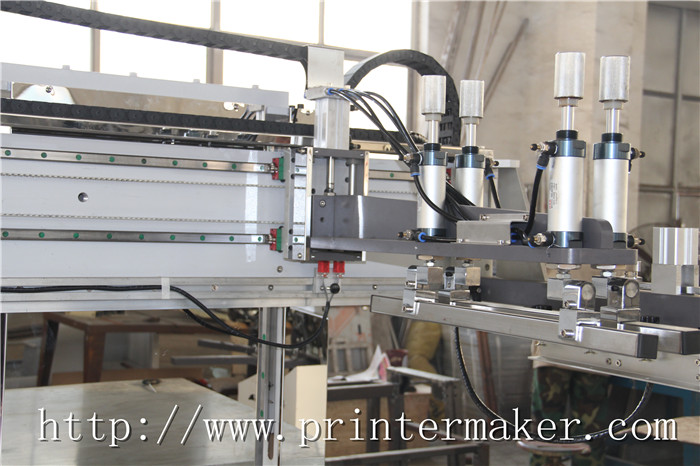

Auto Offloading Robot
Parameter:
1. Dimension : 3.2 m × 1.2 m × 0.3 m
2. Power Supply: AC220V
3. Rated Power: 1200W
4. Reciprocating Positioning Accuracy: ±0.5 mm
5. Drive Motor: Stepping Motor
6. Adjustable Robot Offloading Stroke

Features:
1. Fast running speed with precise positioning
2. Single‑person operation available
3. Automatic material picking to reduce manual labor
4. Greatly improve printing production efficiency
5. Output capacity: up to 800 pcs/h for vertical screen printing machine; up to 1380 pcs/h for inclined screen printing machine (subject to printing size)

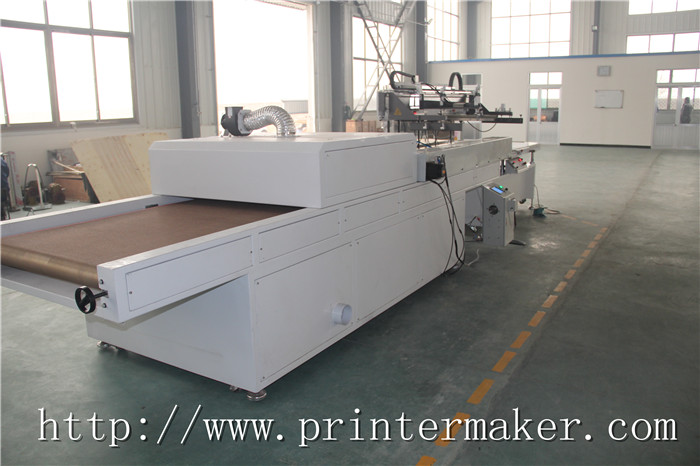

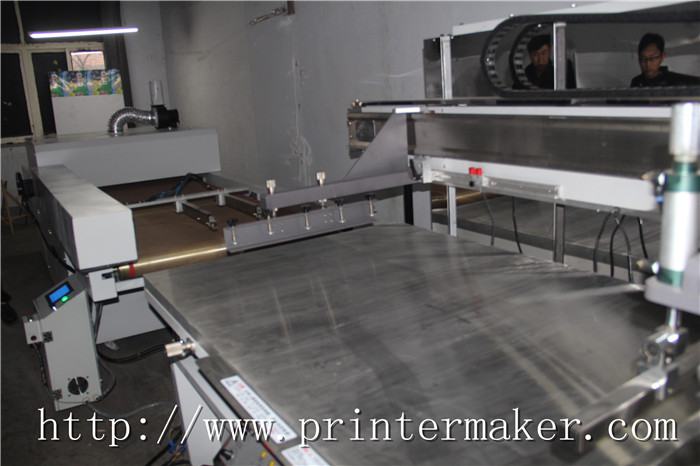

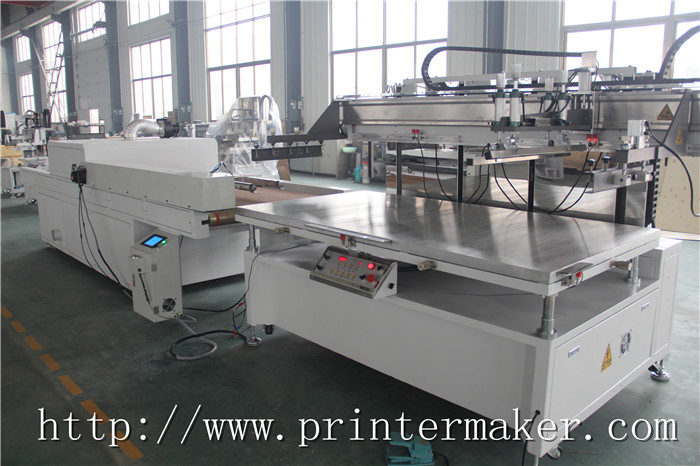

UV curing machine UV
Parameter:
1. Model: UV curing machine
2. Curing chamber length: 3 m
3. Max. product thickness: 0‑50 mm
4. Conveyor belt width: 1000 mm
5. Overall dimension: 6500 × 1160 × 1000 mm
6. UV Lamp power: 5.6 kW ×3 sets =17 kW
7. Power Supply: AC380V
8. Equipment weight: 950 kg

Application:
1. Widely used in electronic appliances, advertising, packaging and printing, sports equipment, toys, stationery gifts, various transfer paper, various PVC, PET, PC and other soft/hard films, various boards, films, paper, nameplates, keyboards, instruments, glass, flexible PCB, mobile phone lenses, electronic products, precision signs, various decals, various silicone buttons, advertising decoration, etc.
2. Suitable for precision screen printing and high-precision fine-screen printing of films, cards and plates of various thicknesses.
