LC Printing Machine Factory Limited

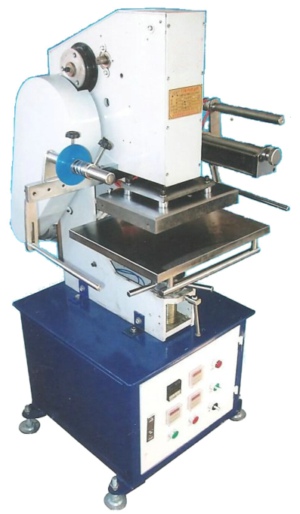

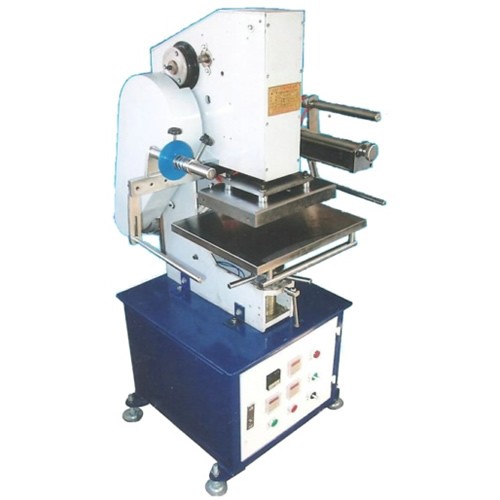

Electric and Mechanical Hot Stamping Machine

  • Electric and Mechanical Hot Stamping Machine
  • Electric and Mechanical Hot Stamping Machine
  • Electric and Mechanical Hot Stamping Machine
  • Model Number: H-TC-156/190/210/250
  • Category: Hot Stamping Machine
  • Views: 395
  • Product Description:Electric and Mechanical Hot Stamping Machine
  • PRODUCT DETAIL

Product name:Electric and Mechanical Hot Stamping Machine

Model Number: H-TC-156/190/210/250

Description:
Electric and Mechanical Hot Stamping Machine
Specifications︰
H-TC-156
1. Hot plate area:156× 300 mm
2. Working table area:320 ×400mm
3. Max printing pressure:2,000-3000 Kg
4. Up and down distance:45mm
5. Heat wattage:1000W
6. Foil in feed: Motor Drive
7. Temperature adjustment:0-300oC .
H-TC-190
1. Hot plate area:190 × 270 mm
2. Working table area:320 ×400mm
3. Max printing pressure:2,000-3000 Kg
4. Up and down distance:45mm
5. Heat wattage:1000W
6. Foil in feed: Motor Drive
7. Temperature adjustment:0-300oC .
H-TC-210
1. Hot plate area:210 × 290 mm
2. Working table area:320 ×400mm
3. Max printing pressure:2,000-3000 Kg
4. Up and down distance:45mm
5. Heat wattage:3000W
6. Foil in feed: Motor Drive

7. Temperature adjustment:0-300oC .

H-TC-250

1. Hot plate area:250 × 300 mm
2. Working table area:320 ×400mm
3. Max printing pressure:2,000-3000 Kg
4. Up and down distance:45mm
5. Heat wattage:1000W
6. Foil in feed: Motor Drive
7. Temperature adjustment:0-300oC .
Advantages:
1.Vertical Pressure design ensures big pression;
2.Capable of adjusting the stamping pressure, the temperature and the speed;
3.Worktable slight adjustment ensure precision stamping;
4.The height of the stamping head adjustable ;

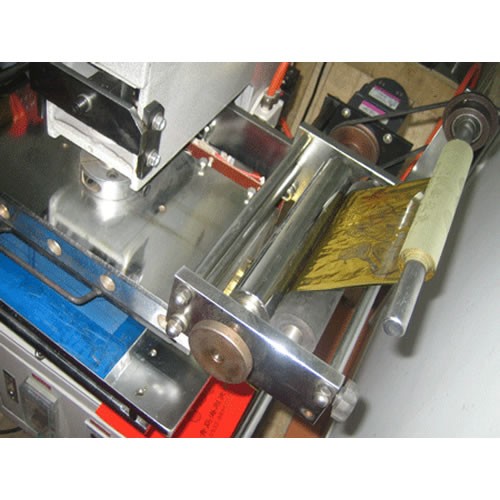

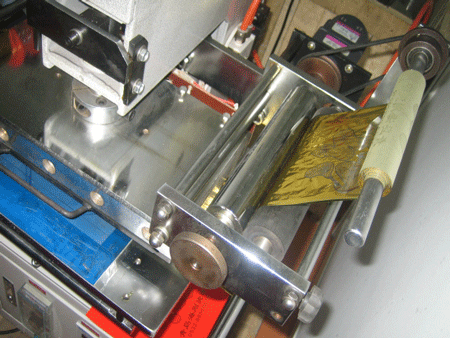

5.Automatic foil feeding and collecting.
6.Photecell installed to finsih heat transfer process.
7. Perfect for embossing quality.
Machine Fittings:
1. Silicon Rubber Edition 1 Pic
2. High temperature paper 1 inch
3. Stamping foil 1 roller
4. English operation instruction one Pic
5. Tool box 1 pic.
Package List:
1. Package dimension:730×730×1350mm

2. Gross weight: 365kg

Electric and Mechanical Hot Stamping MachineElectric and Mechanical Hot Stamping MachineElectric and Mechanical Hot Stamping Machine

Inquery now
