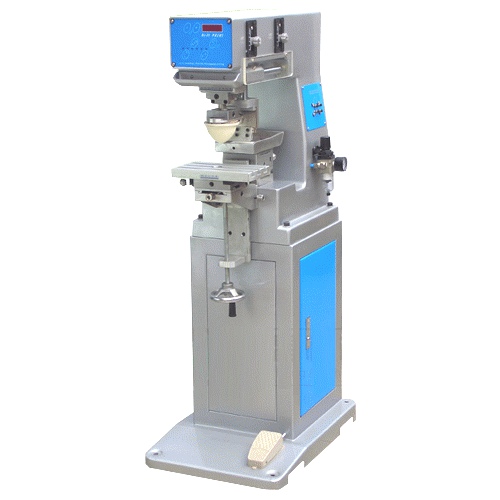

Economical 1 Color Pad Printing Machine

  • Model Number: EP1-100
  • Product price: US$:negotiated
  • Category: Tampo Printing Machine
  • Views: 4133
  • Product Description:Economical 1 Color Pad Printing Machine
  • PRODUCT DETAIL
  • Video

Product name:Economical 1 Color Pad Printing Machine

Model Number: EP1-100

Description:
Economical 1 Color Pad Printing Machine
The shape of this machine is small and high printing speed.It is easily installed in workshop, small footprint,In china,lots of factories choose this machine at present.It is
suitable for printing electronic product,platic shell,hardware product,stationery,logo on the surface of small arts and crafts and so on
Specification
1.steel plate size: 100*100mm
2.Printing speed: 2500pcs/hr
3.Power:220V 50-60HZ
4.Air pressure: 5-7bar
5.Action model option: fully automatic/semi-automatic/ Self-Programming
6.Start-up method:panel/foot switches
7.Scraper working style: Pneumatic mechanical valve drives cylinder up and down
8.Max.printing area:80*80MM
9.Printing workstation: 1PCS
10.Net weight : 70Kg
12.Shape dimension:58*42*115*cm
Package List
Wooden case :55*75*145mm
Gross Weight : 100Kg
Machine Fittings
1.One pad
2.One steel plate
3.One Manual in English
4.One blade
5.One set of tool
Feature
1. SCM IC complile action program,kinds of printing model options
2. Auto 4-digit counter built-in,and stat. Printing quantity
3. Airframe adopts coin alloy,and metal coating surface
4. Worktable,plastic head and ink tray can be adjusted X.Y.Z direction
5. Sucking ink and the pressure of printing pad can be adjusted independently .
6. The distance of scratching ink is adjustable
7. It has function of leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
8.The speed of all the cylinders have an independent regulator intortum
9.Adopts original Taiwan Airtac pneumatic component
10.Each adjustable location has scale logo
11.The machine is running fastly,it is steady and low voice
Price Terms : FOB Guangzhou
Payment Terms : Western Union ,T/T or L/C
Packing : Wooden case
Lead Time : Within 3 days

Standards Certificate : ISO9001-2000,CE

Economical 1 Color Pad Printing Machine
