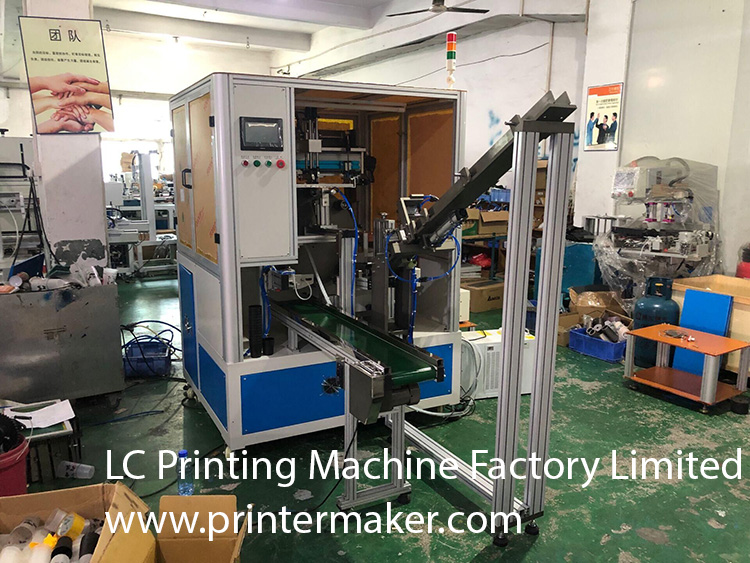

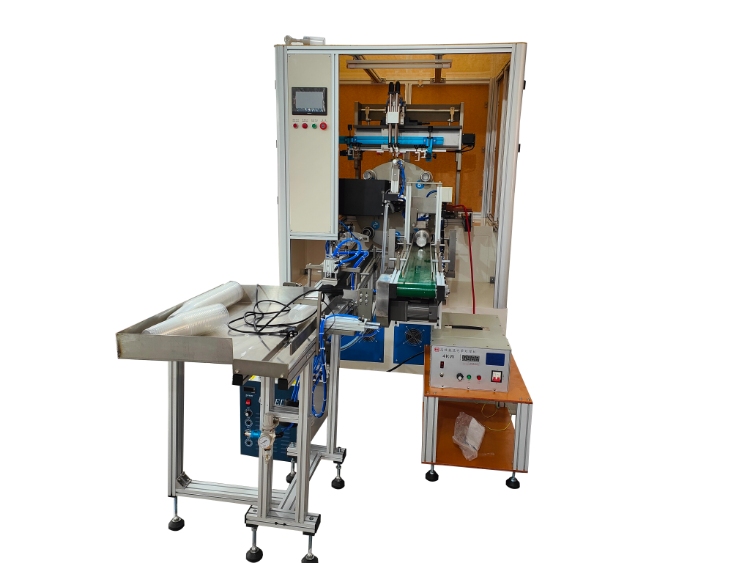

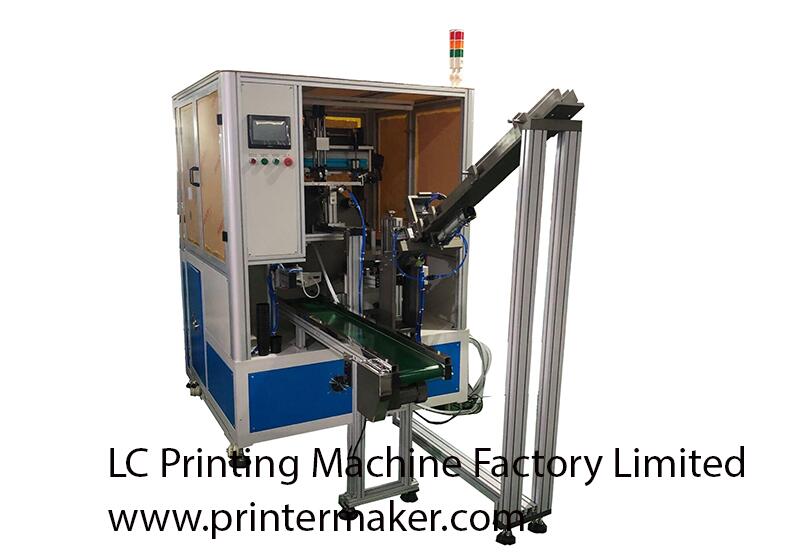

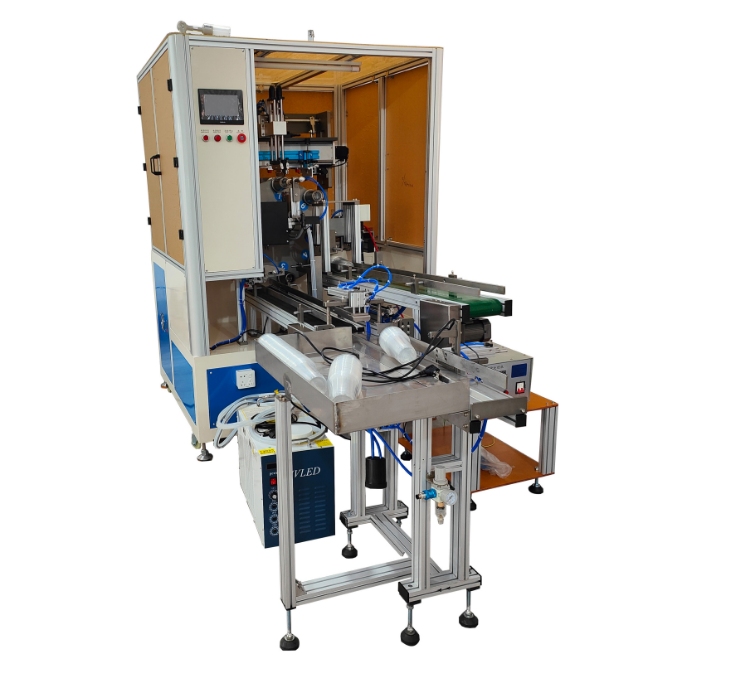

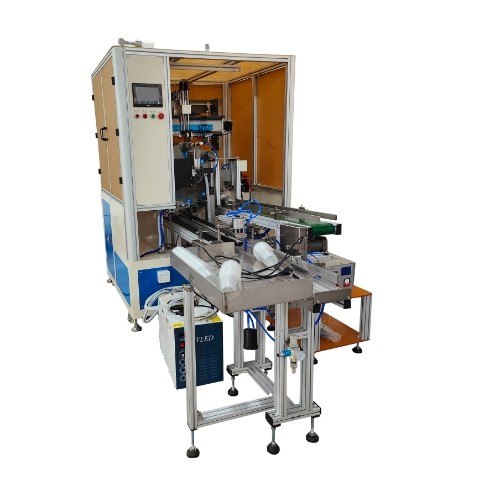

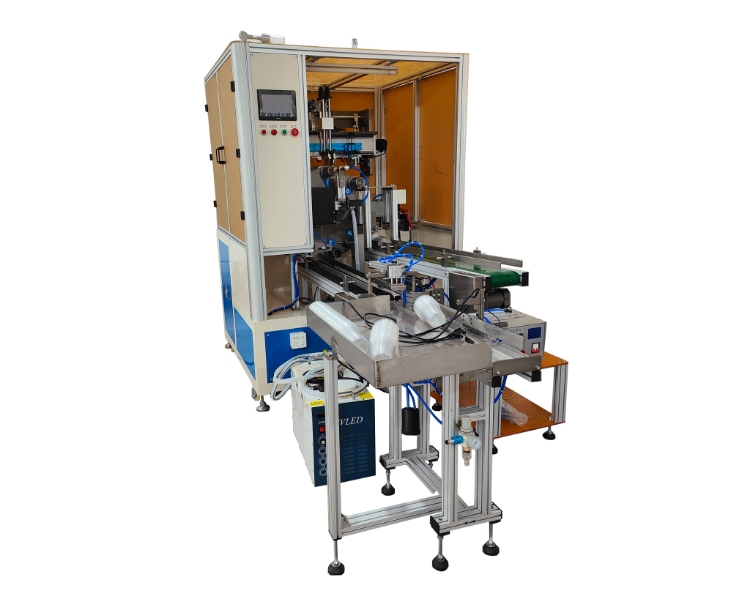

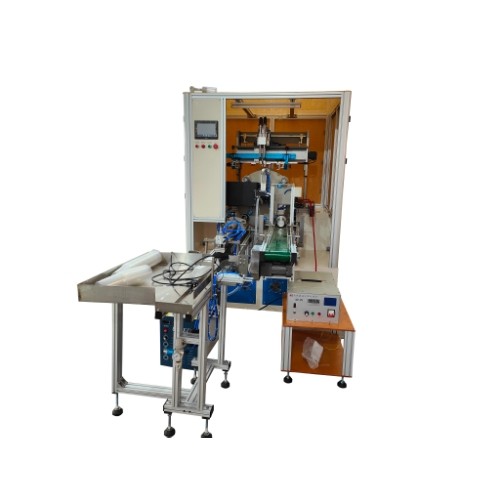

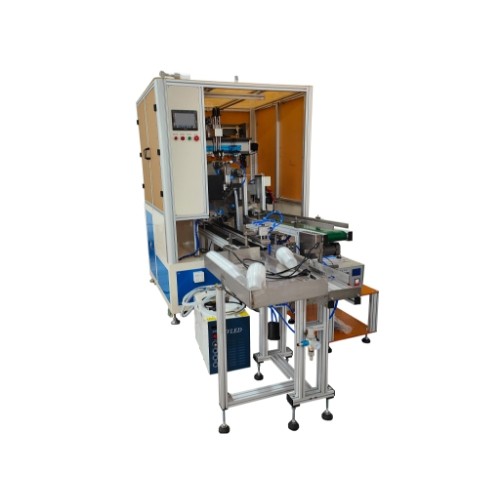

Product name:Disposable plastic and paper cup CNC automatic LED UV screen printer

Model Number: MSP-400XAR

Disposable plastic and paper cup CNC automatic LED UV screen printer ( with CNC registration for multi colors printing by running back)

Model MSP-400XAR

Machine's Parameters:
1: Model No.:MSP-400XAR
2: (Round)Max Printing diameter:Dia 100mm *200MM height
3: (Round)Max Frame size:350×550 mm
4: Max. Printing Size: 314mm*200mm (Length*height)
5: Air pressure:6bar
6: Corona treatment parameters: voltage: 220V 50-60Hz; power: 1.5KW
7: Power Supply:AC380V,50/60HZ, 1 Phrases
UV lamp parameters: 3000W, UV lamp voltage: 280-300V, total length is at 210MM, lamp diameter:25mm
Total Power Rate:7KW
8: Printing speed:1800-2200P/H
9: Machine Dimension(mm):2650 * 2050 * 1950mm
10: Machine Gross weight:870KG
11: Packing Size: 2780*1650*2200mm


Feature:

1: Automatic loading and unloading system
2: Splitter for precise printing and working stability
3: Optical sensor for multi colors registration printing for second running through printing and free of positioning mark
4: Corona treatment system which is ideal for the thin PP cups printing, Flame treatment system is optional.
5: UV curing machine ,LED curing system or IR heating tunnel according to customer's printing ink
6: Japan SMC brand pneumatic parts
7: High Precision Splitter
8: Rotary system to get high working capacity
9: PLC Touch Screen Control

Description:

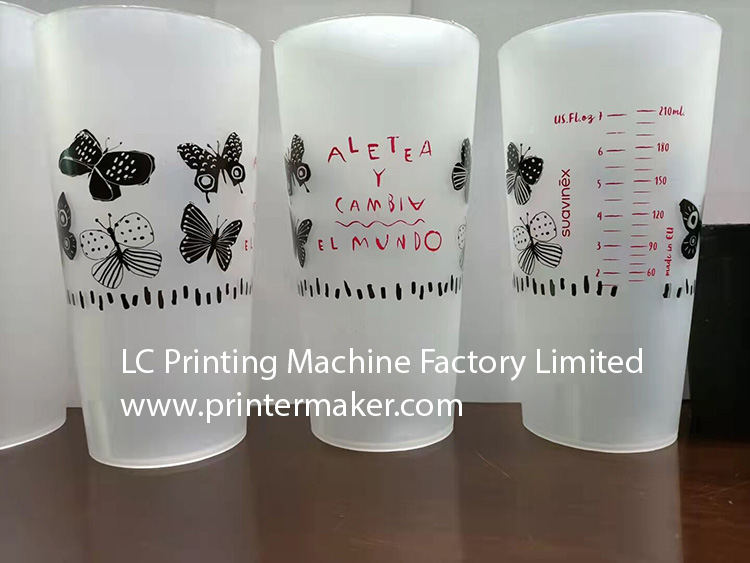

This fully automatic silkscreen printing machine is perfect for printing on those disposable paper, plastic cups printing for single colors with automatic feeding and discharging system.  It is also fitting to print multi colors by CNC registration system and free of positioning mark. So it is very popular on the disposable cups, disposable bowls, all kinds of cosmetic tubes like lid tubes, eyebrow tube's printing.

Keywords:

Plastic cups automatic UV silkscreen printer, PP cups printing machines; disposable cups printing machine; paper cups automatic LED UV screen printing machines
