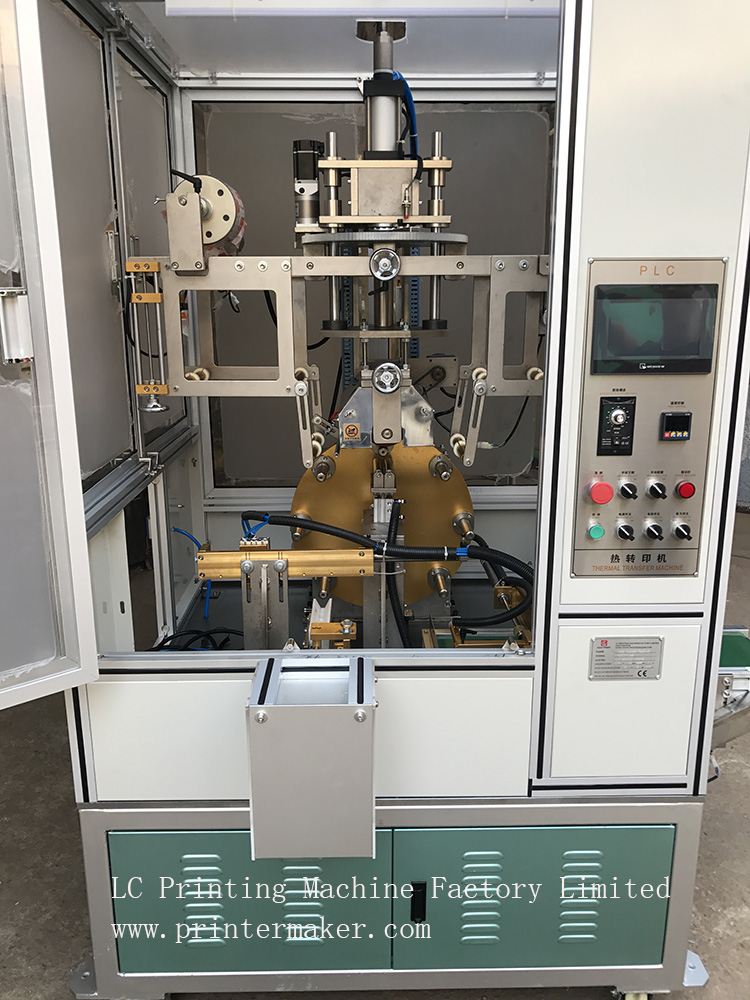

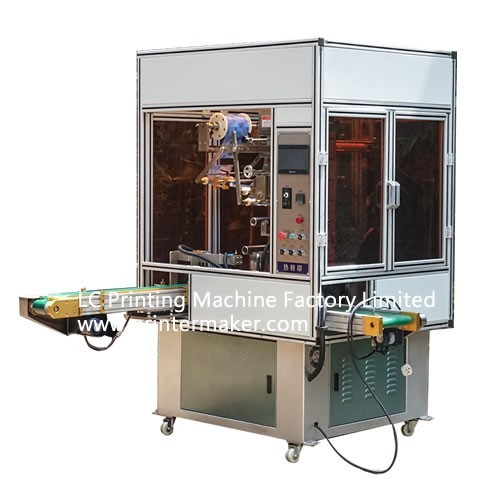

Cosmetic Soft Tube Automatic Heat Transfer Machine

  • Model Number: AHT-200
  • Product price: US$:negotiated
  • Category: Heat Transfer Machine
  • Views: 7276
  • Product Description:Cosmetic Soft Tube Automatic Heat Transfer Machine
  • PRODUCT DETAIL
  • Video

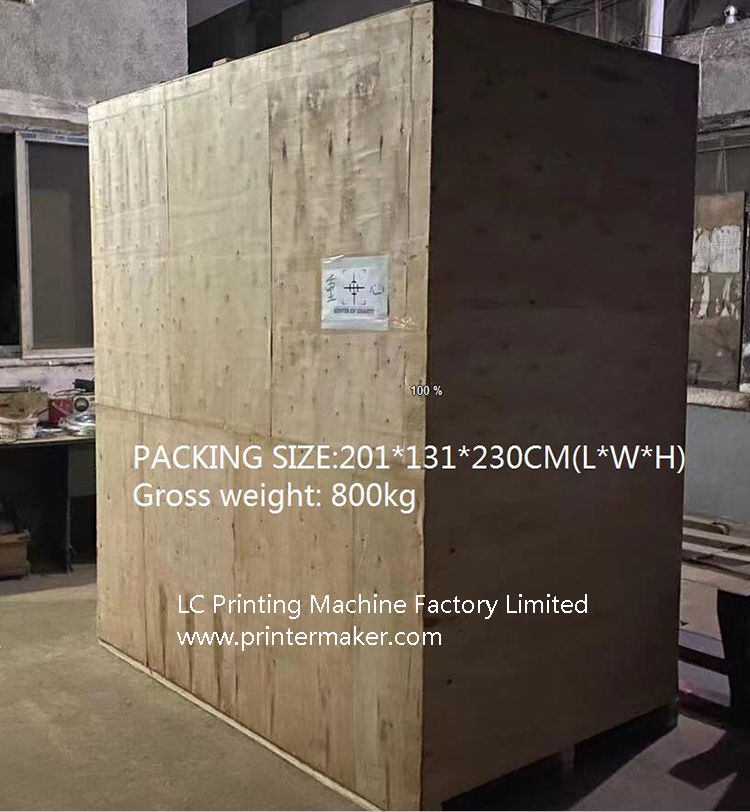

  • Packing Photo

Product name:Cosmetic Soft Tube Automatic Heat Transfer Machine

Model Number: AHT-200

Parameter:
1:Maximum stamping diameter: Ф 20 mm-80 mm
2:Maximum printing length: 20 MM-200 mm
3: Stroke of stamping head: 80mm (adjustable 50mm)
4: Hot stamping temperature: room temperature 0 ℃ ~ 300 ℃
5: Maximum workpiece diameter: 80mm
6: Maximum stamping speed: 20-30 pieces / min
7: Rated voltage: 220v60 / 50Hz
8: Hot stamping pressure range: 250-350kg
9: Overall power: 4000W
10: Heating power: 2000W
11: Gas pressure: 5-7bar
12: Machine size: 1800 * 1400 * 2100mm

13: Machine weight: 900kg

Features:

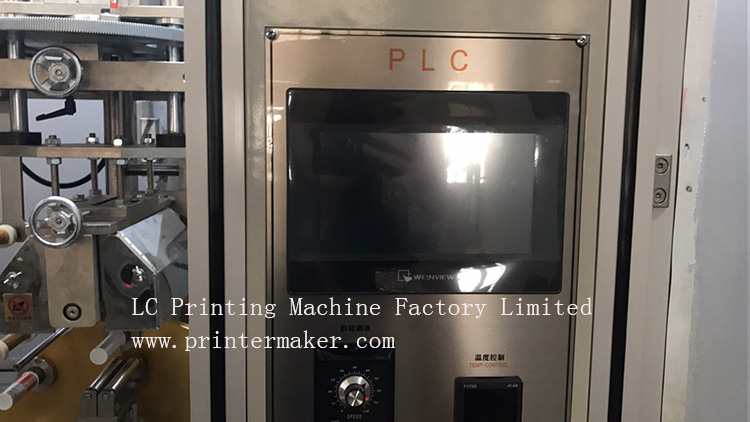

(1) Computer control, simple human-machine interface operation
(2) Hot stamping pressure, temperature, speed adjustable
(3) Built-in self counting and automatic positioning

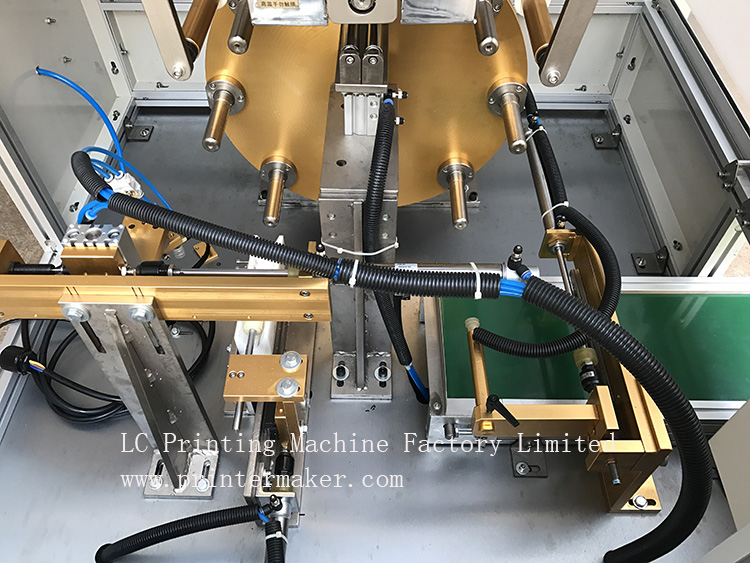

(4) Automatic foil feeding, receiving and adjustable, no foil intermittent stop

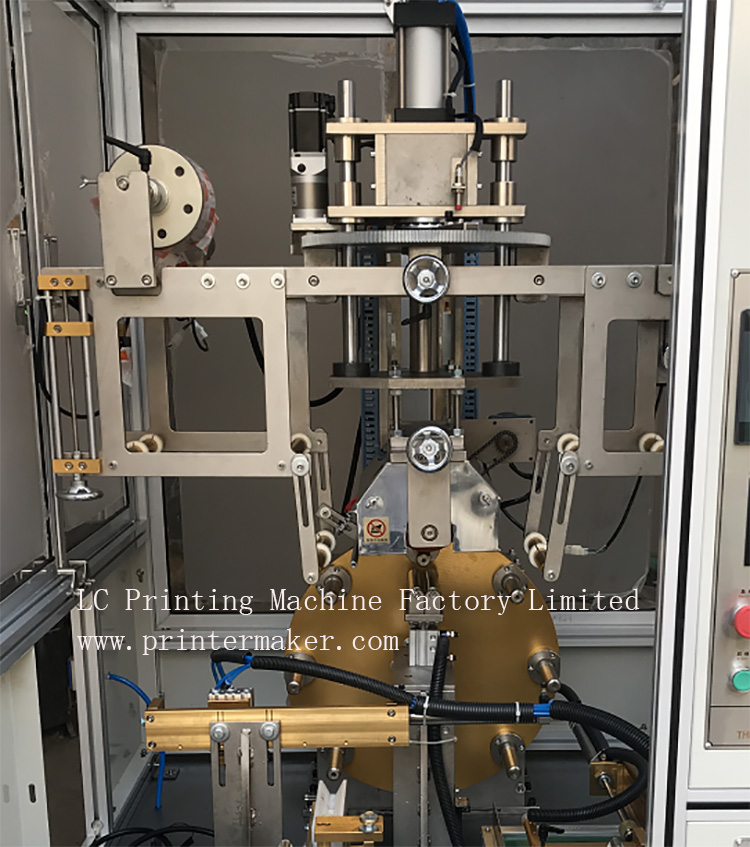

(5) Adjustable height and wide range of stamping head
(6) Automatic upload and unloaded
(7) CE Standard
2、 Brand of equipment accessories

Application:

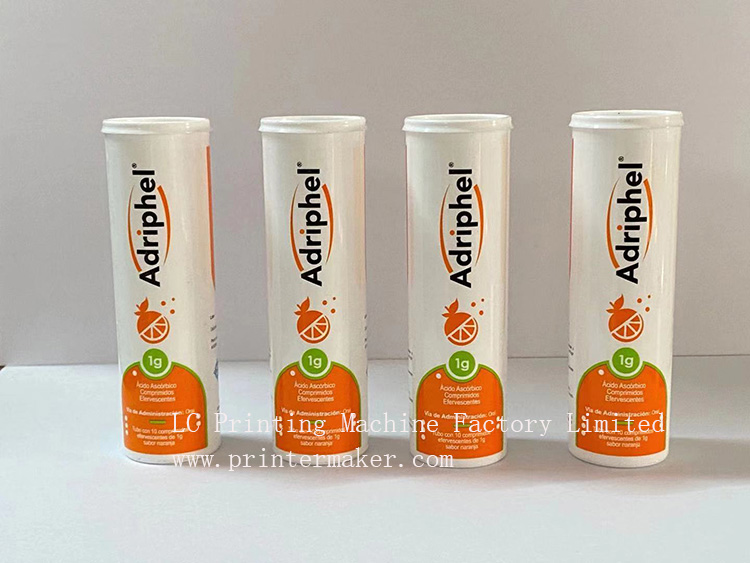

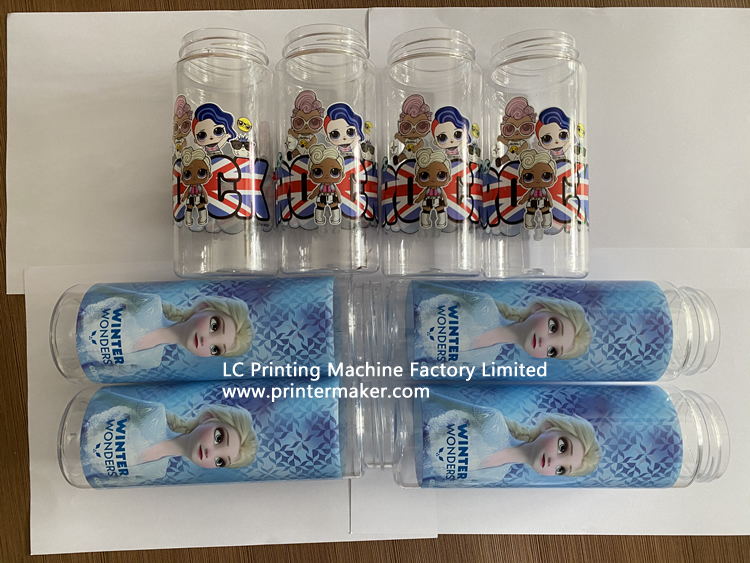

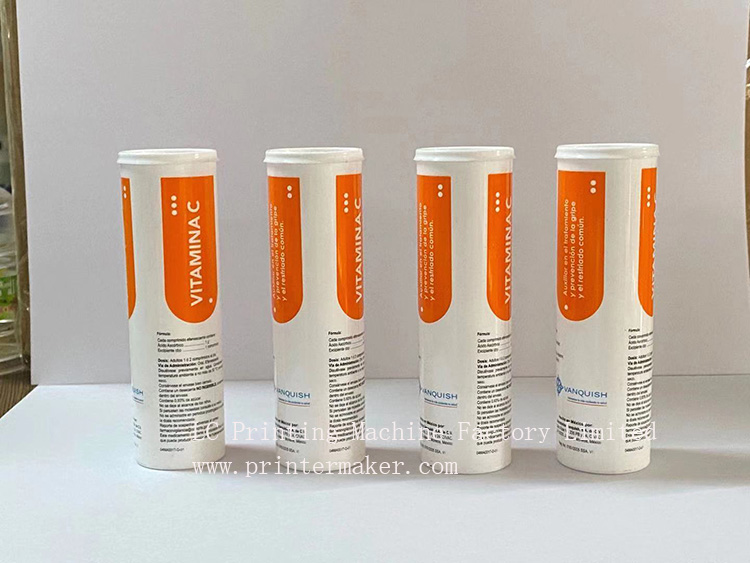

It is fitting for all those glue tubes , cosmetic tubes, soft tubes, Silicone sealant bottles, cosmetic jars, width mouth plastic bottles,

etc in automatic heat transfer printing.
