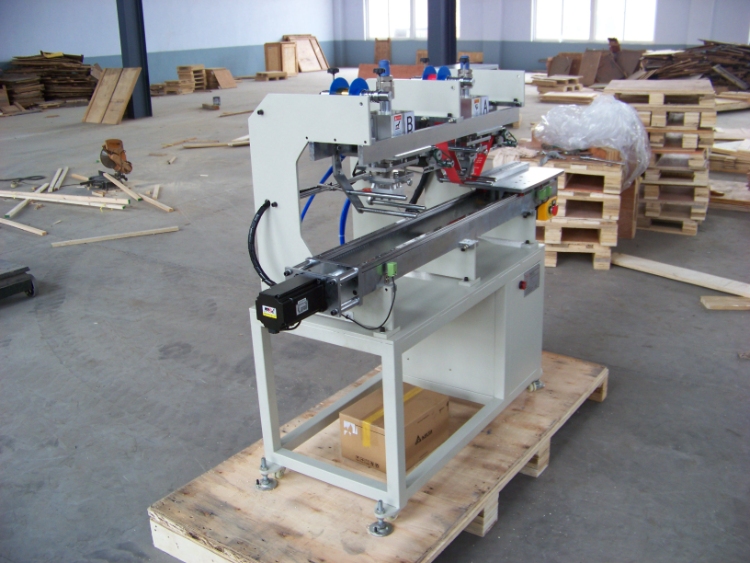

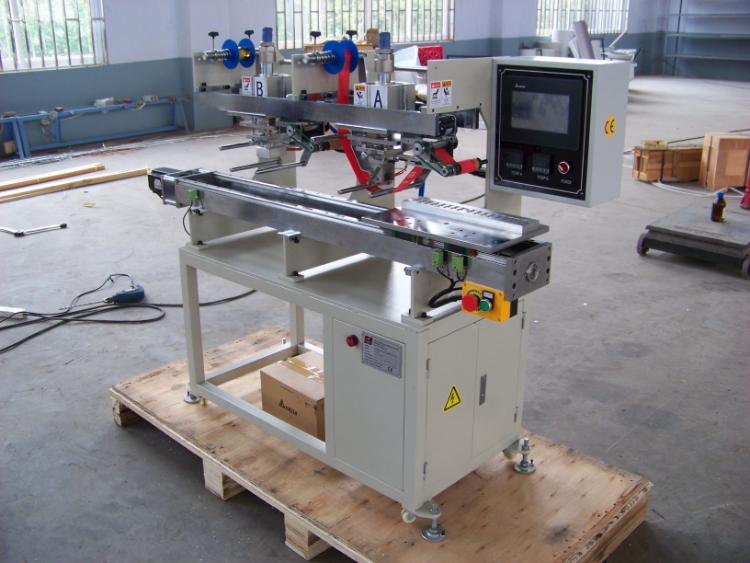

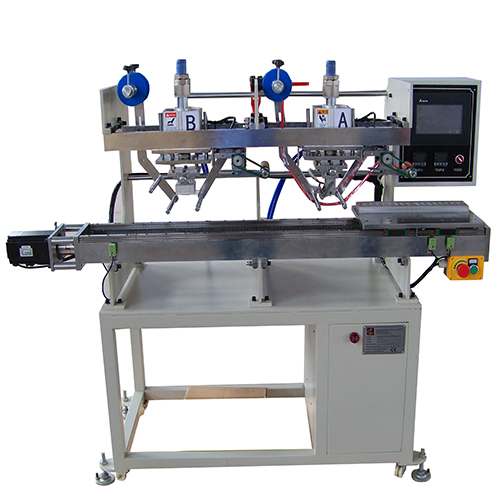

Cable Ties Automatic Hot Stamping Machine with code stamping head

  • Model Number: HP-CTA
  • Category: Hot Stamping Machine
  • Views: 877
  • Product Description:Cable Ties Automatic Hot Stamping Machine with code stamping head
  • PRODUCT DETAIL

Product name:Cable Ties Automatic Hot Stamping Machine with code stamping head

Model Number: HP-CTA

Description:

Cable Ties Automatic Hot Stamping Machine with code stamping head
Automatic Thermal Printing Machine for plastic security seal
Parameter:
1: Heat Plate size: 50*50mm
2: Working Table size: 240*320mm
3: Stamping Stroke: 50mm/50mm
4: Working table shuttle stroke:1000mm
5: Heating Power Rate: 200W/100W
6: Temperature Adjust:0-299.C
7: Stamping time:25 second(10pcs)
8: STAMPING TIME:0-9.9
9: Pressure time:0-9.9 second
10: Position Accuracy:+_0.05mm
11: Servo Motor: 400W
12: Power Rate: 220V/50HZ
13: Machine Dimension: 120*1000*1600


Cable Ties Automatic Hot Stamping Machine with code stamping head
