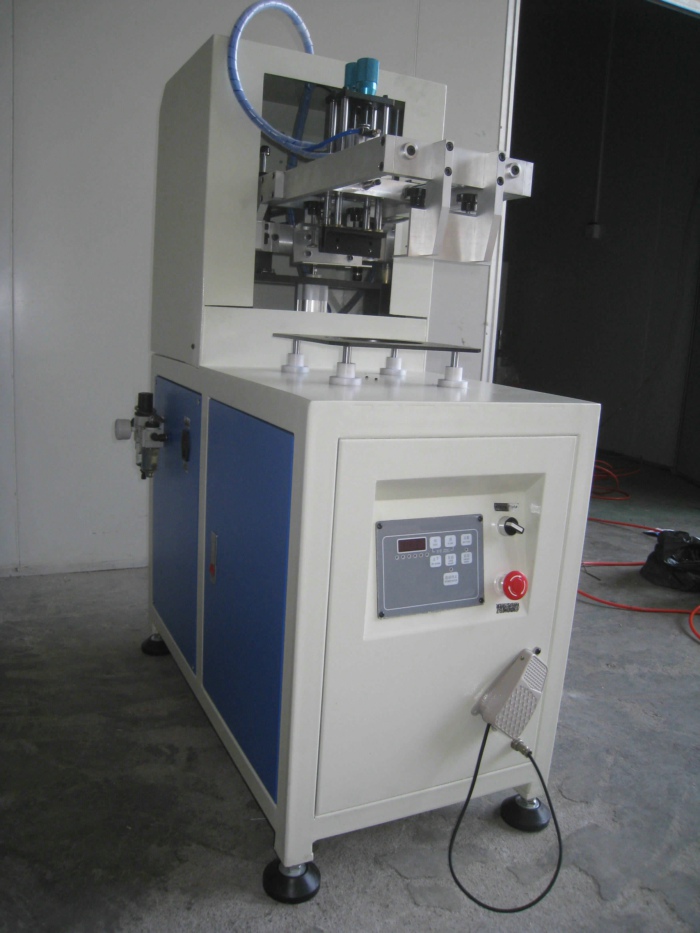

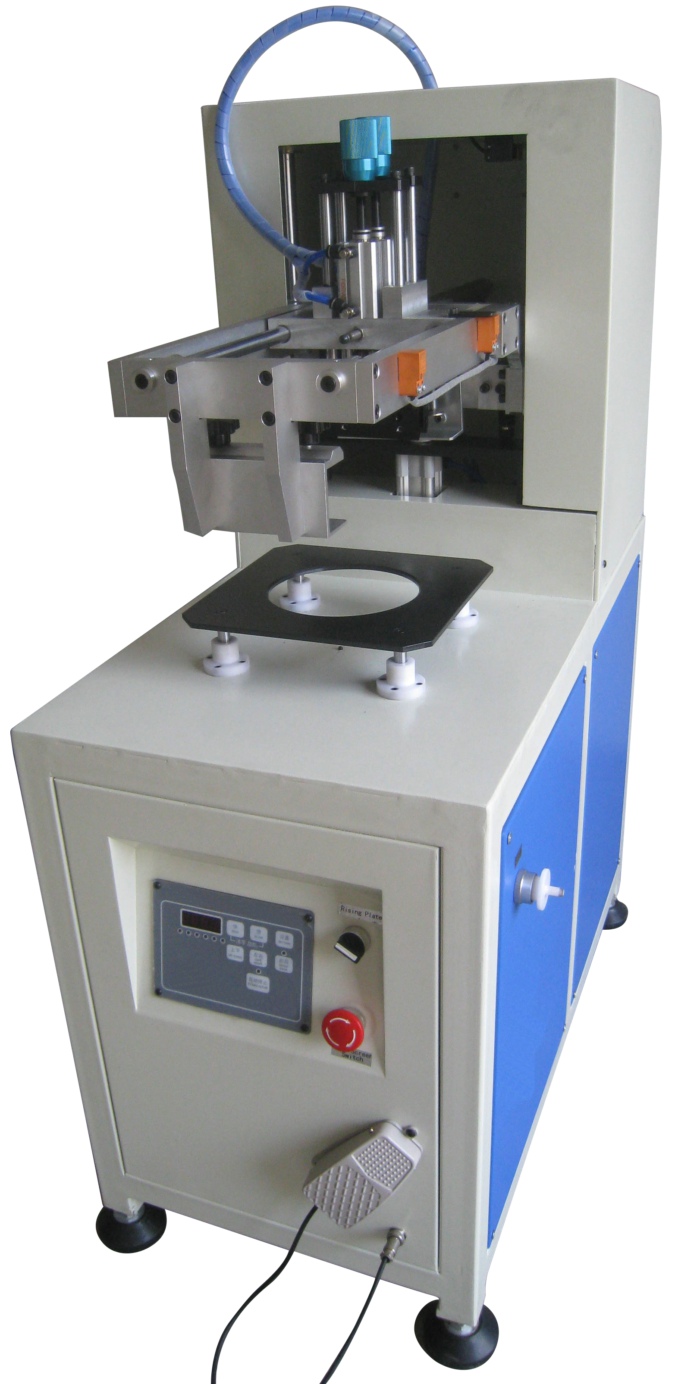

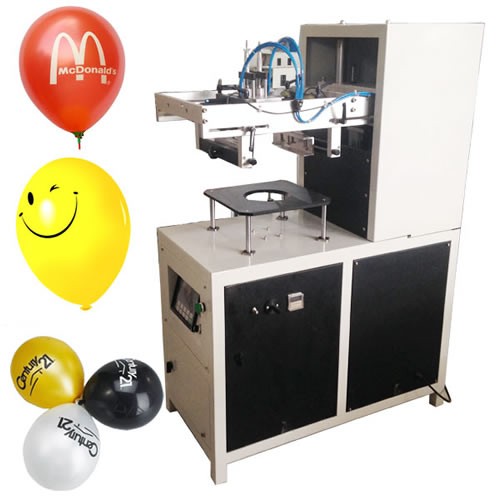

Product name:Balloon Screen Printing Machine

Model Number: EASY-SPB

Pneuamtic Single Color Balloon Screen Printing Machine
Feature:
1 Low Electric Consumption; high efficiency and productivity; easy to operate.

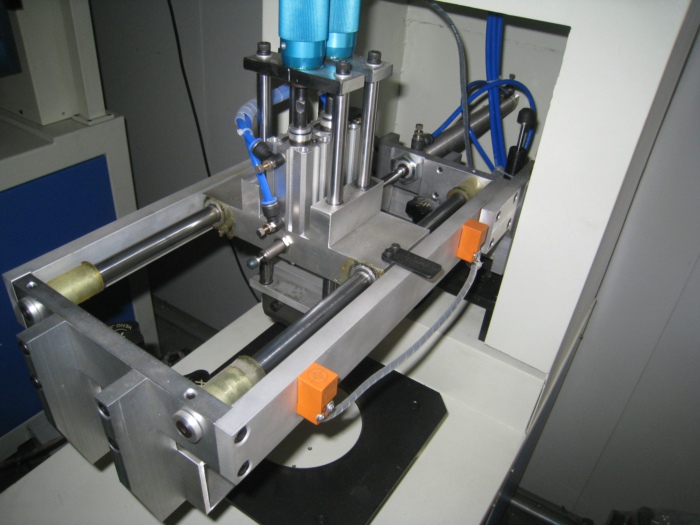

2 Linear movement design;

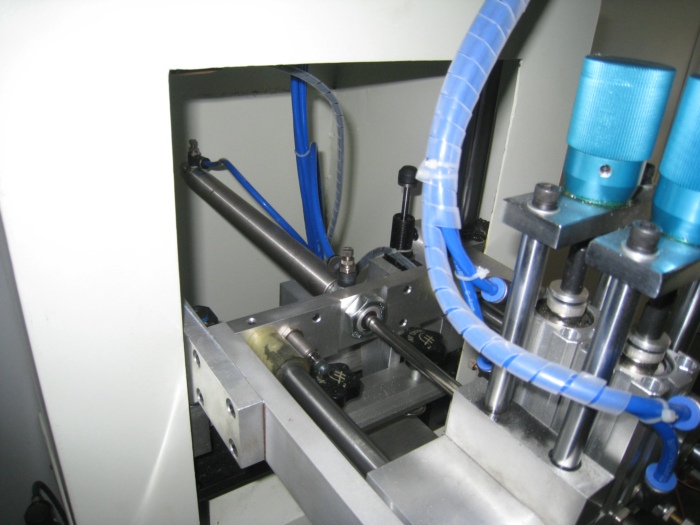

3 Reliable electrical and pneumatic parts;
4 The squeegee works in two modes---front stop and back stop;
5 The printing speed is adjustable as your requested.
6 Machine with air blow.
Parameter:
Max printing Size:150*150mm
Standard Screen Frame size: 210*360mm
Max Screen Frame Size: 280*360mm
Worktable size: 250*250mm
Worktable stroke of Down/up:70mm
Support plate Diameter:150mm
Workable squeegee:5*25mm
Standard Squeegee holder: 100mm
Printing Speed: 1400 pcs/ hour
Power: 50W
Voltage of source: 220V/ 1 phase 50/ 60 HZ
Net Weight: 90Kg
Dimension: 90*60*132cm
Advantage:
1.Machine material: Cast Alloy Aluminum which is lighter and more stable.
2.The screw on the machine which hardness is 12.9 grade more durable.
3.Parts process by CNC or worker. Then accuracy.
Balloon Screen Printing MachineBalloon Screen Printing MachineBalloon Screen Printing Machine
