LC Printing Machine Factory Limited

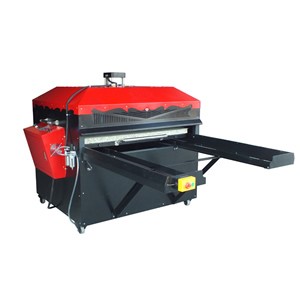

Automatic Sublimation Large Format Heat Transfer Machine with single station

  • Model Number: ASTM-40/48/64
  • Category: Large Format Heat Press Machine
  • Views: 90
  • Product Description:Automatic Sublimation Large Format Heat Transfer Machine with single station
  • PRODUCT DETAIL
  • Packing Photo

Product name:Automatic Sublimation Large Format Heat Transfer Machine with single station

Model Number: ASTM-40/48/64

Automatic Sublimation Large Format Heat Transfer Machine with single station

Description:
ASTM-S Series is the single station large format transfer machine, It provides an oversized platen, production oriented press, and strongly supports sublimation transfer processes, as well as digitally produced transfers, and laminating processes.
Automatic Sublimation Large Format Heat Transfer Machine with single station

Automatic Sublimation Large Format Heat Transfer Machine with single station
Large Format Heat Press Machine - Single Station
Description:
ASTM-S Series is the single station large format transfer machine, It provides an oversized platen, production oriented press, and strongly supports sublimation transfer processes, as well as digitally produced transfers, and laminating processes.

Feature:
♦ Large Format
♦ Digital Temperature & Time Control
♦ Automatic Alarm
♦ 1 year warranty on entire press
♦ Wooden Package
Specification:
♦ Machine Type: Automatic,  Single Station
♦ Platen Size: 32"x40"/40"x48"/40"x64"
           (80x100cm/ 100x120cm/100x160cm)
♦ Controller: GY-04 Digital Time & Temp. Control
♦ Printable Articles: Up to 20mm Thickness
♦ Air Compressor Required: Yes
♦ Voltage: 220V 1phase/ 220V 3phase/ 380V 3phase
♦ Power: 5.1KW/ 7.5KW/ 12KW
♦ Time Range: 0-999 sec.
♦ Maximum Temp: 225 C
♦ Temperature Accuracy: ±0.5%
♦ High Pressure: 8KG/CM
♦ Packing Size: 149*120*174/188*157*176/227*157*176cm
♦ Gross Weight: 560kg/690kg/780kg (Wooden Package)
Heat Platen Test:
Each Signle Copper sheathed heating rod is tested before it is cast in an aluminum alloy or Mica Sheet. These heating rods are comparable to those found in industrial ovens that heat up quickly, work efficiently and last many years. With our industrial quality heat castings, you can get five years worry free warranty.


Quality Control on Finished Machine:
All heat presses are strictly tested under the following procedures before shipping out.
1) Turn on the machine, let it heating up to 200 degree Celsius.
2)Keep the temperature stay at 200 degree Celsius for at least 20 minutes
