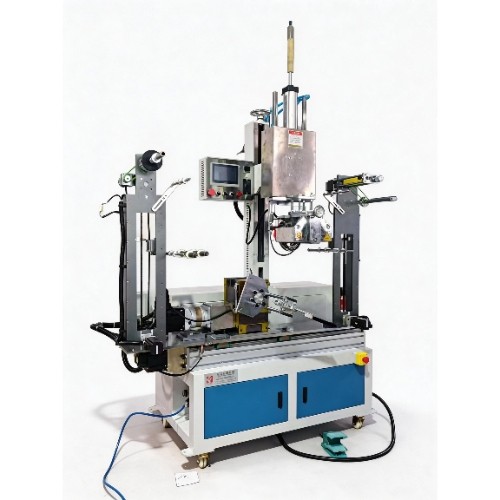

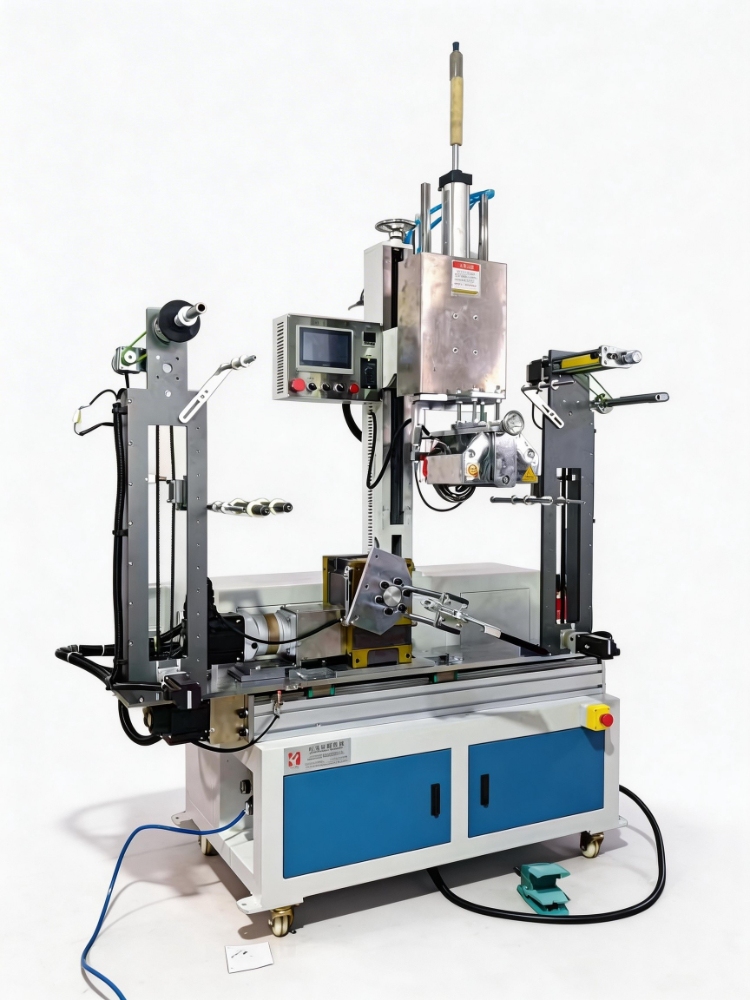

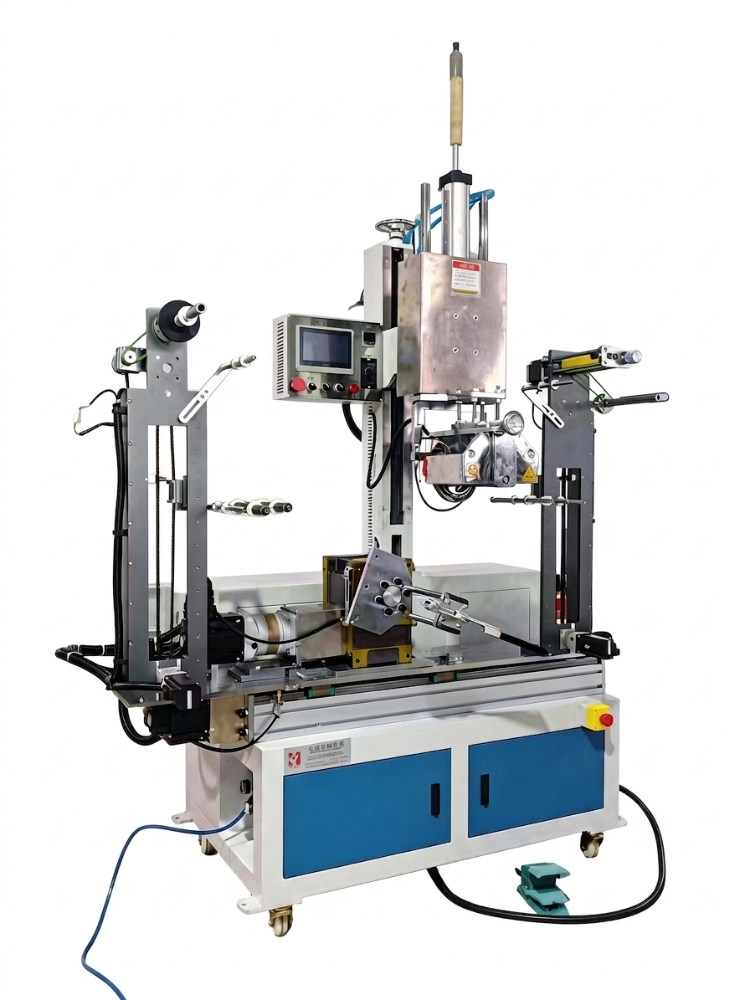

4-Axis Servo Profile Hot Stamping Machine

Model Number: EASY-1000EC
Product price: US$:negotiated
Category: Heat Transfer Machine
Views: 8

Product Description：Specially used for hot stamping on large plastic products with R-angle, such as refrigerator drawers.

PRODUCT DETAIL

Product name:4-Axis Servo Profile Hot Stamping Machine

Model Number: EASY-1000EC

Specification:
1. Machine Name: 4-Axis Servo Profile Hot Stamping Machine
2. Model: EASY-1000EC
3. Max. Printing Area: 100mm
4. Max. Processing: 800mm
5. Control System: PLC + HMI; 4-axis servo motor coordination; jig driven by precision divider.
6. Special Features: Real-time height adjustment for the tension end and waste end of hot stamping foil, ensuring no wrinkling at R-angle with stable tension.
7. Typical Applications: Specially used for hot stamping on large plastic products with R-angle, such as refrigerator drawers.
8. Power Supply/Total: 220V / 50Hz / 3500W
9. Air Pressure: 0.4 – 0.6 MPa

10. Dimensions/Weight: L 2.1 × W 1.1 × H 2.6m / 500kg
