Product name:3D Sublimation Vacuum Heat Press Machine

Model Number: ST-3042

HOT SALE! 3D SUBLIMATION VACUUM MACHINE, HEAT TRANSFER MACHINE.
EXW Price:USD 500/PCS

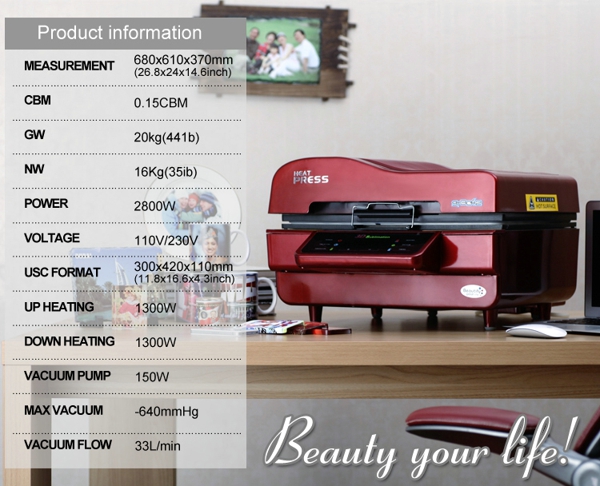

Specification:
Voltage:220V/110V
Power:2800W
Transferring Area:300*420*110mm (11.8"*16.5"*4.3")
Inspiratory Time: 18S
Vacuum Pressure negative: 0.1KPA
Temperature Range: 0-250 degree Celsius
Time Range: 0-999S

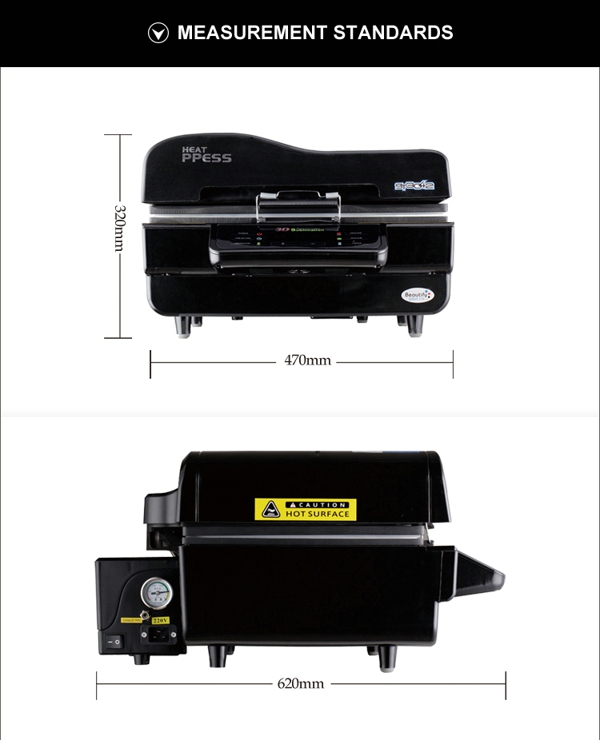

Dimesion: 470*590*290mm (18.5"*23.2"*11.4")
Packing Size: 720*640*420mm (28.3"*25.2"*16.5")
Gross Weight: 25kg
Valume Weight: 40KG
Color:Red,Black,White

Parameter settings for Different Sublimation Blanks
Items Quantity Temperature Time
MUGS 1pc 200 degree Celsius 360S
12pcs 200 degree Celsius 480S
Phone Case 4pcs 190 degree Celsius 360S
Round Plates 1pc 200 degree Celsius 300S
2pcs 200 degree Celsius 360S
Photo Slate 1pc 200 degree Celsius 360S
2pcs 200 degree Celsius 420S

Products Making:
3D Phone Case, Coated Mugs, Photo Rocks, Glass Frame, Small Wineglass, T-shirts, Mouse Pads, Plates, Ceramic Tiles, etc.

Features:
1. Safety
Software and hardware dual temperature control design, when one thermostat failure, the other thermostat automatically work, 15 minutes no operation, automatic shutdown, more secure and reliable. The machine has applied for CE \ UL safety certification

2. Efficient
The 300X420X110mm capacity reactor core design capacity, can put 12 mugs at one time, greatly improve work performance.

3. Delicate
Bump dots surface design, greatly improve the heat area, die-cast aluminum alloy heating, far infrared radiation coating, so that each point of the temperature of the furnace are uniform, to ensure that the image transfer  more delicate and clear.

4. Simple The machine adopts special high impedance contingent, insulation materials, lightweight and safe, streamlined resistance heat strips, compact and practical internal structure, simple and stylish appearance.

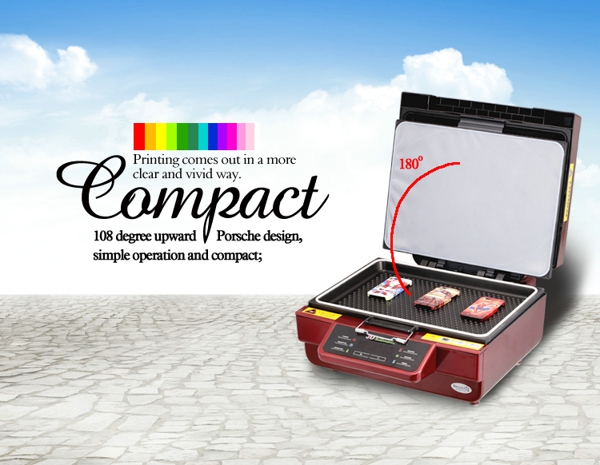

5. Sharp move108 clamshell design, easy operation, significant space saving.

6. Highly intelligent
Work without any key operation, just gently close the cover, The machine
automatically aspirate, countdown and heat up. When the work is completed, automatically deflated, All you need is a simple process to place products and take out the products

7.Humane handling settings interface
for first time use, the temperature and time set-up process is very easy to understand and easy to learn.

8.Environmental protection
Efficient activated carbon air filter is installed in the machine, effectively to worry too much toxic and harmful gases generated in the transfer process, transported to the outdoors through the long catheter to ensure the health and safety of the operating personnel.

9. MultifunctionThe machine covers all the functions of the heat transfer machine, which can transfer mug, glass, crystal, acrylic, plastic, wood, metal, stone, cloth and so on .with various types of fixture, can do sublimation transfer on different size and shape of mugs. Transfer large format, delicate, clear, high color reproduction, far more than the traditional heat transfer machine.
