Automatic Hot stamp debossing pad printing machine on aluminum caps

  • Model Number: XD109
  • Product price: US$:negotiated
  • Category: Auto Hot Stamping Machine
  • Views: 2942
  • Product Description: pad printing machine on aluminum caps
  • PRODUCT DETAIL
  • Video
  • Packing Photo

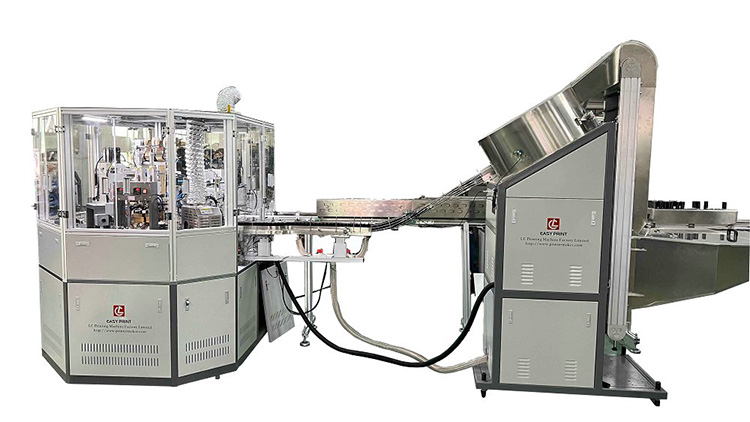

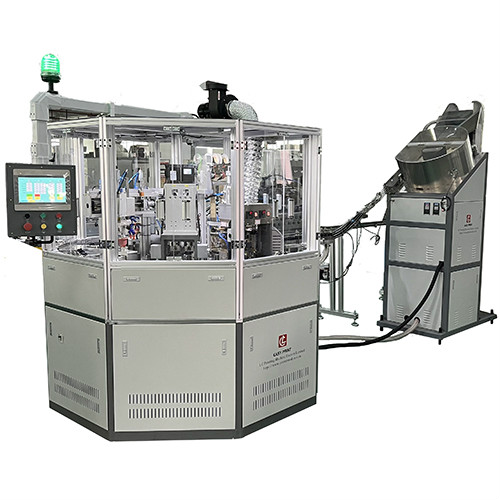

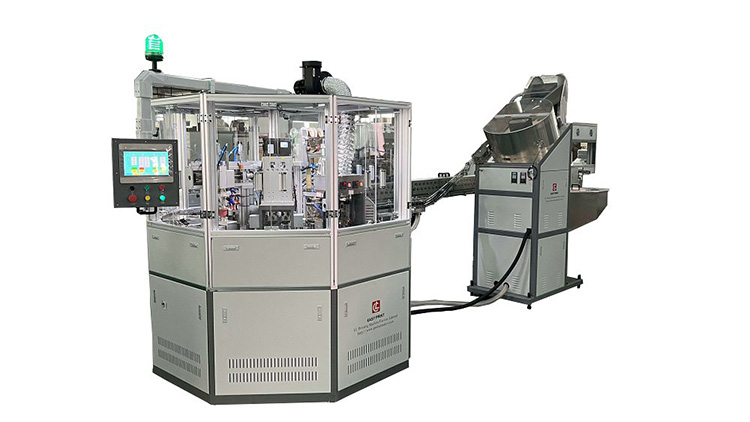

Product name:Automatic Hot stamp debossing pad printing machine on aluminum caps

Model Number: XD109

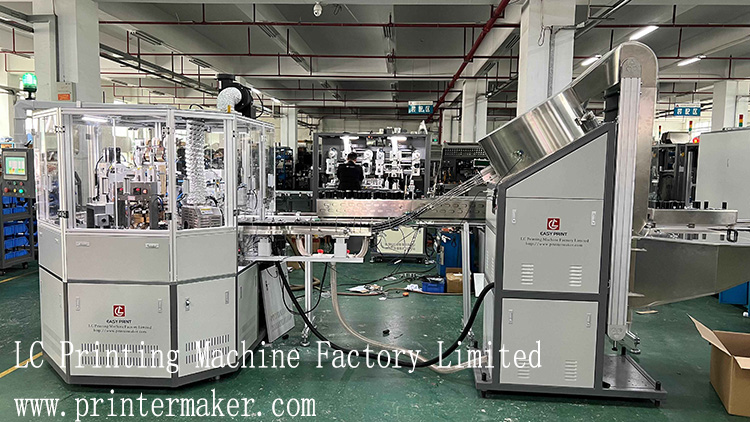

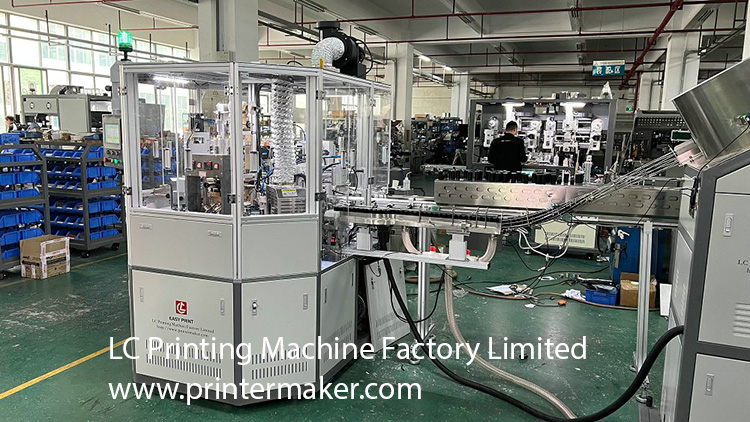

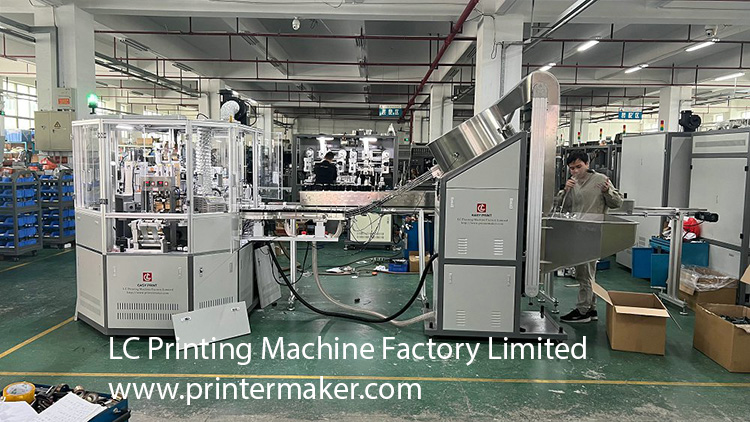

Automatic Hot stamp debossing pad printing machine on aluminum caps.
Fully Automaitc Embossing Hot Stamping Pad Print Machines on Caps

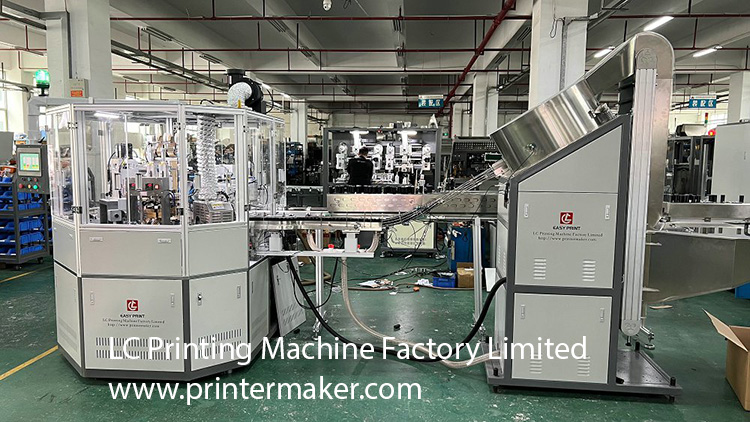

1: Machine size:
Feeding machine size: 130 * 85 * 210cm
Host Machine size: 202 * 185 * 205cm
Size of feeding conveyor belt: 190 * 70 * 85cm
2: Voltage: 380V, 3-phase 60HZ

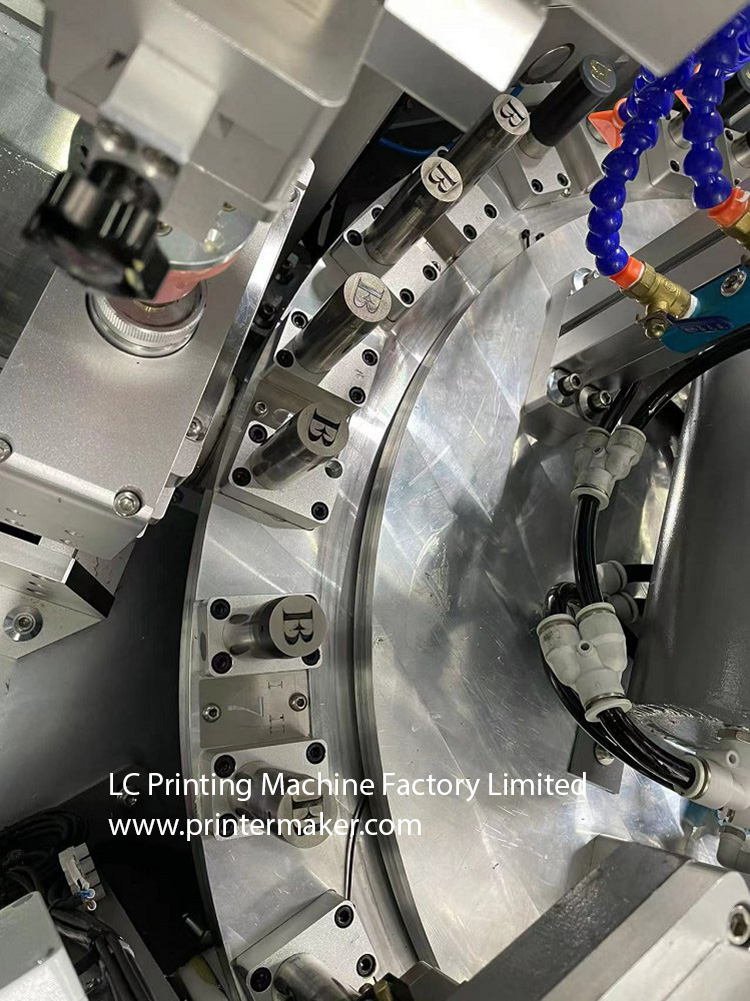

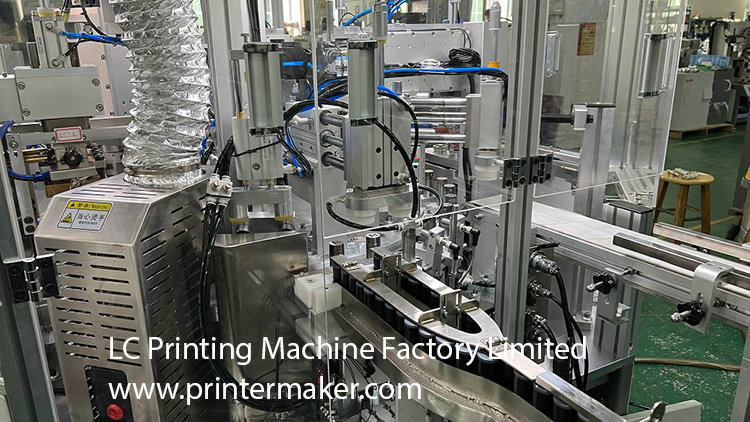

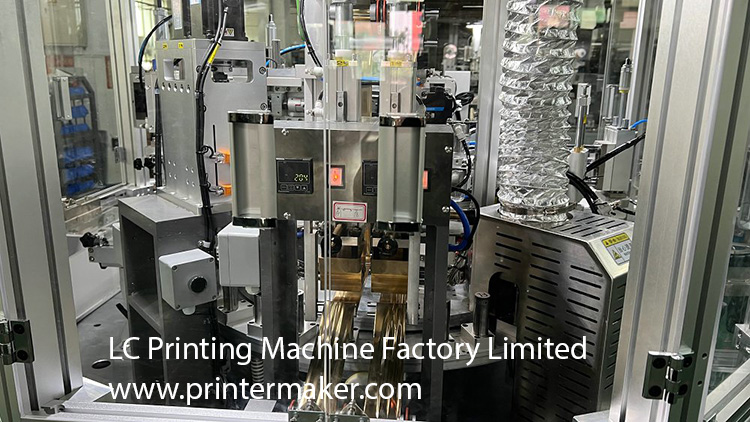

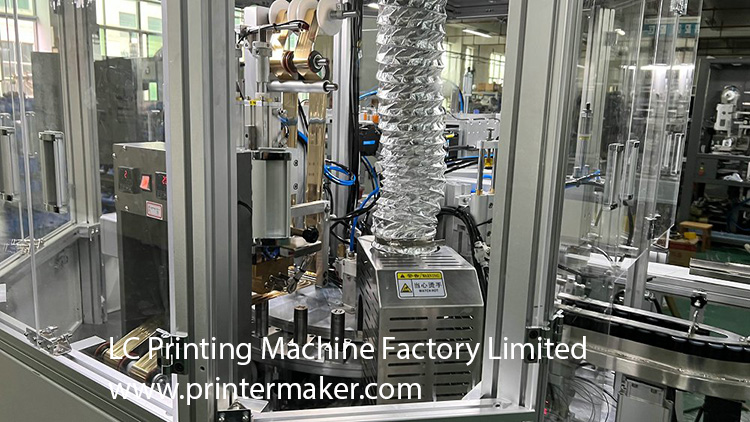

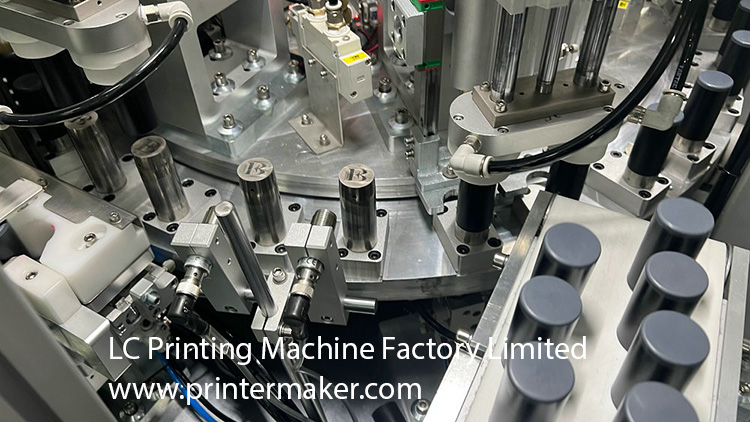

3: 3 pad printing stations, 1 hot stamping station and 1 embossing station.
4: Speed: 70-80 pieces/minute
5: Machine configuration
6: IR power: 4.4KW
7: Air pressure: 0.6-0.8Mpa
9: Total power: 17KW

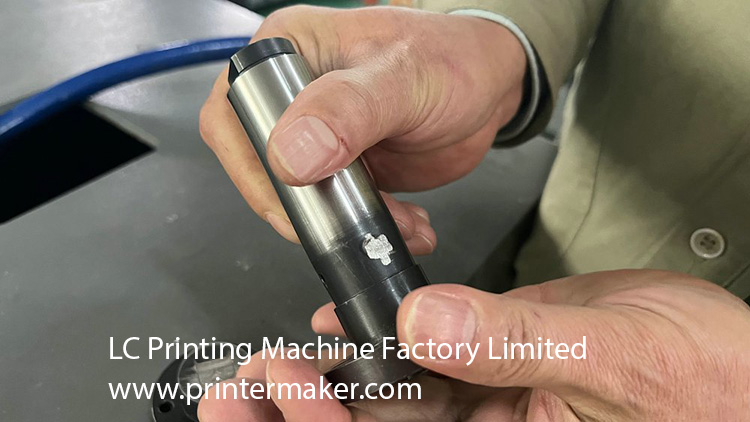

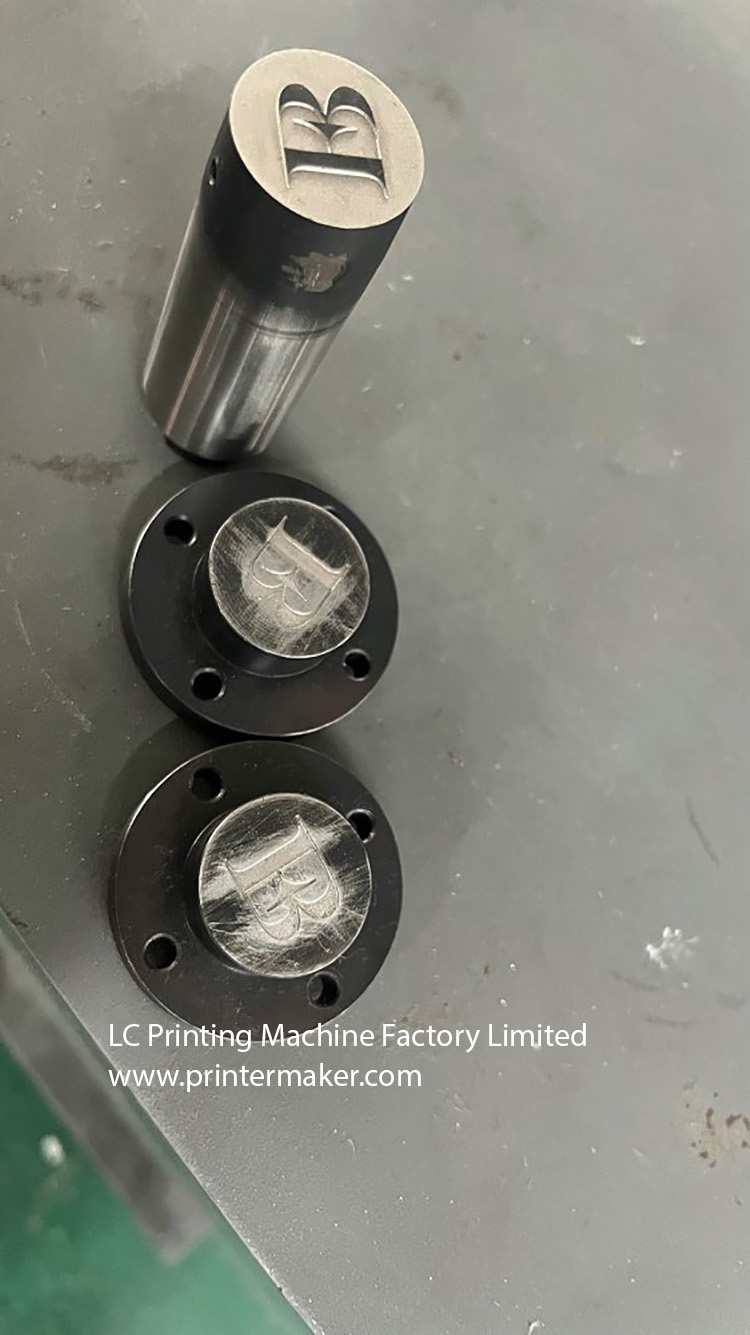

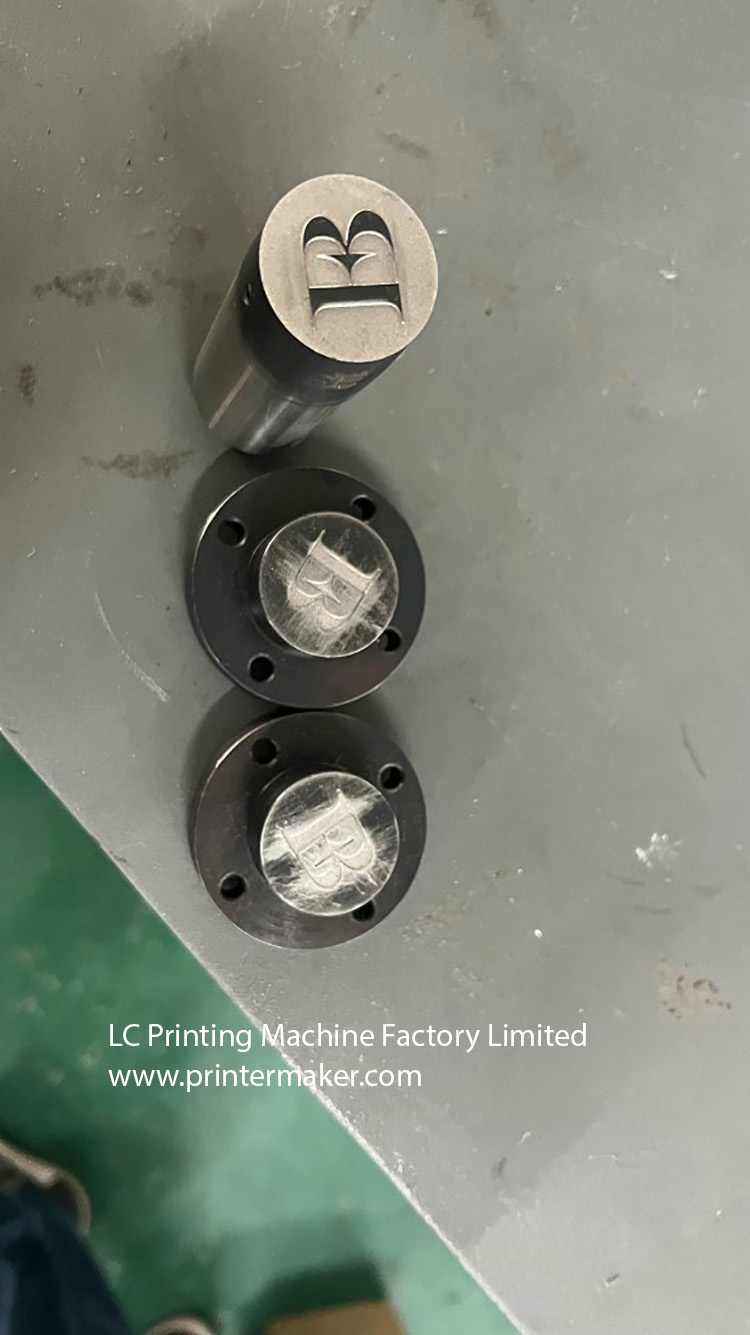

10: Embossing pressure: 12%
11: Packing size of export plywood box:
Feeding machine: 135 * 90 * 228cm
Host Machine: 210 * 190 * 225cm
Feeding conveyor belt and other accessories: 195 * 75 * 105cm

This machine is customizing machine on aluminum caps printing which is included all those function such as pad printing,

hot stamping and embossing combined in one machine together in high printing speed and perfect printing quality.
