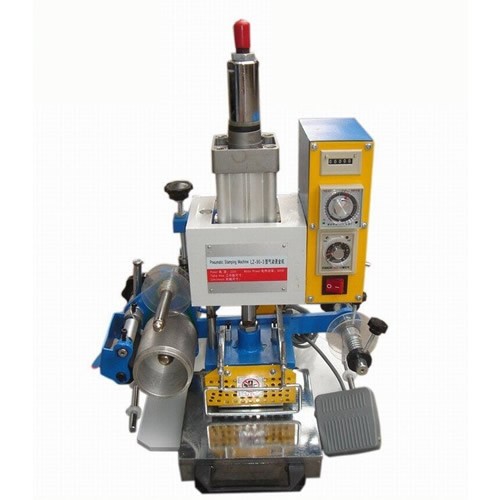

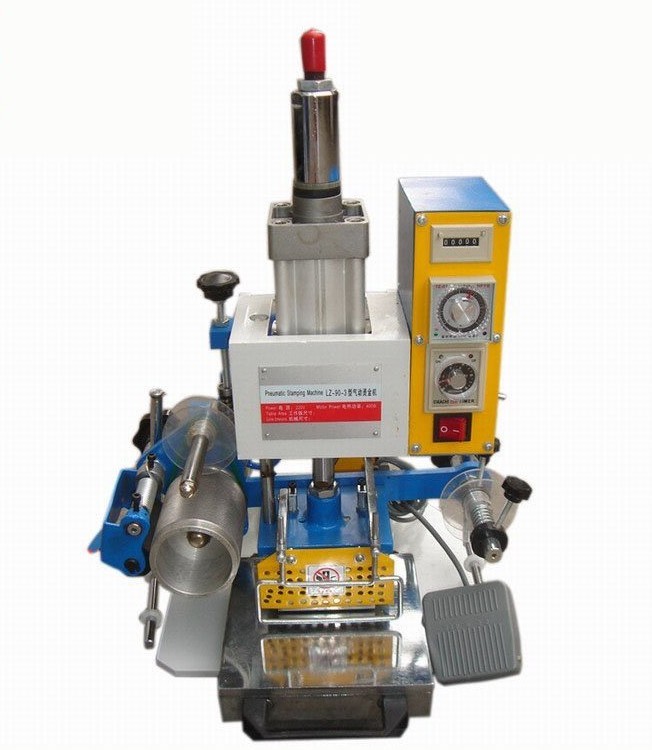

Mini Pneumatic Hot Foil Stamping Machine

  • PRODUCT DETAIL

Product name:Mini Pneumatic Hot Foil Stamping Machine

Model Number: EASY-H90-3

Description:
Mini Pneumatic Hot Foil Stamping Machine
Product Description

This hot stamping machine is fit for stamping on the surface of plane objects with small area.With fast speed and low energy consumption.Mainly applied to the field of craft,trademark,label,card, fabric handbag,leather,paper and plastic.This machine has a stable pressing force directly acted on by the pneumatic cylider.The printing ribbon is transmitted by pneumatic mechanism. Its worktable allows optional adjustment. It is suitable for various stamping and branding

Parameter
1. Name:Mini Pneumatic Plane Hot stamping machines
2. Model:EASY-H90-3
3. Product shape:Plane
4. Max printing area: 80*90mm
5. Power:220V/50Hz
6. Electrothermal Power:500W
7. Air Pressure:0.5-0.7
8. Operation:Pneumatic
9. System control:automatic
10 Workbench:can be adjusted
11.Stamping foil winding length - < 120 mm
12.Stamping speed: 800 PCS/H
13. Packing Size: 52*52*74CM
14. Gross Weight:60KG.
Characteristics
1. Stamping temperature adjustable range from room temperature to 400C.
2. Stamping pressure is adjustable to install.
3. Automatic rear-and-front worktable ensures safe and quick operation.
4. Worktable capable of slight adjustment to rear-and-front, left-and-right and rotation.
5. The height of the stamping head adjustable accordingly.
6. Automatic foil feeding and rolling with adjustable function.
Price Terms : FOB Guangzhou
Payment Terms : Western Union ,T/T or L/C
Packing : Wooden case
Lead Time : Within 3 days
Standards Certificate : ISO9001-2000,CE
Machine Fittings
1.One Manual in English
2.One set of tool
Ship Date
1.By sea.
within 30 days after receive remittance
2.By air.
within 6 days after receive remittance
Warranty
1.Cylinder can be changed for free within 1year,freight collect.
2.Other parts can be changed for free within 2years,freight collect.

3.Warranty period:3years.

Mini Pneumatic Hot Foil Stamping Machine
