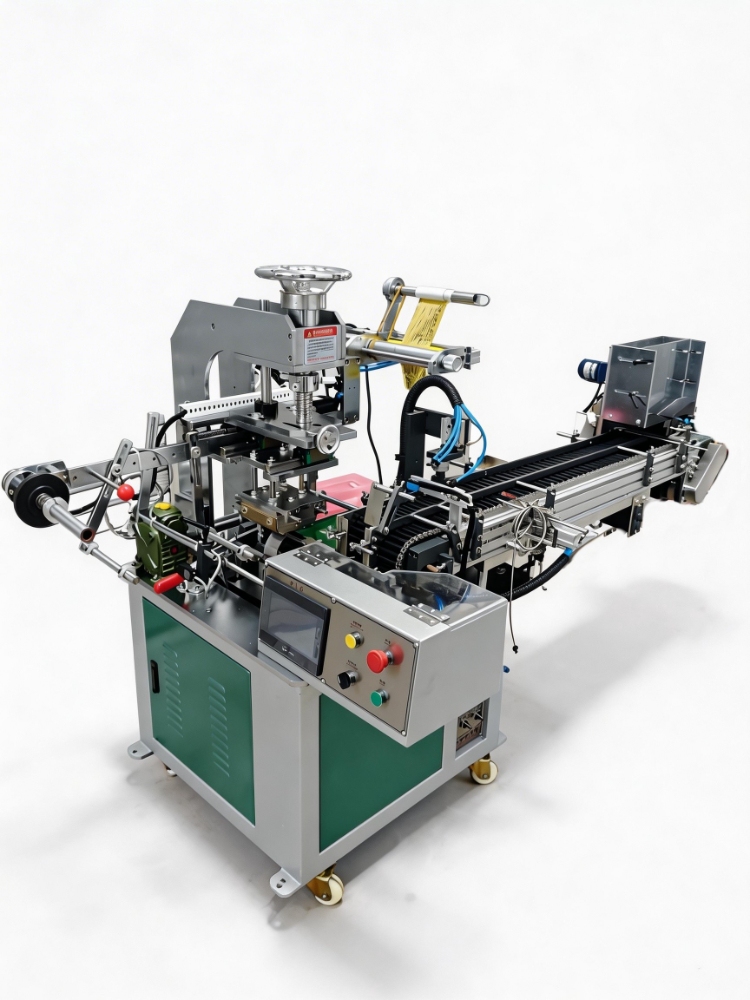

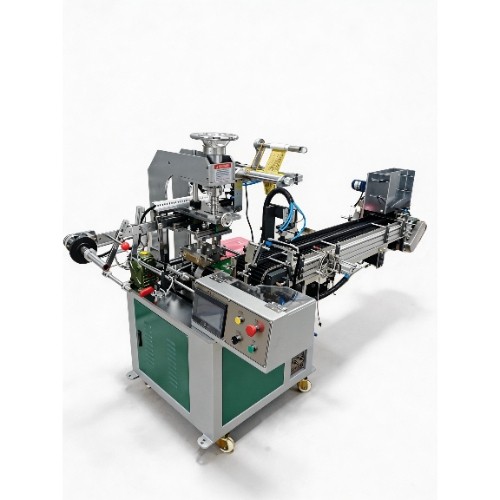

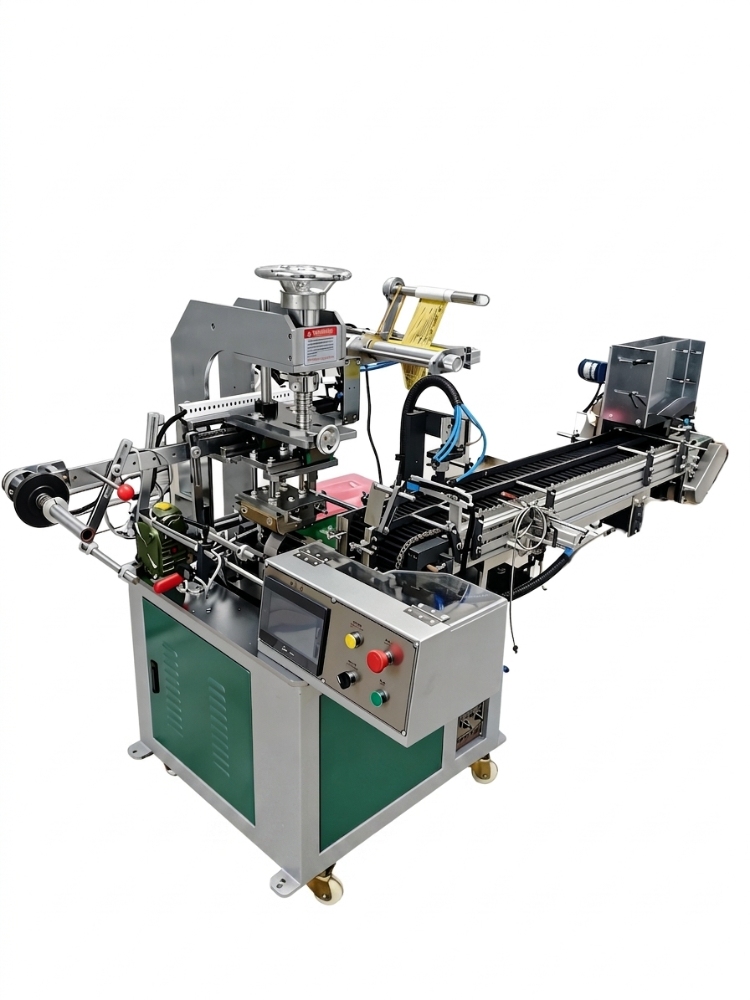

Automatic Pen Barrel & Round Tube Hot Stamping Machine

Model Number: EASY-308FAF
Product price: US$:negotiated
Category: Heat Transfer Machine
Views: 6

Product Description：Specially designed for 360° circumferential hot stamping on rigid plastic cylinders such as cosmetic tubes, pen barrels and candy tubes.

PRODUCT DETAIL

Product name:Automatic Pen Barrel & Round Tube Hot Stamping Machine

Model Number: EASY-308FAF

Specification:
1. Machine Name: Automatic Pen Barrel & Round Tube Hot Stamping Machine
2. Model: EASY-308FAF
3. Max. Printing Area: 160mm
4. Max. Processing: 20mm
5. Control System: PLC + HMI;
6. Special Features: Asynchronous turbine cam drive, fully automatic 360° hot stamping on round tubes and pen barrels — automatic loading & unloading, non-damaging feeding, intelligent head-tail recognition and automatic reversing.
7. Typical Applications: Specially designed for 360° circumferential hot stamping on rigid plastic cylinders such as cosmetic tubes, pen barrels and candy tubes.
8. Power Supply/Total: 220V / 50Hz / 3000W
9. Air Pressure: 0.4 – 0.6 MPa

10. Dimensions/Weight: L 2.5 × W 1.2 × H 1.7m / 600kg
