Mini Flat Screen Printing Machine Rodless Cylinder

  • PRODUCT DETAIL
Mini Flat Screen Printing Machine Rodless Cylinder
1:Mode:MSP-2030TC
2:Print area:200*350mm
3:Max height of printing products: 100mm
4:transeversa stroke: 350MM
5:vertical stroke: 160MM
5.Maximum screen frame size: 50*30cm
6:worktable size: 250*450mm
7:Printing speed:1200pcs/hour
8:power:110V/200V 50W
9:Machine Size:93*74*87CM
10:Packing size: 104*98*84CM(L*W*H)
13.Volume weight:180KG

Features:

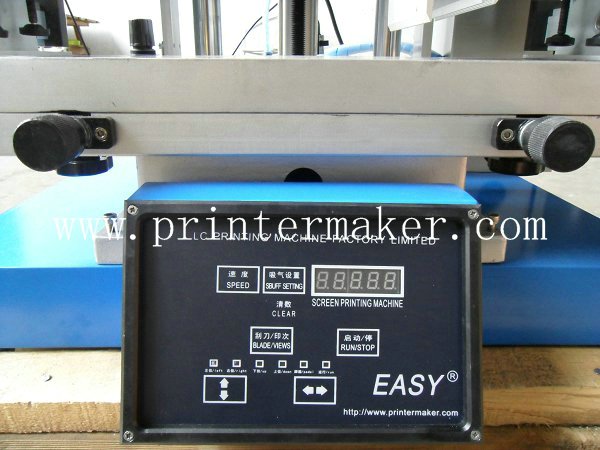

1. SCM IC coordinate light touching panel to complile action programming
2. Auto 4-digit counter built-in, counting printing quantity
3. Airframe adopts coin alloy,and metal coating surface
4. distyle vertical constructure, high precision, steady operation

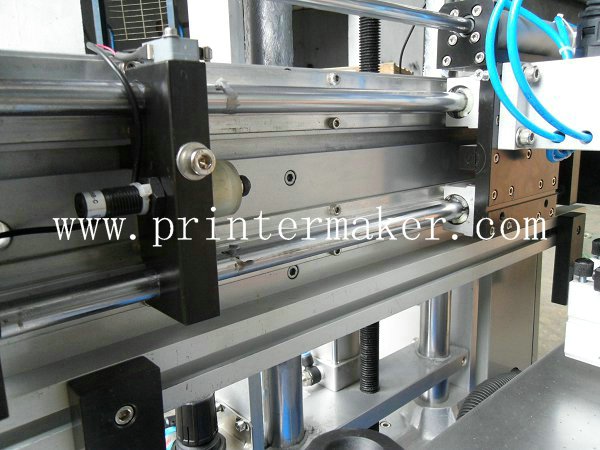

5. the transeversa stroke can be adjusted, spacing by Taiwan electronic switch

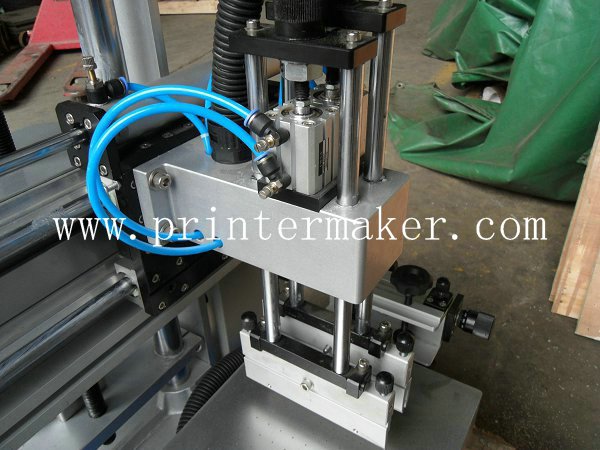

6. the angle of scraper and ink covering blades can be adjusted randomly
7. installing scraper constant pressure equipment to make sure pressure is steady when printing
8. you can regulate work-table back and forth or right and left, and then fastening it
9. you can regulate screen frame back and forth, right and left or level orientatio

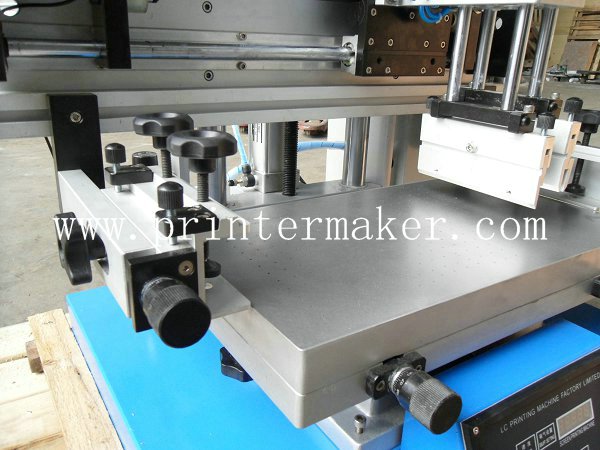

10. vacuum stainless steel worktable, it can absorb kinds of film products
11. installing CEC oil buffer on up and down, left and righ to avoid printing shock
12. The machine is running fastly, steably and lower noise.
13. Action model option: fully automatic | semi-automatic | manual
14. Start-up method:panel | foot switches
15. scraper pressure controller:by pressure regulating Valve

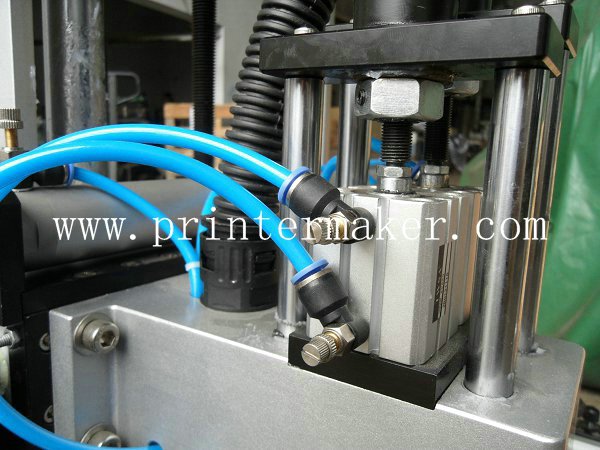

16. vertical driving style: pneumatic

Application:
This samll vacuum screen printi machine ,have two flat choce-one is use the T-solt falt and the other is use the vaccum falt.This machine has the features of quick speed,steady performance ,high precision,which can compose the production line in the small workshop or in samll space.The machine especially fit for use in the vc ,paper ,all kinds of wood,name card,eye glass,silica gel key-press screen print and so on
