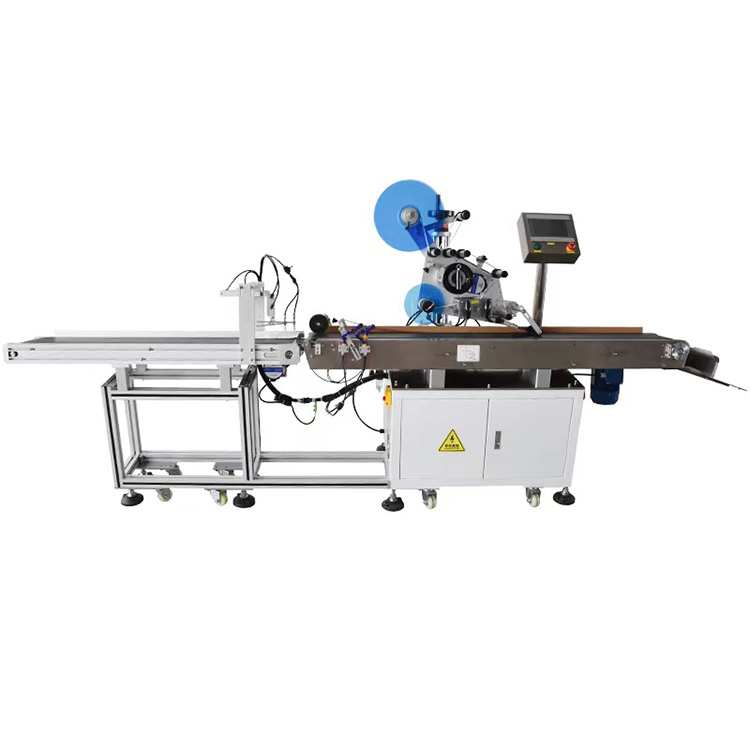

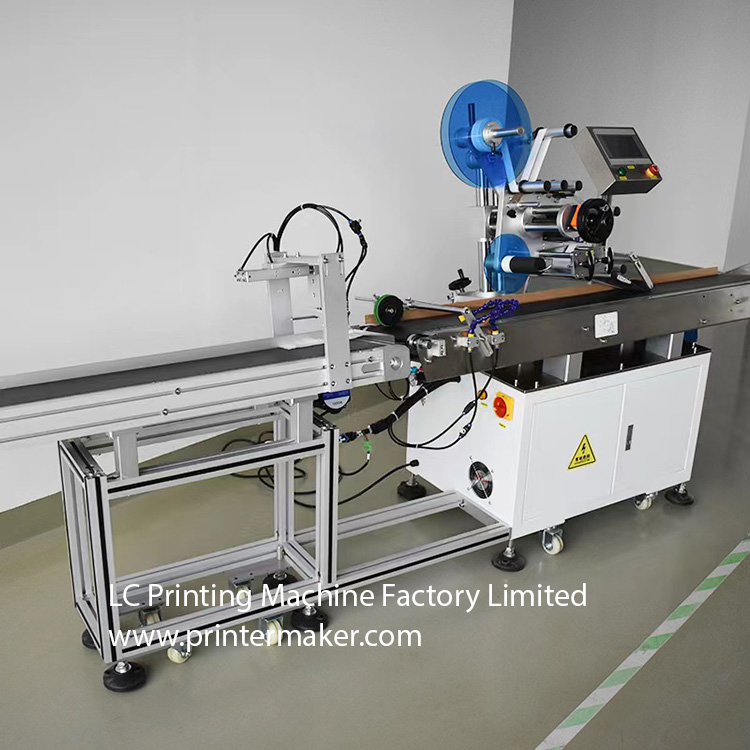

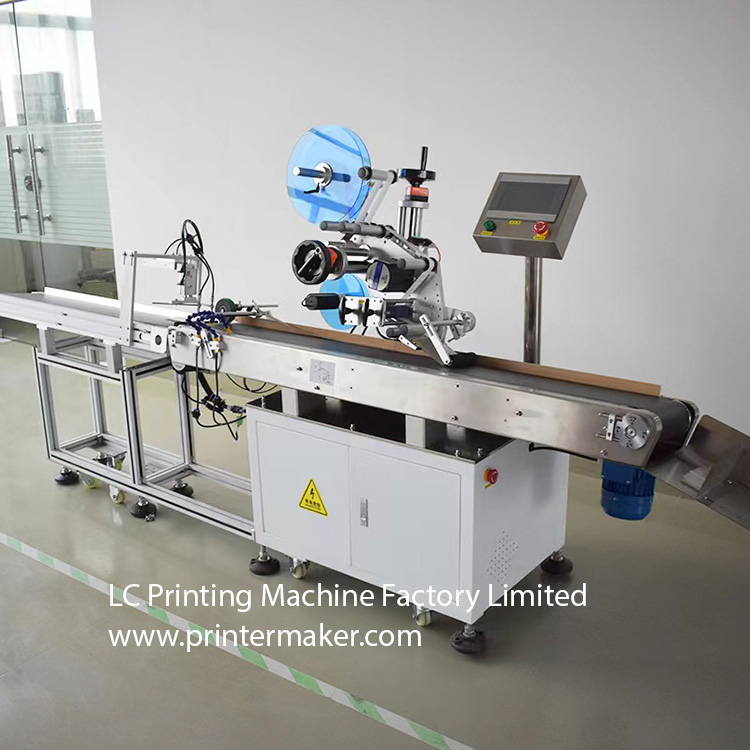

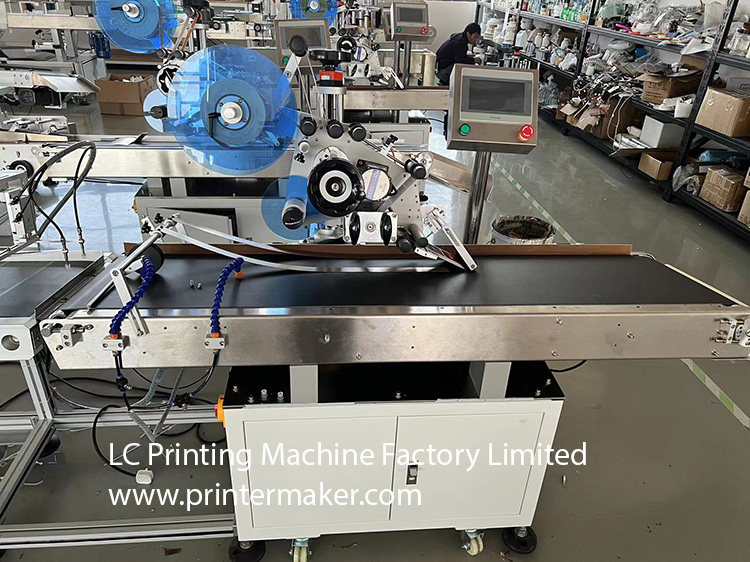

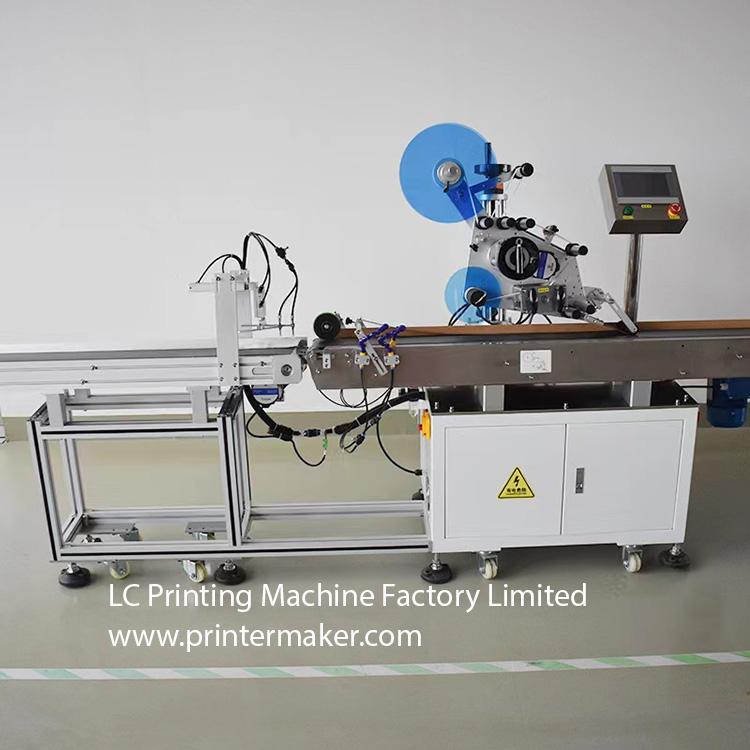

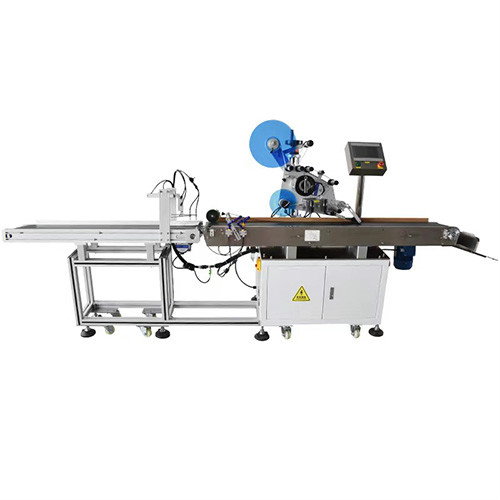

Bags Automatic Labeling Machine

Model Number: ALM-11500B
Product price: US$:negotiated
Category: Automatic Labeling Machine
Views: 1440

Product Description：Labeling Machine

PRODUCT DETAIL
Video

Product name:Bags Automatic Labeling Machine

Model Number: ALM-11500B

Parameters
1.Label width: 20-150mm
2.Label length:20-100mm
3.Products Diameter:
Length: 40mm-280mm
Width: 40mm-200mm
Height: 0.2mm-2mm
4.Max Outside diameter of label roll: φ280mm
5.Inside diameter of label roll: φ76mm
6.Max Labeling speed: 200pcs /min
7.Accuracy of labeling:±1mm
8.Power: 220V/110V 50/60Hz 1200W
9.Air Pressure: 4- 6 bar or 0.4 -0.6 Mpa
10.Machine Net Weihgt : 180KG
11.Machine Dimension: 2200mm x 700mm x 1450 mm
12.Packing Size:276*106*167CM
13.Gross Weight:230KG

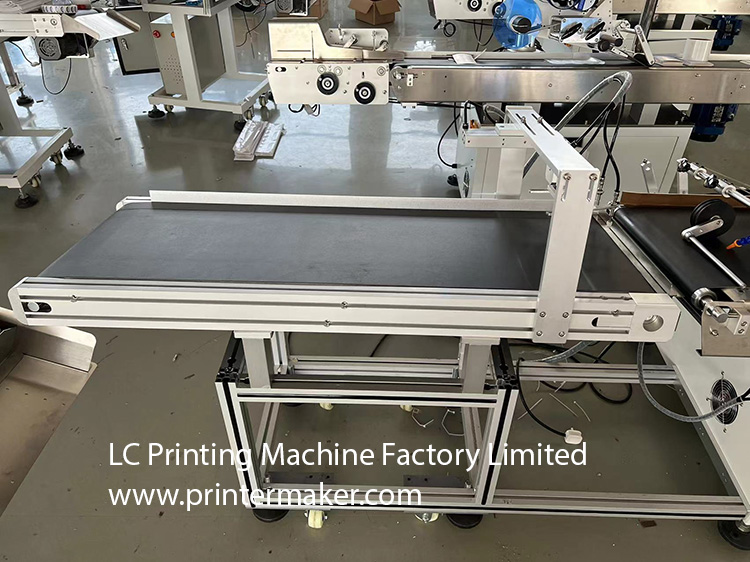

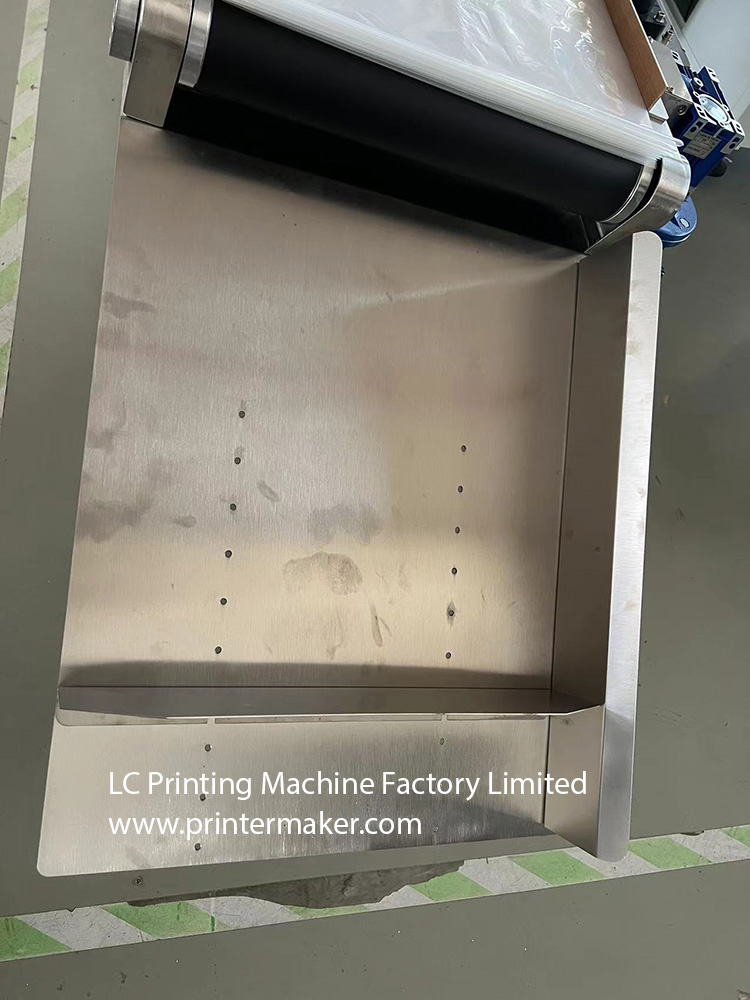

14: Feeder Parameter: Length：280mm width:40-200mm（adjustable；height:60mm )
Function:

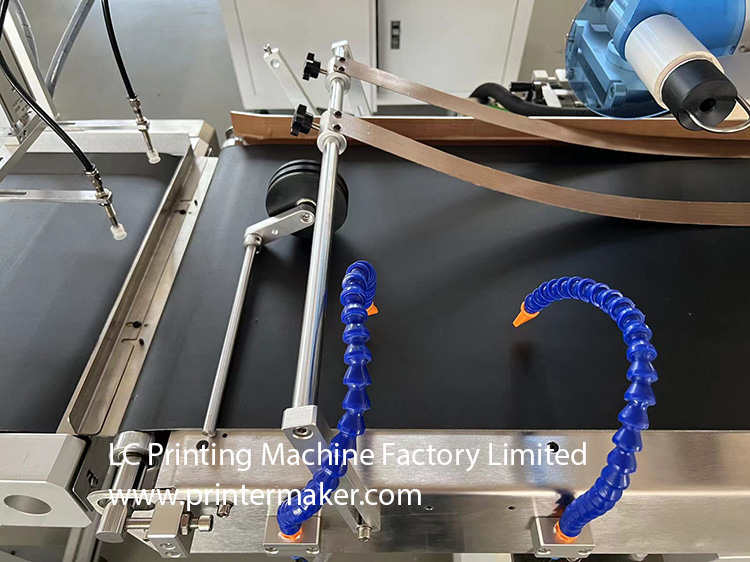

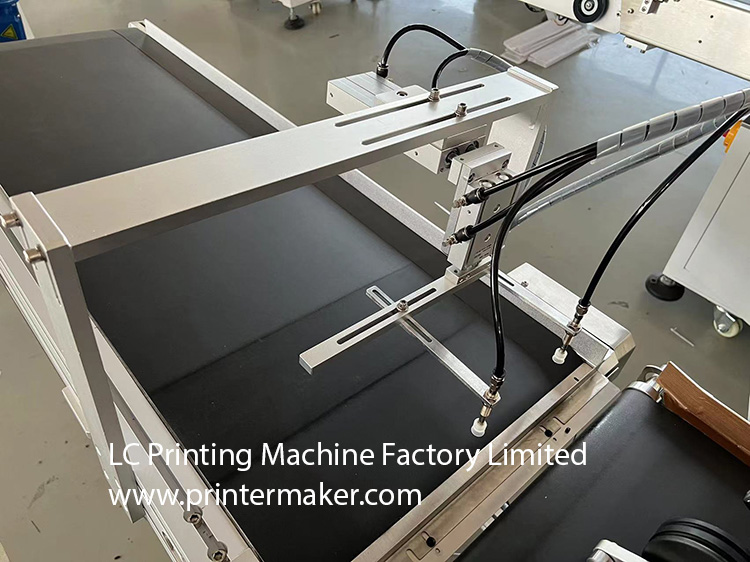

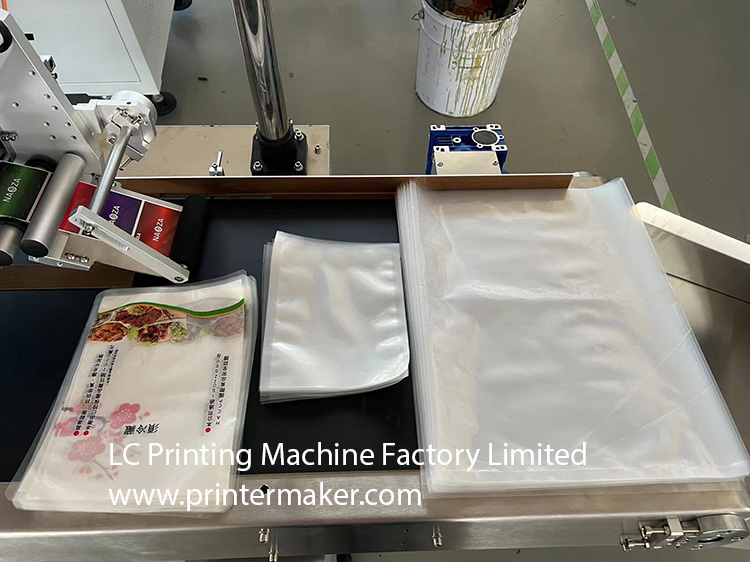

The labeling machine is by special designed, dedicated for the BOPP bags, plastic bags, food grade plastic bags, thin bag's automatic feeding and labeling. The separate auto sucker feeding system enjoys of perfect smooth and stability for feeding on those special thin bags.
